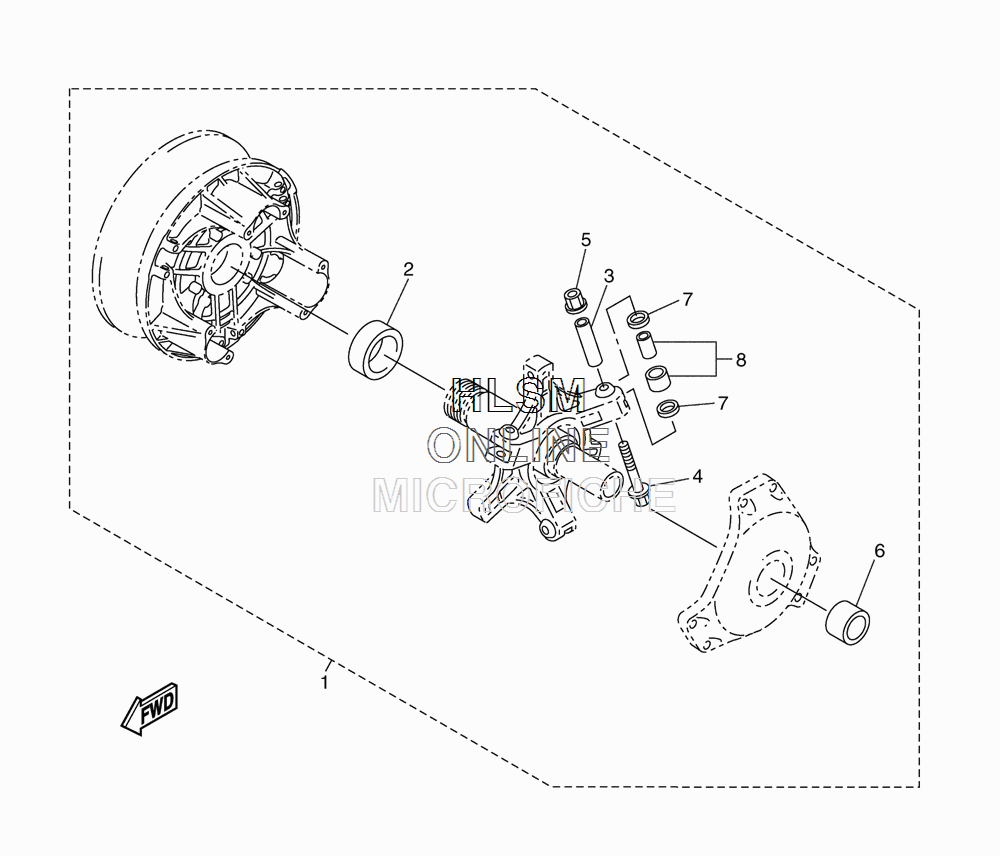

CLUTCH - TUNE-UP KIT (OPTION) для Yamaha APEX - 2013 года выпуска`
-
№АртикулНазвание
-
18ET-W176H-00-00 CLUTCH TUNE-UP KITCLUTCH TUNE-UP KIT
-
290384-41242-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
390387-0514U-00 ...COLLAR...COLLAR
-
490105-05644-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
595607-05200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
690380-28237-00 ...BUSH, SOLID...BUSH, SOLID
-
790202-09227-00 ...WASHER, PLATE...WASHER, PLATE
-
88FG-17624-00-00 ...ROLLER, COMP...ROLLER, COMP
