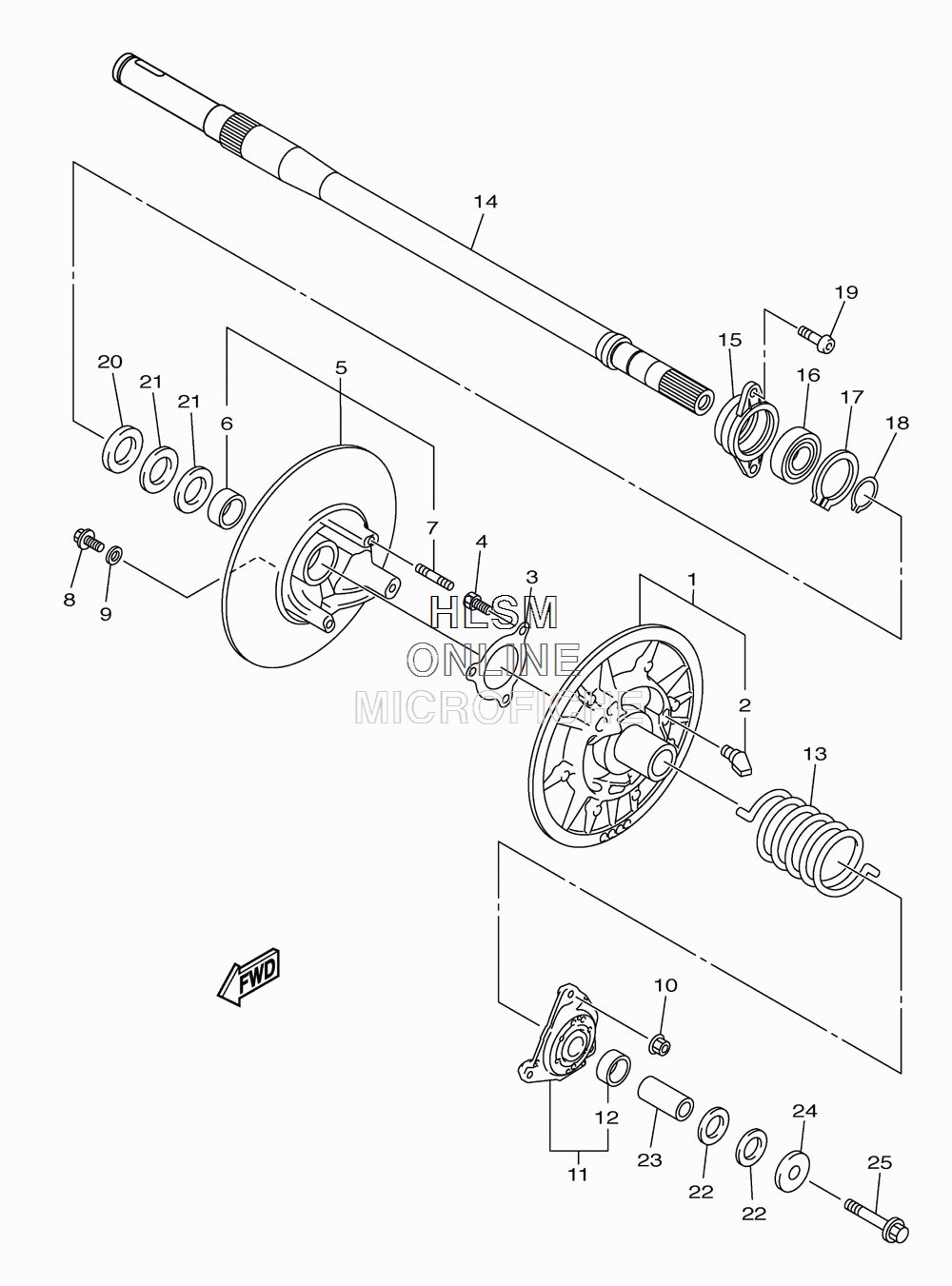

CLUTCH - DRIVEN W/ DRIVE AXLE для Yamaha APEX - 2013 года выпуска`
-
№АртикулНазвание
-
18ER-17660-30-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
28ER-17688-00-00 ...SHOE, RAMP...SHOE, RAMP
-
38BV-17656-00-00 STOPPER, HOLDERSTOPPER, HOLDER
-
490154-06062-00 SCREW, BINDINGSCREW, BINDING
-
58BU-17670-30-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
690384-38243-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
795617-08630-00 ...BOLT, STUD...BOLT, STUD
-
890105-06734-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990201-061H1-00 WASHER, PLATE (T=0.5)WASHER, PLATE (T=0.5)
-
990201-06037-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
1090179-08655-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
118FA-17604-00-00 SEAT SPRING SETSEAT SPRING SET
-
1290384-38243-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
1390508-60012-00 SPRING, TORSION (PINK)SPRING, TORSION (PINK)
-
148FR-17681-00-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
158FN-47631-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1693306-30579-00 BEARINGBEARING
-
1799009-62500-00 CIRCLIPCIRCLIP
-
1899009-25400-00 CIRCLIPCIRCLIP
-
1990149-08034-00 SCREWSCREW
-
2090201-25526-00 WASHER, PLATE (T2.0)WASHER, PLATE (T2.0)
-
2190201-25527-00 WASHER, PLATE (T1.0)WASHER, PLATE (T1.0)
-
2290201-222F0-00 WASHER, PLATE (T=0.5)WASHER, PLATE (T=0.5)
-
2290201-225A4-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
2390387-14019-00 COLLARCOLLAR
-
2490201-141A3-00 WASHER, PLATEWASHER, PLATE
-
2590105-14766-00 BOLT, WASHER BASEDBOLT, WASHER BASED
