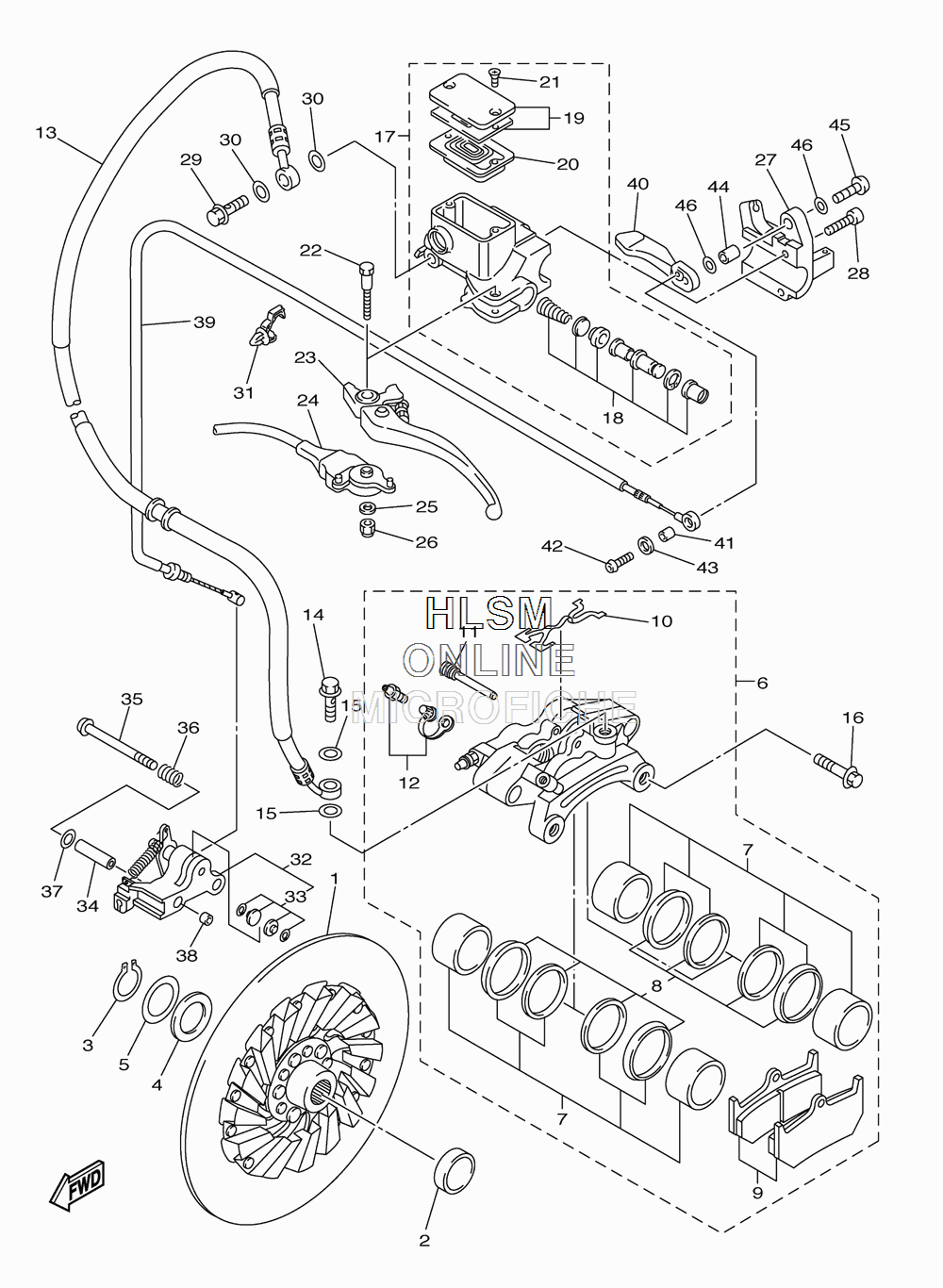

BRAKE ASSY для Yamaha APEX - 2013 года выпуска`
-
№АртикулНазвание
-
18GL-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290387-25021-00 COLLARCOLLAR
-
399009-22400-00 CIRCLIPCIRCLIP
-
490201-225A4-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
590201-222F0-00 WASHER, PLATE (T=0.5)WASHER, PLATE (T=0.5)
-
68FU-2580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
78FU-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
83JD-W0047-10-00 .....CALIPER SEAL KIT.....CALIPER SEAL KIT
-
98FU-W0046-01-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
108FU-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
118FU-25924-00-00 ...PIN, PAD...PIN, PAD
-
128CR-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
138GT-25872-20-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1490401-10015-00 BOLT, UNIONBOLT, UNION
-
1590201-10118-00 WASHER, PLATEWASHER, PLATE
-
1690105-10096-00 BOLT, FLANGEBOLT, FLANGE
-
178FA-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
188CR-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
198CR-W2585-00-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
2055U-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
2198706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
228CR-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
238DN-83912-00-00 LEVER 1LEVER 1
-
248FP-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
258CR-8398X-00-00 WASHER, PLATEWASHER, PLATE
-
2695707-05300-00 NUT, FLANGENUT, FLANGE
-
278FA-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
285YU-26332-00-00 BOLTBOLT
-
2990401-10015-00 BOLT, UNIONBOLT, UNION
-
3090201-10118-00 WASHER, PLATEWASHER, PLATE
-
3190464-14012-00 CLAMPCLAMP
-
328FU-25970-01-00 PARKING BRAKE COMP.PARKING BRAKE COMP.
-
338FA-W0045-00-00 ...PARKING BRAKE PAD KIT...PARKING BRAKE PAD KIT
-
3490387-06058-00 COLLARCOLLAR
-
3590111-06048-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3690501-120A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3790201-12161-00 WASHER, PLATEWASHER, PLATE
-
3890387-06085-00 COLLARCOLLAR
-
398FP-26351-10-00 CABLE, BRAKECABLE, BRAKE
-
408FA-83922-00-00 LEVER 2LEVER 2
-
4190387-06043-00 COLLARCOLLAR
-
4292017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4390201-06050-00 WASHER, PLATEWASHER, PLATE
-
4490387-081M9-00 COLLARCOLLAR
-
4590111-08054-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4690201-08403-00 WASHER, PLATEWASHER, PLATE
