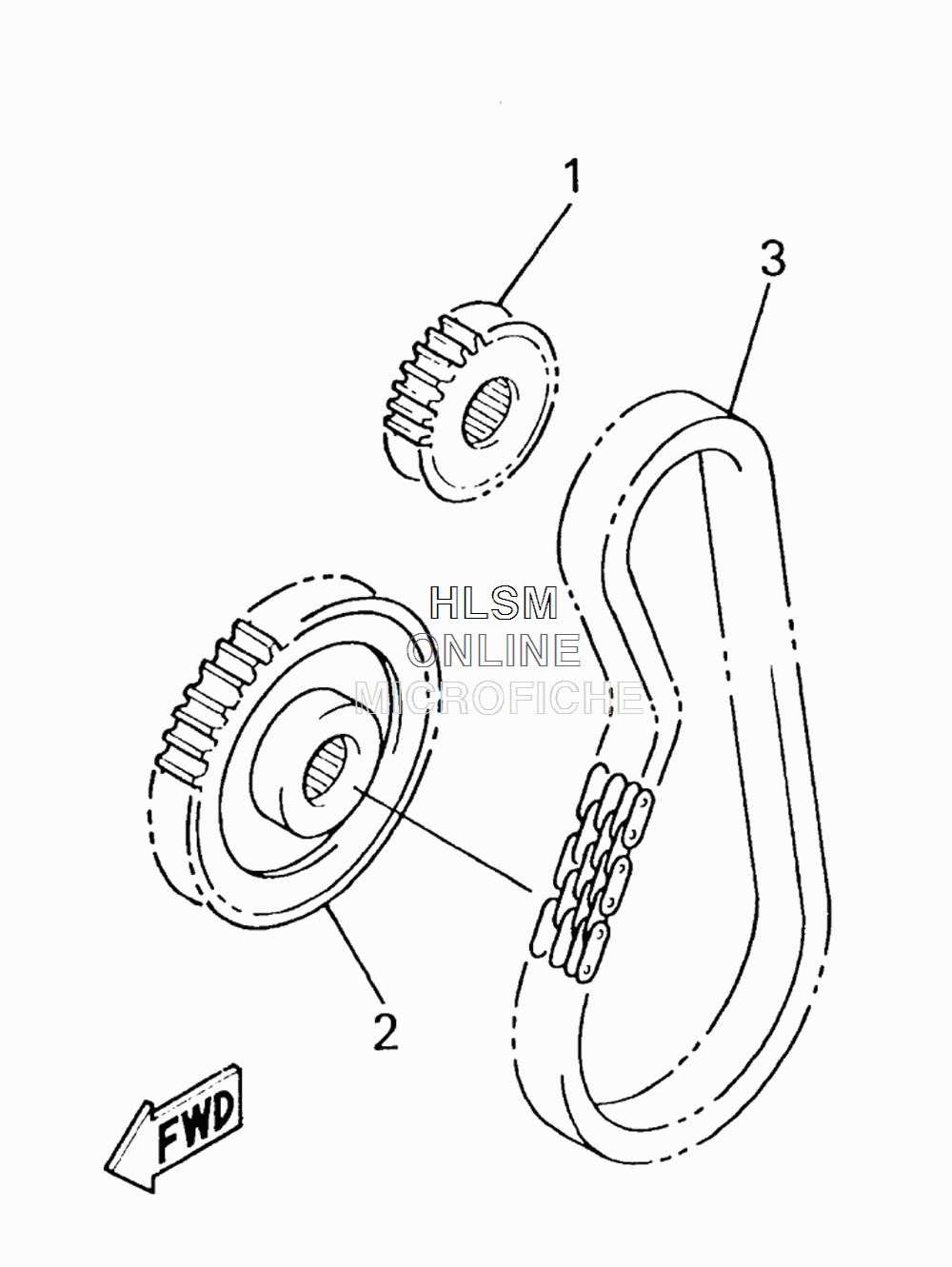

CHAINCASE - SPROCKET AND CHAINS (OPTION) для Yamaha APEX XTX - 2013 года выпуска`
-
№АртикулНазвание
-
18FA-17682-40-00 SPROCKET, CHAIN DRIVE (24T)SPROCKET, CHAIN DRIVE (24T)
-
18FA-17682-10-00 SPROCKET, CHAIN DRIVE (21T)SPROCKET, CHAIN DRIVE (21T)
-
18FA-17682-00-00 SPROCKET, CHAIN DRIVE (20T)SPROCKET, CHAIN DRIVE (20T)
-
18FA-17682-20-00 SPROCKET, CHAIN DRIVE (22T)SPROCKET, CHAIN DRIVE (22T)
-
18FA-17682-30-00 SPROCKET, CHAIN DRIVE (23T)SPROCKET, CHAIN DRIVE (23T)
-
18FA-17682-90-00 SPROCKET, CHAIN DRIVE (19T)SPROCKET, CHAIN DRIVE (19T)
-
18FA-17682-80-00 SPROCKET, CHAIN DRIVE (18T) (STD)SPROCKET, CHAIN DRIVE (18T) (STD)
-
28FB-47587-80-00 SPROCKET, CHAIN DRIVEN (38T)SPROCKET, CHAIN DRIVEN (38T)
-
28FB-47587-70-00 SPROCKET, CHAIN DRIVEN (37T)SPROCKET, CHAIN DRIVEN (37T)
-
28FB-47587-90-00 SPROCKET, CHAIN DRIVEN (39T)SPROCKET, CHAIN DRIVEN (39T)
-
28FB-47587-00-00 SPROCKET, CHAIN DRIVEN (40T) (STD)SPROCKET, CHAIN DRIVEN (40T) (STD)
-
394890-09070-00 CHAIN (70L) BORG WARNCHAIN (70L) BORG WARN
-
394890-09068-00 CHAIN (68L) BORG WARN (STD)CHAIN (68L) BORG WARN (STD)
