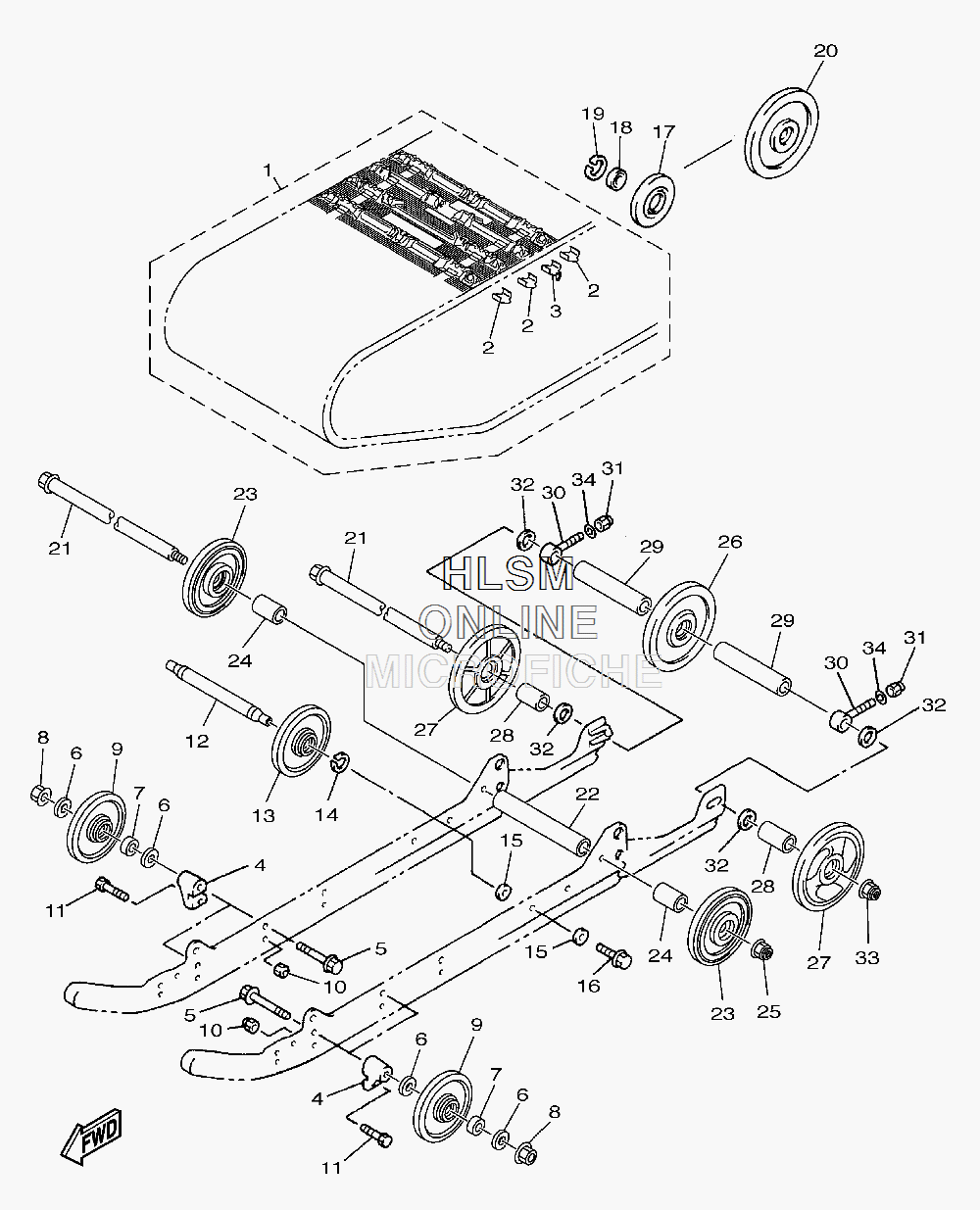

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha VK PRO - 2012 года выпуска`
-
№АртикулНазвание
-
18FN-47110-01-00 TRACK ASSYTRACK ASSY
-
28HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
48CM-47419-10-00 BRACKET 7BRACKET 7
-
595817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
690201-100S0-00 WASHER, PLATEWASHER, PLATE
-
790387-10031-00 COLLARCOLLAR
-
895604-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
98ES-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
1095607-08200-00 .NUT, SELF-LOCKING.NUT, SELF-LOCKING
-
1190101-08774-00 BOLTBOLT
-
128FN-47486-00-00 SHAFT 4SHAFT 4
-
138ES-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
1499009-25400-00 CIRCLIPCIRCLIP
-
1590201-100L3-00 WASHER, PLATEWASHER, PLATE
-
1690105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
178AC-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
1893306-00444-00 BEARINGBEARING
-
1999009-42500-00 CIRCLIPCIRCLIP
-
208AC-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
2183R-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
2283R-47469-00-00 COLLAR 1COLLAR 1
-
238FM-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2490387-203H0-00 COLLARCOLLAR
-
2595607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
268CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
278EK-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
2890387-20022-00 COLLARCOLLAR
-
2990387-20023-00 COLLARCOLLAR
-
308DM-47479-00-00 COLLAR 3COLLAR 3
-
3195707-10300-00 NUT, NYLONNUT, NYLON
-
3290201-205R6-00 WASHER, PLATEWASHER, PLATE
-
3395607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3492907-10600-00 WASHER, PLATEWASHER, PLATE
-
18FN-47110-01-00 TRACK ASSYTRACK ASSY
-
28HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
48CM-47419-10-00 BRACKET 7BRACKET 7
-
595817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
690201-100S0-00 WASHER, PLATEWASHER, PLATE
-
790387-10031-00 COLLARCOLLAR
-
895604-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
98ES-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
1095607-08200-00 .NUT, SELF-LOCKING.NUT, SELF-LOCKING
-
1190101-08774-00 BOLTBOLT
-
128FN-47486-00-00 SHAFT 4SHAFT 4
-
138ES-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
1499009-25400-00 CIRCLIPCIRCLIP
-
1590201-100L3-00 WASHER, PLATEWASHER, PLATE
-
1690105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
178AC-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
1893306-00444-00 BEARINGBEARING
-
1999009-42500-00 CIRCLIPCIRCLIP
-
208AC-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
2183R-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
2283R-47469-00-00 COLLAR 1COLLAR 1
-
238FM-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2490387-203H0-00 COLLARCOLLAR
-
2595607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
268CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
278EK-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
2890387-20022-00 COLLARCOLLAR
-
2990387-20023-00 COLLARCOLLAR
-
308DM-47479-00-00 COLLAR 3COLLAR 3
-
3195707-10300-00 NUT, NYLONNUT, NYLON
-
3290201-205R6-00 WASHER, PLATEWASHER, PLATE
-
3395607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3492907-10600-00 WASHER, PLATEWASHER, PLATE
