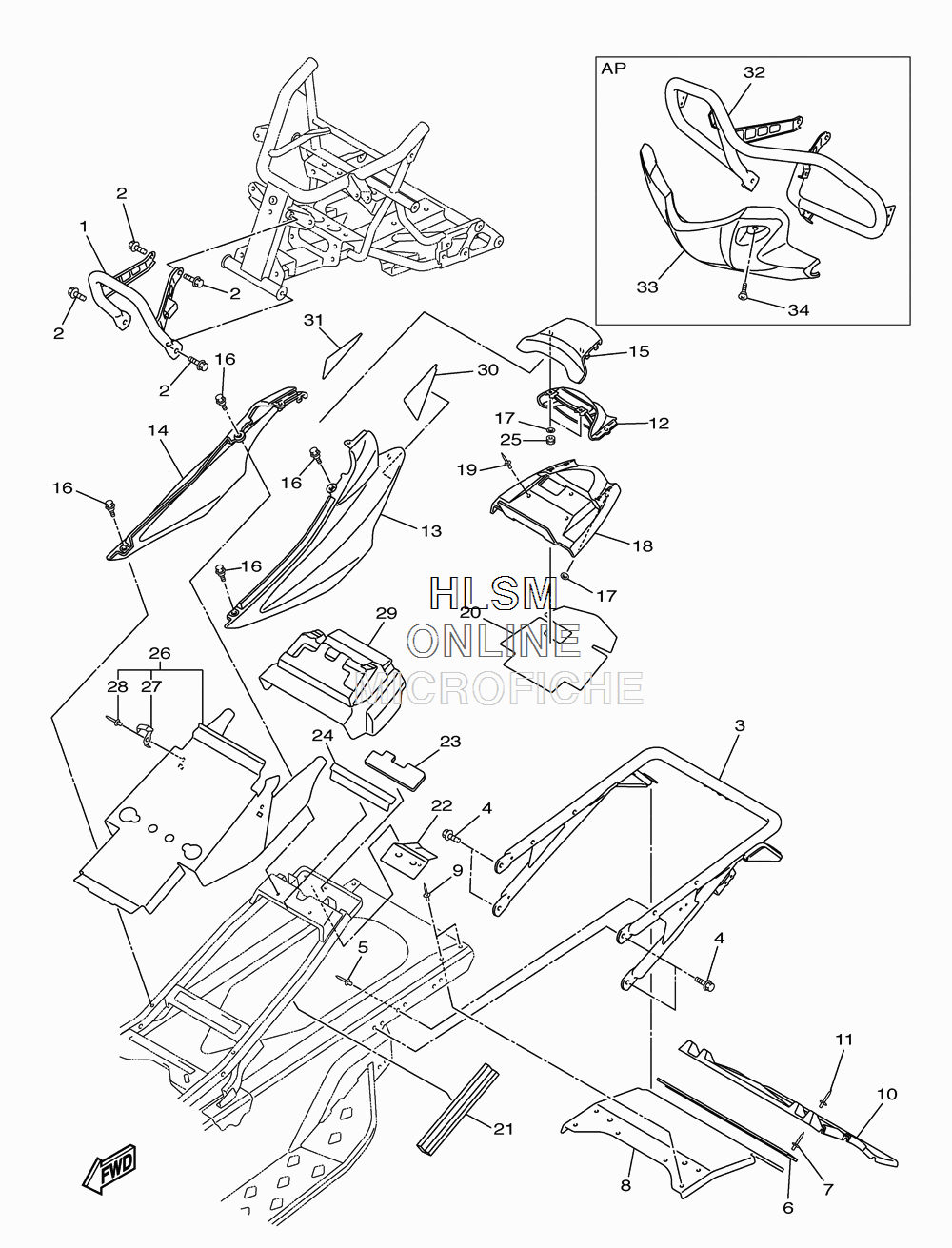

BUMPER - FRONT AND REAR для Yamaha PHAZER RTX - 2012 года выпуска`
-
№АртикулНазвание
-
18GC-77511-10-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38GK-77541-10-00 BUMPER, REAR 1BUMPER, REAR 1
-
495822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
590267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
68GC-77596-00-00 STOPPER, FLAPSTOPPER, FLAP
-
790267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
88GC-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
990267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
108GT-K7595-00-00 FLAPFLAP
-
1190267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
128GC-84516-01-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
138GC-77551-40-00 PROTECTOR 1PROTECTOR 1
-
148GC-77552-40-00 PROTECTOR 2PROTECTOR 2
-
158GC-77553-40-00 PROTECTOR 3PROTECTOR 3
-
1690109-06220-00 BOLTBOLT
-
1790183-06011-00 NUT, SPRINGNUT, SPRING
-
188GC-2117E-01-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
1990267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
208GC-2112B-00-00 SEAT 1SEAT 1
-
218GC-2113C-00-00 SHEET,2SHEET,2
-
228GC-77557-00-00 PROTECTOR 7PROTECTOR 7
-
238GC-8258K-00-00 INSULATOR 1INSULATOR 1
-
248GC-8259K-00-00 INSULATOR 2INSULATOR 2
-
2590480-11454-00 GROMMETGROMMET
-
268GC-77555-00-00 PROTECTOR 5PROTECTOR 5
-
2790462-08224-00 ...CLAMP...CLAMP
-
2890267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
298GC-77556-00-00 PROTECTOR 6PROTECTOR 6
-
308GC-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
318GC-77562-00-00 PROTECTOR, SIDE 2PROTECTOR, SIDE 2
-
328GR-77511-10-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
338GR-77555-00-00 PROTECTOR 5PROTECTOR 5
-
3490149-06263-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
