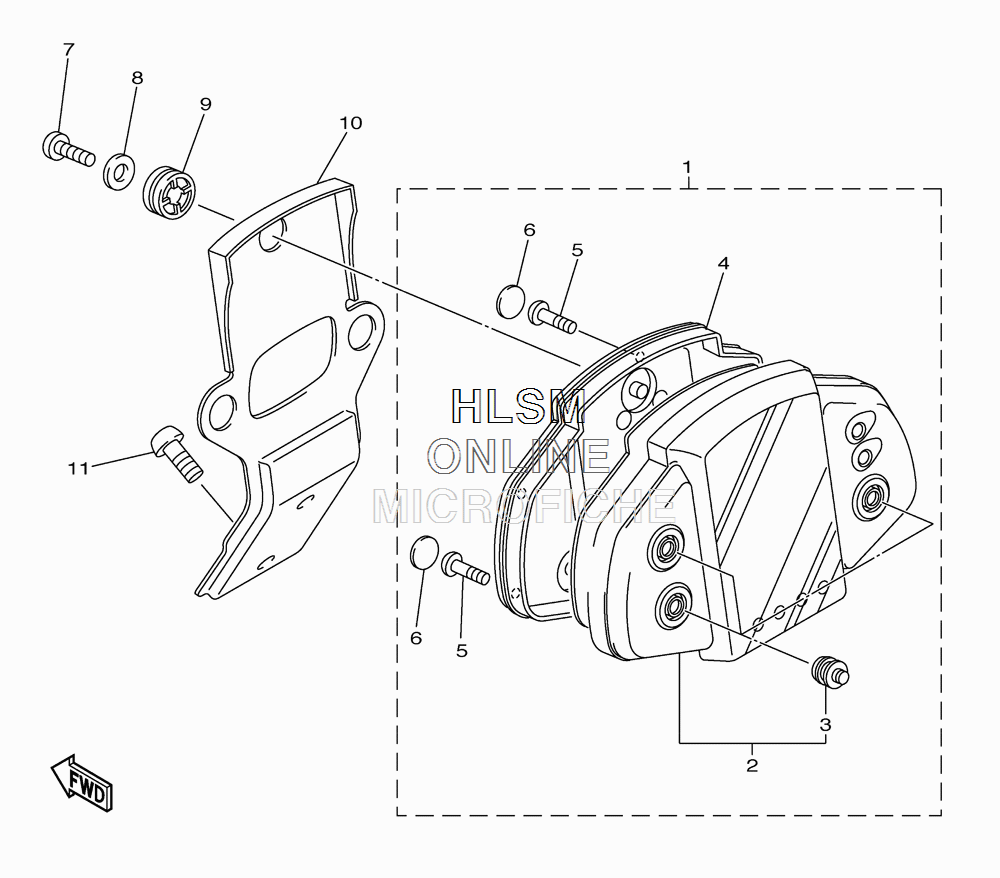

ELECTRICAL - INSTRUMENTS для Yamaha PHAZER MTX - 2012 года выпуска`
-
№АртикулНазвание
-
18GP-83500-20-00 SPEEDOMETER COMPLETE (MPH)SPEEDOMETER COMPLETE (MPH)
-
28GK-W835E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
38GL-8357U-00-00 ......RUBBER, SWITCH......RUBBER, SWITCH
-
48GC-W8357-00-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
55PW-8352S-00-00 ...SCREW, PANEL FTTING...SCREW, PANEL FTTING
-
68GC-21732-00-00 ...SEAL 1...SEAL 1
-
797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
890201-05725-00 WASHER, PLATEWASHER, PLATE
-
98GC-83513-00-00 DAMPERDAMPER
-
108GC-83519-00-00 BRACKET, METERBRACKET, METER
-
1192012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
