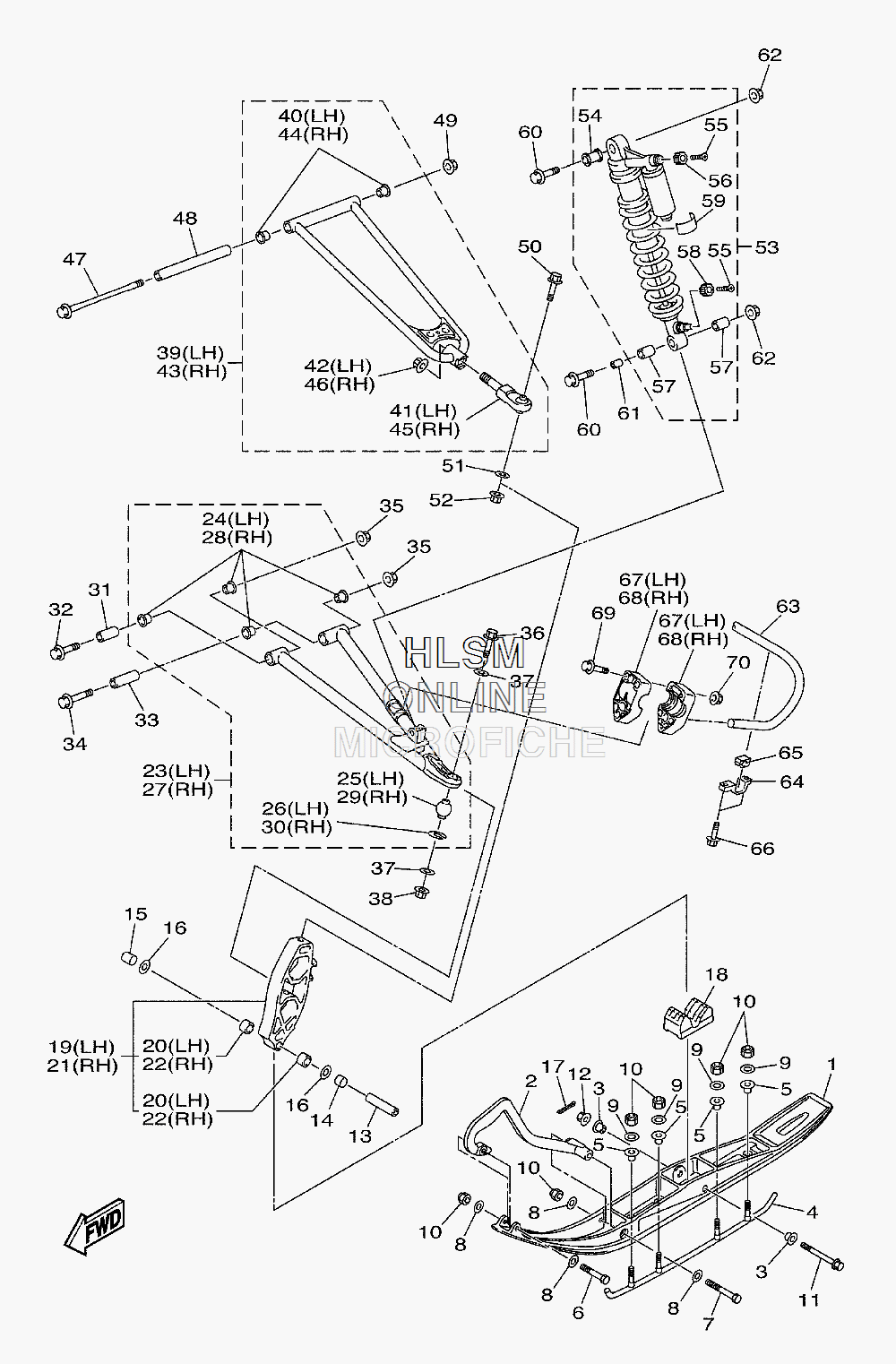

SUSPENSION - FRONT W/ SKI ASSY для Yamaha PHAZER GT - 2012 года выпуска
-
№АртикулНазвание
-
18EX-F3711-00-00 SKI 1, BLACKSKI 1, BLACK
-
28DM-F3712-00-00 BLACK 8DM HANDLE PLASTICBLACK 8DM HANDLE PLASTIC
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48GK-F3731-00-00 SKI RUNNER KITSKI RUNNER KIT
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
68HG-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
78HG-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
88HG-F3737-00-00 WASHER 1WASHER 1
-
98HG-F3738-00-00 WASHER 2WASHER 2
-
108HG-F3778-00-00 NUTNUT
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1390387-1012H-00 COLLARCOLLAR
-
1490387-16017-00 COLLARCOLLAR
-
1590387-16018-00 COLLARCOLLAR
-
1690201-16022-00 WASHER, PLATEWASHER, PLATE
-
1791401-20020-00 PIN, COTTERPIN, COTTER
-
188GK-23743-00-00 STOPPER 1STOPPER 1
-
198GK-23501-01-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2090384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
218GK-23502-01-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2290384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
238GK-23570-C0-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
2490381-16003-00 ...BUSH, SOLID...BUSH, SOLID
-
258GK-23579-01-00 ...BALL JOINT 2...BALL JOINT 2
-
2699009-35700-00 ...CIRCLIP...CIRCLIP
-
278GK-23580-C0-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
2890381-16003-00 ...BUSH, SOLID...BUSH, SOLID
-
298GK-23579-01-00 ...BALL JOINT 2...BALL JOINT 2
-
3099009-35700-00 ...CIRCLIP...CIRCLIP
-
3190387-10093-00 COLLARCOLLAR
-
3290105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
3390387-10074-00 COLLARCOLLAR
-
3490105-10212-00 BOLT, FLANGEBOLT, FLANGE
-
3595602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
3690105-10210-00 BOLT, FLANGEBOLT, FLANGE
-
3790201-10051-00 WASHER, PLATEWASHER, PLATE
-
3895602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
398GK-23540-C0-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
4090381-15003-00 ...BUSH, SOLID...BUSH, SOLID
-
418GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4295602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
438GK-23550-C0-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
4490381-15003-00 ...BUSH, SOLID...BUSH, SOLID
-
458GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4695602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4790105-10213-00 BOLT, FLANGEBOLT, FLANGE
-
4890387-10073-00 COLLARCOLLAR
-
4995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
5091312-10045-00 BOLTBOLT
-
5190201-10052-00 WASHER, PLATEWASHER, PLATE
-
5295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
538GK-2376A-50-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
548GN-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
5590142-03N01-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
565EA-22464-00-00 ...KNOB (COMP)...KNOB (COMP)
-
5790384-15N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
585JW-2319W-00-00 ...KNOB (TEN)...KNOB (TEN)
-
594AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
6095812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
6190387-10024-00 COLLARCOLLAR
-
6295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
638GK-2386E-10-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
648GK-2386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
658GK-2386G-10-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
6695812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
678GK-2385L-10-00 JOINT, STABILIZER 1 (LEFT HAND)JOINT, STABILIZER 1 (LEFT HAND)
-
688GK-2385M-10-00 JOINT, STABILIZER 2 (RIGHT HAND)JOINT, STABILIZER 2 (RIGHT HAND)
-
6995812-06040-00 BOLT, FLANGEBOLT, FLANGE
-
7095602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
