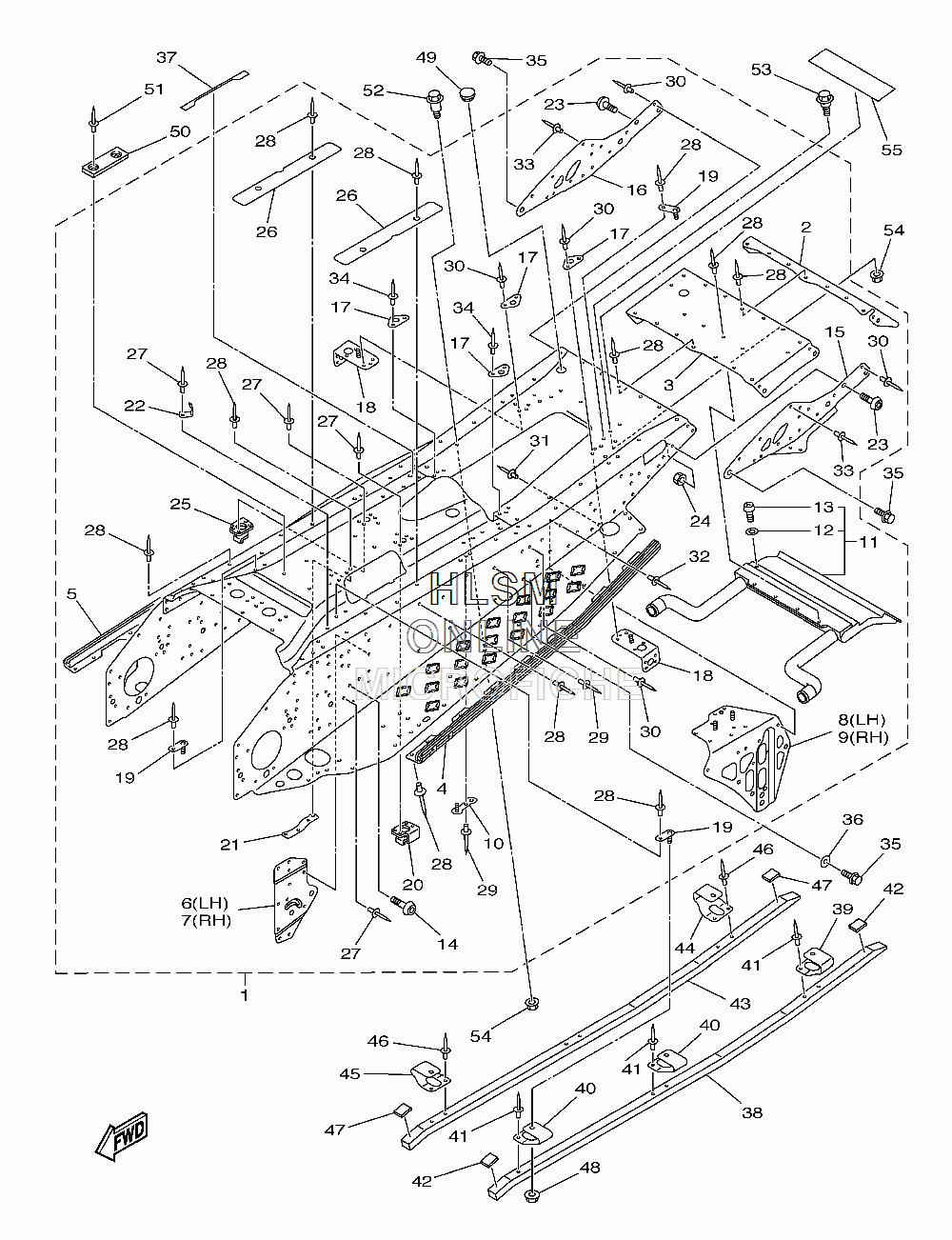

TUNNEL EXTENSION ASSEMBLY для Yamaha APEX XTX - 2012 года выпуска`
-
№АртикулНазвание
-
18HN-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
28HG-21923-00-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
38HN-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
48FG-21926-00-00 ...REINFORCEMENT, FOOTREST 1 (LEFT HAND)...REINFORCEMENT, FOOTREST 1 (LEFT HAND)
-
58FG-21936-00-00 ...REINFORCEMENT, FOOTREST 2 (RIGHT HAND)...REINFORCEMENT, FOOTREST 2 (RIGHT HAND)
-
68HN-21943-00-00 ...BRACKET, MAIN TRACK 1 (LEFT HAND)...BRACKET, MAIN TRACK 1 (LEFT HAND)
-
78HN-21953-00-00 ...BRACKET, MAIN TRACK 2 (RIGHT HAND)...BRACKET, MAIN TRACK 2 (RIGHT HAND)
-
88HN-21944-00-00 ...BRACKET, REAR TRACK SUSPENSION (LEFT HAND)...BRACKET, REAR TRACK SUSPENSION (LEFT HAND)
-
98HN-21954-00-00 ...BRACKET, REAR TRACK SUSPENSION (RIGHT HAND)...BRACKET, REAR TRACK SUSPENSION (RIGHT HAND)
-
108HG-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
118HN-1241A-00-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
1290210-06006-00 ......WASHER, SEAL......WASHER, SEAL
-
1398502-06012-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
1492012-10020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
158HG-21928-00-00 ...REINF., SUB FRAME 1...REINF., SUB FRAME 1
-
168HG-21938-00-00 ...REINF., SUB FRAME 2...REINF., SUB FRAME 2
-
178HG-22168-00-00 ...PATCH...PATCH
-
188HG-2162G-00-00 ...PLATE 1...PLATE 1
-
198HG-2251A-00-00 ...BRACKET 9...BRACKET 9
-
208HG-14791-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
218HG-21961-00-00 ...PATCH 1...PATCH 1
-
2290465-08370-00 ...CLAMP...CLAMP
-
2392012-08016-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2495702-08500-00 ...NUT, FLANGE...NUT, FLANGE
-
258HG-14792-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
268HG-2214F-00-00 ...DAMPER 1...DAMPER 1
-
2790267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
2890267-48023-00 ...RIVET, BLIND (4.8X12.1 YELLOW)...RIVET, BLIND (4.8X12.1 YELLOW)
-
2990267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
3090267-48016-00 ...RIVET, BLIND (4.8X16.4 YELLOW)...RIVET, BLIND (4.8X16.4 YELLOW)
-
3190267-48010-00 ...RIVET, BLIND (4.8X12 YELLOW)...RIVET, BLIND (4.8X12 YELLOW)
-
3290267-48083-00 ...RIVET, BLIND (4.8X15.2 SILVER)...RIVET, BLIND (4.8X15.2 SILVER)
-
3390267-48015-00 ...RIVET, BLIND...RIVET, BLIND
-
3490267-48176-00 ...RIVET, BLIND (4.8X17 YELLOW)...RIVET, BLIND (4.8X17 YELLOW)
-
3595812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
3690201-10038-00 WASHER, PLATEWASHER, PLATE
-
378HG-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
388HN-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
398HG-2196G-00-00 BRACKET 4BRACKET 4
-
408HG-2197N-00-00 BRACKET 7BRACKET 7
-
4190267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
428HG-21852-00-00 DAMPERDAMPER
-
438HN-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
448HG-2196G-00-00 BRACKET 4BRACKET 4
-
458HG-2197N-00-00 BRACKET 7BRACKET 7
-
4690267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
478HG-21852-00-00 DAMPERDAMPER
-
4895602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4990338-20007-00 PLUGPLUG
-
508FA-21998-00-00 SPACERSPACER
-
5190267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
5290109-06241-00 BOLTBOLT
-
5390109-06220-00 BOLTBOLT
-
5495702-06500-00 NUT, FLANGENUT, FLANGE
-
558HA-77762-E0-00 LABEL, WARNING 2LABEL, WARNING 2
-
18HN-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
28HG-21923-00-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
38HN-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
48FG-21926-00-00 ...REINFORCEMENT, FOOTREST 1 (LEFT HAND)...REINFORCEMENT, FOOTREST 1 (LEFT HAND)
-
58FG-21936-00-00 ...REINFORCEMENT, FOOTREST 2 (RIGHT HAND)...REINFORCEMENT, FOOTREST 2 (RIGHT HAND)
-
68HN-21943-00-00 ...BRACKET, MAIN TRACK 1 (LEFT HAND)...BRACKET, MAIN TRACK 1 (LEFT HAND)
-
78HN-21953-00-00 ...BRACKET, MAIN TRACK 2 (RIGHT HAND)...BRACKET, MAIN TRACK 2 (RIGHT HAND)
-
88HN-21944-00-00 ...BRACKET, REAR TRACK SUSPENSION (LEFT HAND)...BRACKET, REAR TRACK SUSPENSION (LEFT HAND)
-
98HN-21954-00-00 ...BRACKET, REAR TRACK SUSPENSION (RIGHT HAND)...BRACKET, REAR TRACK SUSPENSION (RIGHT HAND)
-
108HG-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
118HN-1241A-00-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
1290210-06006-00 ......WASHER, SEAL......WASHER, SEAL
-
1398502-06012-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
1492012-10020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
158HG-21928-00-00 ...REINF., SUB FRAME 1...REINF., SUB FRAME 1
-
168HG-21938-00-00 ...REINF., SUB FRAME 2...REINF., SUB FRAME 2
-
178HG-22168-00-00 ...PATCH...PATCH
-
188HG-2162G-00-00 ...PLATE 1...PLATE 1
-
198HG-2251A-00-00 ...BRACKET 9...BRACKET 9
-
208HG-14791-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
218HG-21961-00-00 ...PATCH 1...PATCH 1
-
2290465-08370-00 ...CLAMP...CLAMP
-
2392012-08016-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2495702-08500-00 ...NUT, FLANGE...NUT, FLANGE
-
258HG-14792-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
268HG-2214F-00-00 ...DAMPER 1...DAMPER 1
-
2790267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
2890267-48023-00 ...RIVET, BLIND (4.8X12.1 YELLOW)...RIVET, BLIND (4.8X12.1 YELLOW)
-
2990267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
3090267-48016-00 ...RIVET, BLIND (4.8X16.4 YELLOW)...RIVET, BLIND (4.8X16.4 YELLOW)
-
3190267-48010-00 ...RIVET, BLIND (4.8X12 YELLOW)...RIVET, BLIND (4.8X12 YELLOW)
-
3290267-48083-00 ...RIVET, BLIND (4.8X15.2 SILVER)...RIVET, BLIND (4.8X15.2 SILVER)
-
3390267-48015-00 ...RIVET, BLIND...RIVET, BLIND
-
3490267-48176-00 ...RIVET, BLIND (4.8X17 YELLOW)...RIVET, BLIND (4.8X17 YELLOW)
-
3595812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
3690201-10038-00 WASHER, PLATEWASHER, PLATE
-
378HG-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
388HN-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
398HG-2196G-00-00 BRACKET 4BRACKET 4
-
408HG-2197N-00-00 BRACKET 7BRACKET 7
-
4190267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
428HG-21852-00-00 DAMPERDAMPER
-
438HN-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
448HG-2196G-00-00 BRACKET 4BRACKET 4
-
458HG-2197N-00-00 BRACKET 7BRACKET 7
-
4690267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
478HG-21852-00-00 DAMPERDAMPER
-
4895602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4990338-20007-00 PLUGPLUG
-
508FA-21998-00-00 SPACERSPACER
-
5190267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
5290109-06241-00 BOLTBOLT
-
5390109-06220-00 BOLTBOLT
-
5495702-06500-00 NUT, FLANGENUT, FLANGE
-
558HA-77762-E0-00 LABEL, WARNING 2LABEL, WARNING 2
