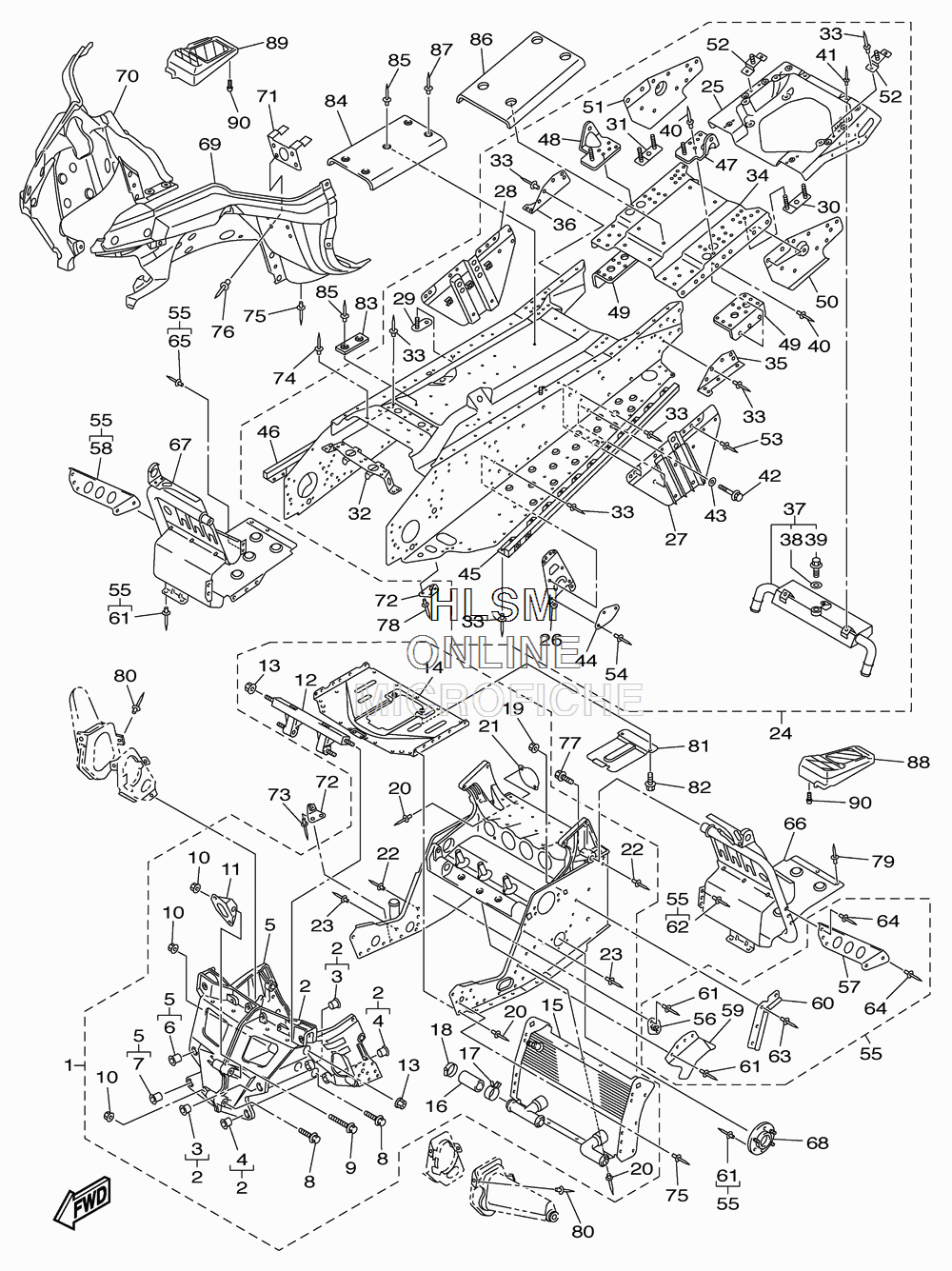

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RS VENTURE - 2011 года выпуска`
-
№АртикулНазвание
-
18ET-21940-20-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-13-00 BULKHEADBULKHEAD
-
390381-15001-00 BUSH, SOLIDBUSH, SOLID
-
490381-16004-00 BUSH, SOLIDBUSH, SOLID
-
58FA-W2198-13-00 BULKHEAD 2BULKHEAD 2
-
690381-15001-00 BUSH, SOLIDBUSH, SOLID
-
790381-16004-00 BUSH, SOLIDBUSH, SOLID
-
895827-08060-00 BOLT, FLANGEBOLT, FLANGE
-
995827-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
118FA-2128A-01-00 BRACKET, REGULATORBRACKET, REGULATOR
-
128FG-21947-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
148FR-2193A-01-00 PROTECTORPROTECTOR
-
158HF-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
168FA-12551-00-00 HOSE 7HOSE 7
-
1790467-28046-00 CLIPCLIP
-
1890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1995607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
218ES-2131D-00-00 PLATE, COVERPLATE, COVER
-
2290267-48176-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
-
2390267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
248ET-21950-20-00 REAR FRAME COMP.REAR FRAME COMP.
-
258FA-W2199-10-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
268ET-21943-01-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
278ET-21944-00-00 BRACKET, RR. TRACK SUSPENSIONBRACKET, RR. TRACK SUSPENSION
-
288ET-21954-00-00 BRACKET, RR. TRACK SUSPENSIONBRACKET, RR. TRACK SUSPENSION
-
298CR-2194N-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
308ET-2194X-00-00 BRACKET 1BRACKET 1
-
318ET-2195X-00-00 BRACKET 2BRACKET 2
-
328ES-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
3390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
348ET-21916-01-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
358ET-21963-00-00 PATCH 3PATCH 3
-
368ET-21964-00-00 PATCH 4PATCH 4
-
378ET-1241A-02-00 HEAT EXCHANGER ASSY 4HEAT EXCHANGER ASSY 4
-
3890210-06006-00 WASHER, SEALWASHER, SEAL
-
3995812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4090267-47197-00 RIVET, BLIND (4.7X19.5 SILVER)RIVET, BLIND (4.7X19.5 SILVER)
-
4190267-48095-00 RIVET,BLIND (4.8X12.6 SILVER)RIVET,BLIND (4.8X12.6 SILVER)
-
4295814-10020-00 BOLT, FLANGEBOLT, FLANGE
-
4390201-10064-00 WASHER, PLATEWASHER, PLATE
-
448ET-21953-00-00 BRACKET, MAIN TRACKBRACKET, MAIN TRACK
-
458ET-21926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
468ET-21936-00-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
478ET-21946-00-00 BRACKET, SEAT FITTINGBRACKET, SEAT FITTING
-
488ET-21956-00-00 BRACKET, SEAT FITTING 1BRACKET, SEAT FITTING 1
-
498ET-21988-00-00 PATCH 8PATCH 8
-
508ET-21989-00-00 PATCH 9PATCH 9
-
518ET-21997-00-00 PATCH 10PATCH 10
-
528ET-2196G-00-00 BRACKET 4BRACKET 4
-
5390267-48016-00 RIVET, BLIND (4.8X16.4 YELLOW)RIVET, BLIND (4.8X16.4 YELLOW)
-
5490267-48176-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
-
558FK-W2195-21-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
568CR-21939-01-00 BRACKET, CHAIN HOUSINGBRACKET, CHAIN HOUSING
-
578FU-2196M-00-00 BRACKET, 5BRACKET, 5
-
588FU-2197M-00-00 BRACKET, 6BRACKET, 6
-
598FP-2198G-01-00 COVER 2COVER 2
-
608FA-21999-00-00 CLAMP, WIRE HARNESSCLAMP, WIRE HARNESS
-
6190267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
6290267-47197-00 RIVET, BLIND (4.7X19.5 SILVER)RIVET, BLIND (4.7X19.5 SILVER)
-
6390267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
6490267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
6590267-47186-00 RIVET, BLIND (4.7X16.4 BLACKRIVET, BLIND (4.7X16.4 BLACK
-
668FU-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
678FU-21970-01-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
688EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
698ES-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
708FA-2196E-01-00 FRAME, UNDER 2FRAME, UNDER 2
-
718FA-21972-01-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
728FA-2196F-00-00 BRACKET 3BRACKET 3
-
7390267-48083-00 RIVET, BLIND (4.8X15.2 SILVER)RIVET, BLIND (4.8X15.2 SILVER)
-
7490267-48169-00 RIVET, BLIND (4.8X14.1 BLACK)RIVET, BLIND (4.8X14.1 BLACK)
-
7590267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
7690267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
7795822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
7890267-48095-00 RIVET,BLIND (4.8X12.6 SILVER)RIVET,BLIND (4.8X12.6 SILVER)
-
7990267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
8090267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
818FR-2197E-00-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
8292012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
838FA-21998-00-00 SPACERSPACER
-
848FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8590267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
868ET-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8790267-47004-00 RIVET, BLIND (4.7X13.1 YELLOW)RIVET, BLIND (4.7X13.1 YELLOW)
-
888DM-27431-02-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
898DM-27441-02-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
9097702-50020-00 SCREW, TAPPINGSCREW, TAPPING
