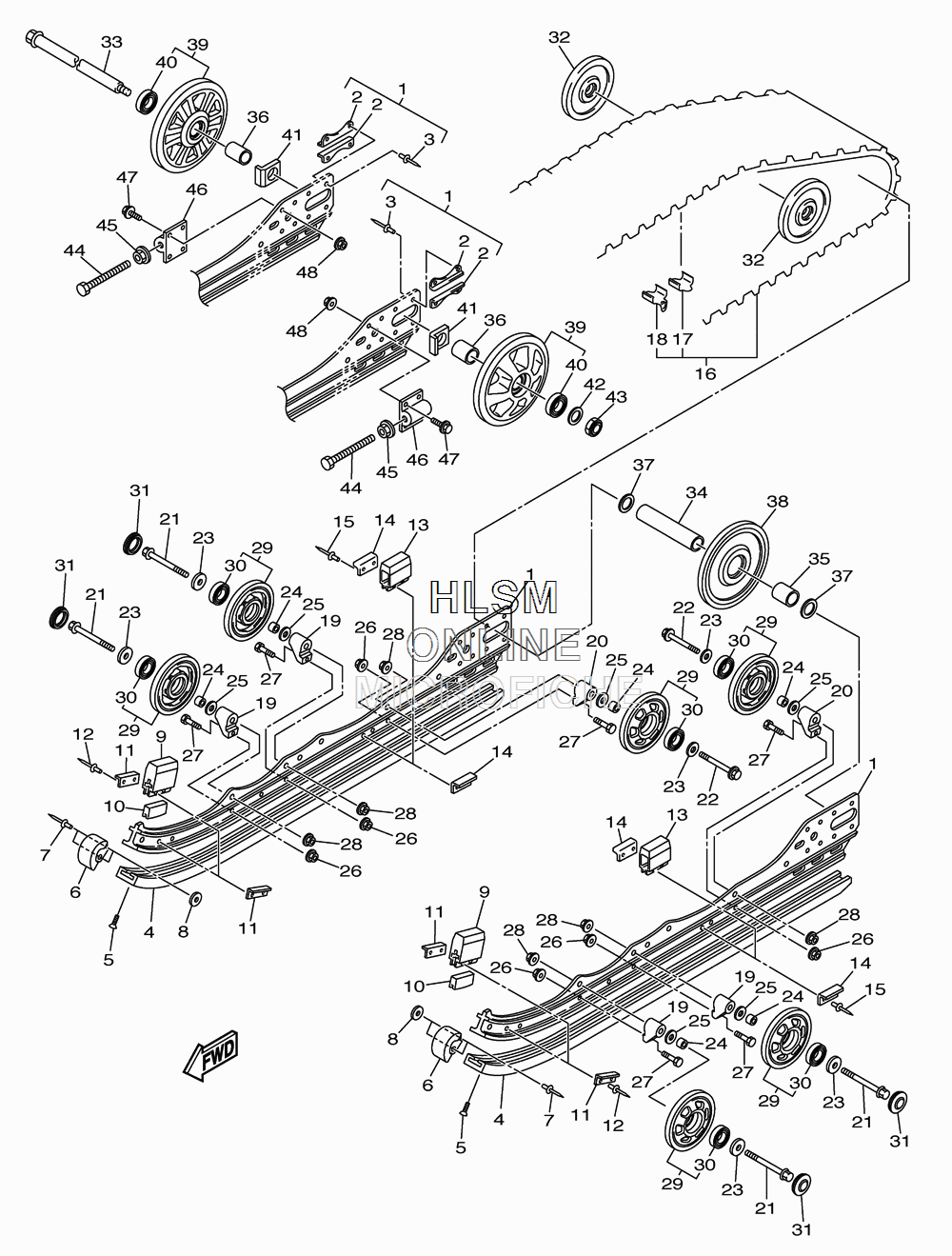

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha RS VECTOR GT - 2011 года выпуска`
-
№АртикулНазвание
-
18JA-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
28JA-4741B-00-00 BRACKETBRACKET
-
38V0-47468-00-00 RIVETRIVET
-
48FU-47421-00-00 SLIDE RUNNER BLK 121SLIDE RUNNER BLK 121
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98JB-47456-00-00 DAMPER 1DAMPER 1
-
108FR-47341-00-00 SPACERSPACER
-
118AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
138JA-47457-00-00 DAMPER 2DAMPER 2
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
168FA-47110-10-00 TRACK ASSYTRACK ASSY
-
178HR-47113-09-00 PLATE, REINFORCEMENTPLATE, REINFORCEMENT
-
188FA-47115-09-00 METAL, SLIDEMETAL, SLIDE
-
198CM-47419-10-00 BRACKET 7BRACKET 7
-
208CM-47419-30-00 BRACKET 7BRACKET 7
-
2190105-10241-00 BOLT, FLANGEBOLT, FLANGE
-
2290105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
2390201-101U2-00 WASHER, PLATEWASHER, PLATE
-
2490387-10031-00 COLLARCOLLAR
-
2590201-10714-00 WASHER, PLATEWASHER, PLATE
-
2695602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2790101-08063-00 BOLTBOLT
-
2895602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
298HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
3093306-00507-00 BEARINGBEARING
-
318HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
328CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
338JA-47521-00-00 AXLE, REARAXLE, REAR
-
3490387-25029-00 COLLARCOLLAR
-
3590387-25028-00 COLLARCOLLAR
-
3690387-25027-00 COLLARCOLLAR
-
3790201-25025-00 WASHER, PLATEWASHER, PLATE
-
388CR-47550-30-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
398HF-47550-20-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
4093306-00507-00 BEARINGBEARING
-
418JA-47375-00-00 WASHER 2WASHER 2
-
4290201-22018-00 WASHER, PLATEWASHER, PLATE
-
4390185-22009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4490101-12041-00 BOLTBOLT
-
4595702-12500-00 NUT, FLANGENUT, FLANGE
-
468JA-47463-00-00 BRACKET 5BRACKET 5
-
4790105-08183-00 BOLT, FLANGEBOLT, FLANGE
-
4895602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
