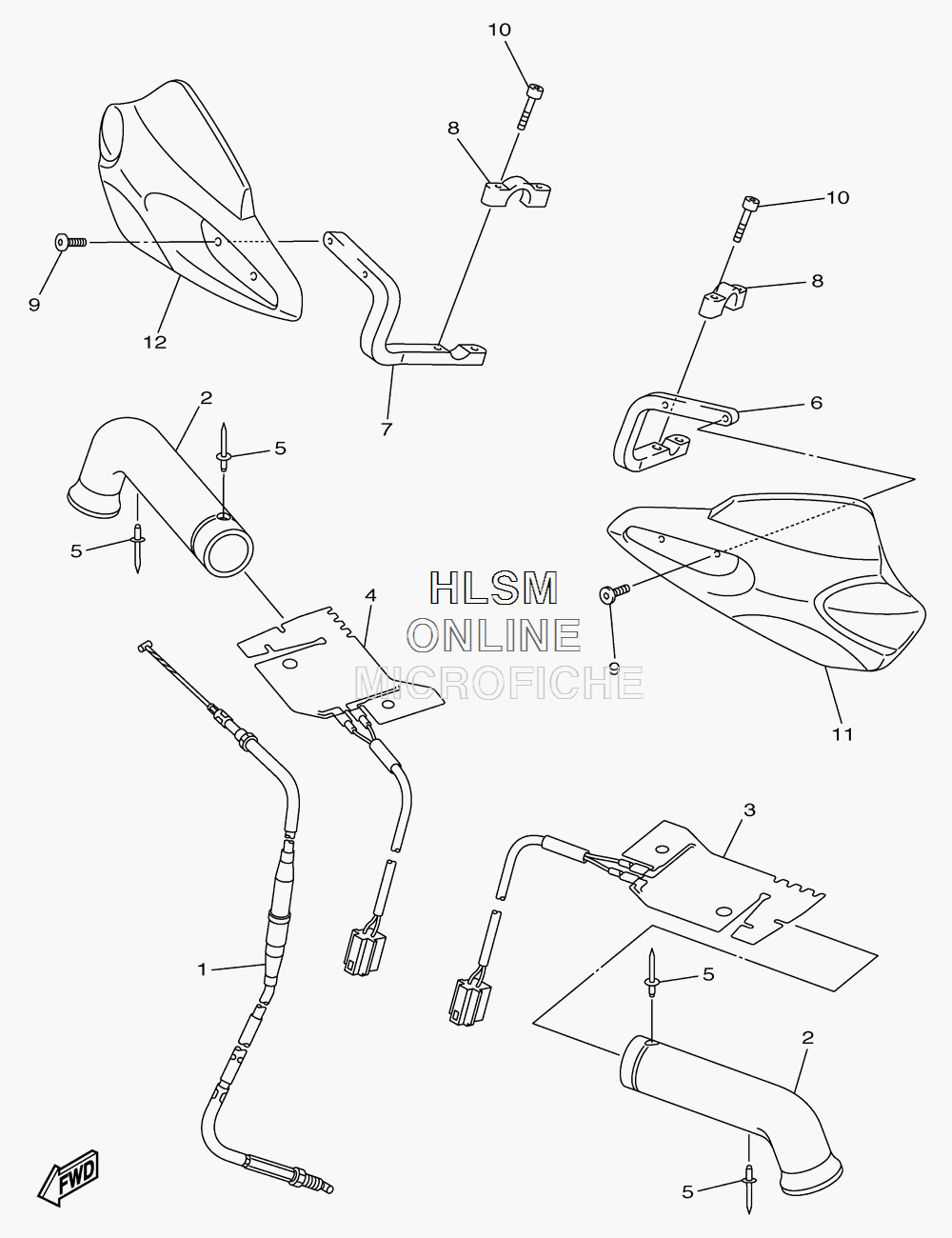

HANDLEBAR - CABLES AND GRIPS для Yamaha FX NYTRO RTX - 2011 года выпуска`
-
№АртикулНазвание
-
18GL-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
28HR-26241-01-00 GRIPGRIP
-
38FR-2626A-00-00 GRIP,WARMERGRIP,WARMER
-
48FR-2626A-10-00 GRIP,WARMERGRIP,WARMER
-
590267-48014-00 RIVET, BLIND (4.8X15.1 BLACK)RIVET, BLIND (4.8X15.1 BLACK)
-
68GL-2612L-01-00 BRACKET 3BRACKET 3
-
78GL-2612M-01-00 BRACKET 4BRACKET 4
-
88GL-2612K-00-00 BRACKET 2BRACKET 2
-
990109-065F3-00 BOLTBOLT
-
1091312-05030-00 BOLTBOLT
-
118GL-F6141-40-00 GUARD, BRUSH 1 (FOR DPBSE)GUARD, BRUSH 1 (FOR DPBSE)
-
118GL-F6141-30-00 GUARD, BRUSH 1 (FOR YB)GUARD, BRUSH 1 (FOR YB)
-
128GL-F6142-30-00 GUARD, BRUSH 2 (FOR YB)GUARD, BRUSH 2 (FOR YB)
-
128GL-F6142-40-00 GUARD, BRUSH 2 (FOR DPBSE)GUARD, BRUSH 2 (FOR DPBSE)
