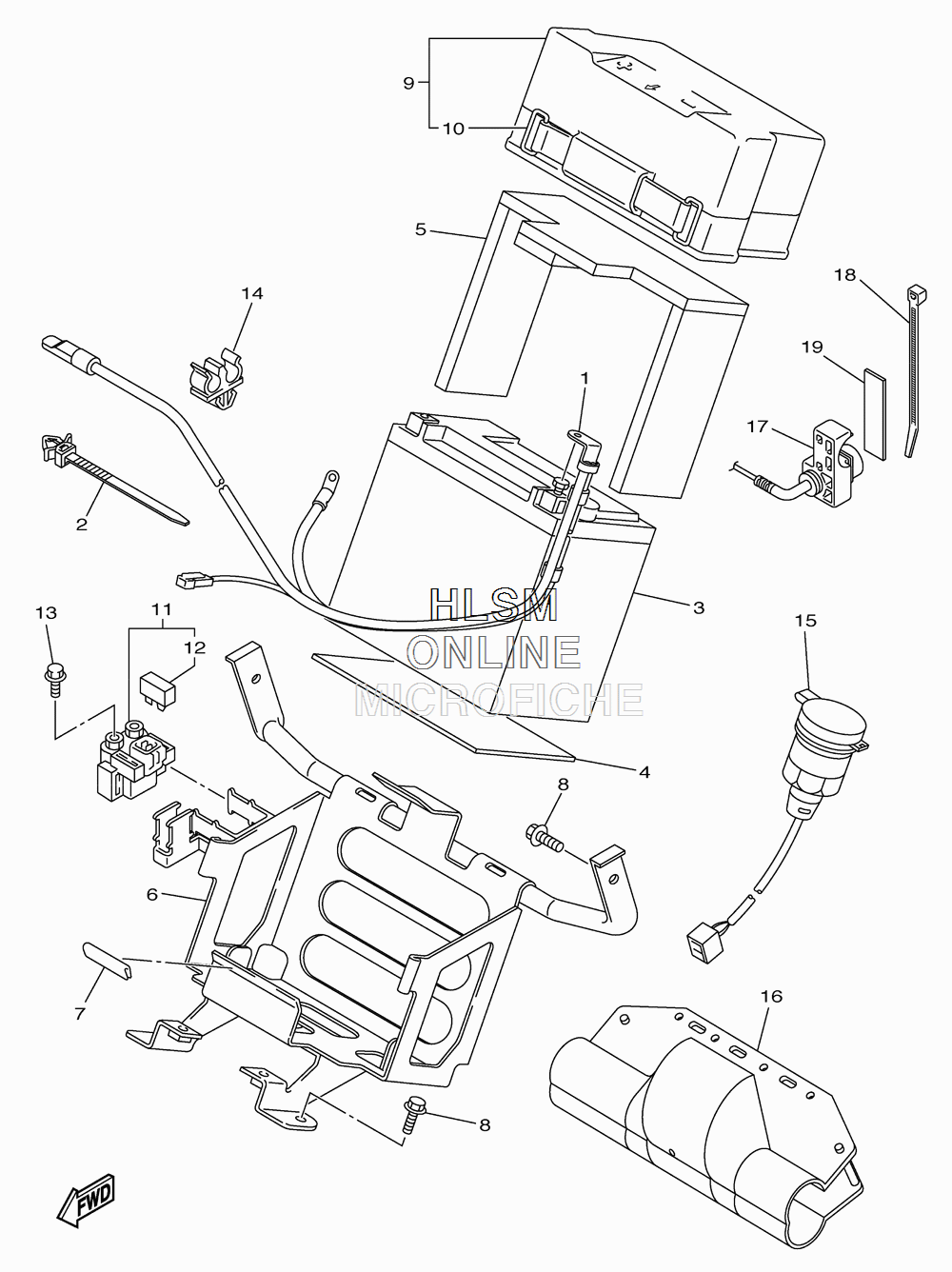

ELECTRICAL - BATTERY ASSY для Yamaha APEX - 2011 года выпуска`
-
№АртикулНазвание
-
18HG-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
290464-12089-00 CLAMPCLAMP
-
33XW-82100-01-00 BATTERY ASSY (YUASA YTX14-BS)BATTERY ASSY (YUASA YTX14-BS)
-
48FA-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
58FU-82136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
68HG-2199G-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
73VD-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
895822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
98FU-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
108DM-82131-10-00 BAND, BATTERYBAND, BATTERY
-
118HG-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1242X-82151-00-00 FUSE (10A-BL)FUSE (10A-BL)
-
1395022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
1490464-08126-00 CLAMPCLAMP
-
158FP-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
168FP-8252U-00-00 COVERCOVER
-
178HK-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
1890464-35132-00 CLAMPCLAMP
-
198HF-84527-00-00 DAMPERDAMPER
