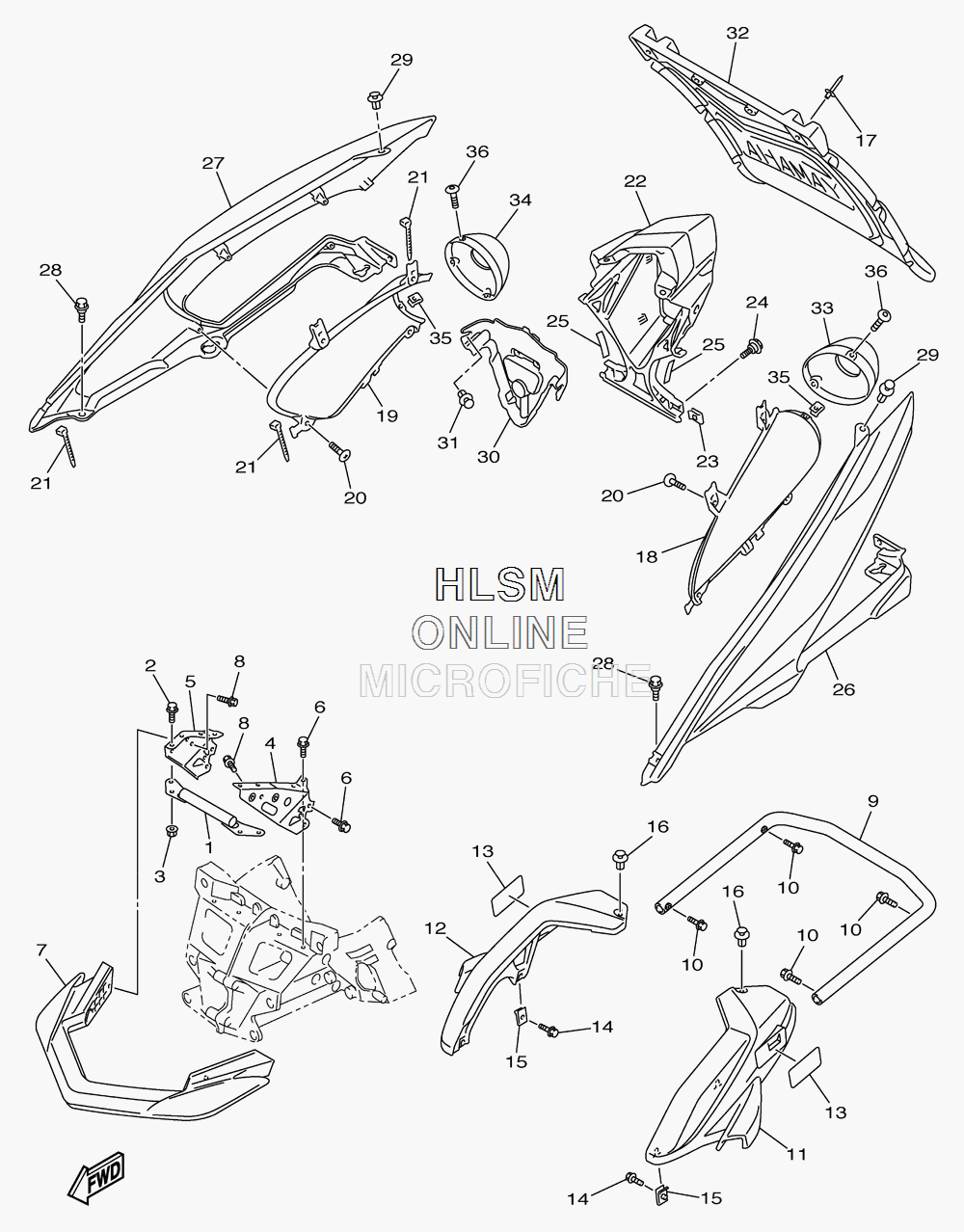

BUMPER - FRONT AND REAR для Yamaha APEX XTX - 2011 года выпуска`
-
№АртикулНазвание
-
18FP-21979-00-00 BRACKET, FRONT HOODBRACKET, FRONT HOOD
-
295822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
395702-06500-00 NUT, FLANGENUT, FLANGE
-
48FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
58FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
695822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
78FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
895812-08016-00 BOLT,FLANGE (JN5)BOLT,FLANGE (JN5)
-
98HN-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
1095822-08020-00 BOLT,FLANGE(8AB)BOLT,FLANGE(8AB)
-
118HG-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
128HG-77543-00-00 BUMPER, REAR 3BUMPER, REAR 3
-
138FT-7814E-00-00 SEAL, BODY SIDE 1SEAL, BODY SIDE 1
-
1495802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1590183-06053-00 NUT, SPRING (4ES)NUT, SPRING (4ES)
-
1690269-08006-00 RIVETRIVET
-
1790267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
188HG-77551-00-P0 PROTECTOR 1 (FOR DPBMC)PROTECTOR 1 (FOR DPBMC)
-
188HG-77551-00-P0 PROTECTOR 1 (FOR DRMK)PROTECTOR 1 (FOR DRMK)
-
198HG-77552-00-P0 PROTECTOR 2 (FOR DRMK)PROTECTOR 2 (FOR DRMK)
-
198HG-77552-00-P0 PROTECTOR 2 (FOR DPBMC)PROTECTOR 2 (FOR DPBMC)
-
2097702-50014-00 SCREW, TRUSSSCREW, TRUSS
-
2190465-13M11-00 CLAMPCLAMP
-
228HG-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
2390183-06100-00 NUT, SPRINGNUT, SPRING
-
2490109-06220-00 BOLTBOLT
-
258HG-77588-00-00 DAMPERDAMPER
-
268HG-2471K-00-00 COVER, TAIL 1COVER, TAIL 1
-
278HG-2472K-00-00 COVER, TAIL 2COVER, TAIL 2
-
2890109-06220-00 BOLTBOLT
-
2990269-08006-00 RIVETRIVET
-
308HG-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
3190269-08006-00 RIVETRIVET
-
328GT-K7595-00-00 FLAPFLAP
-
338HG-77517-00-00 CAPCAP
-
348HG-77517-10-00 CAPCAP
-
3590183-051A4-00 NUT, SPRINGNUT, SPRING
-
3690111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
