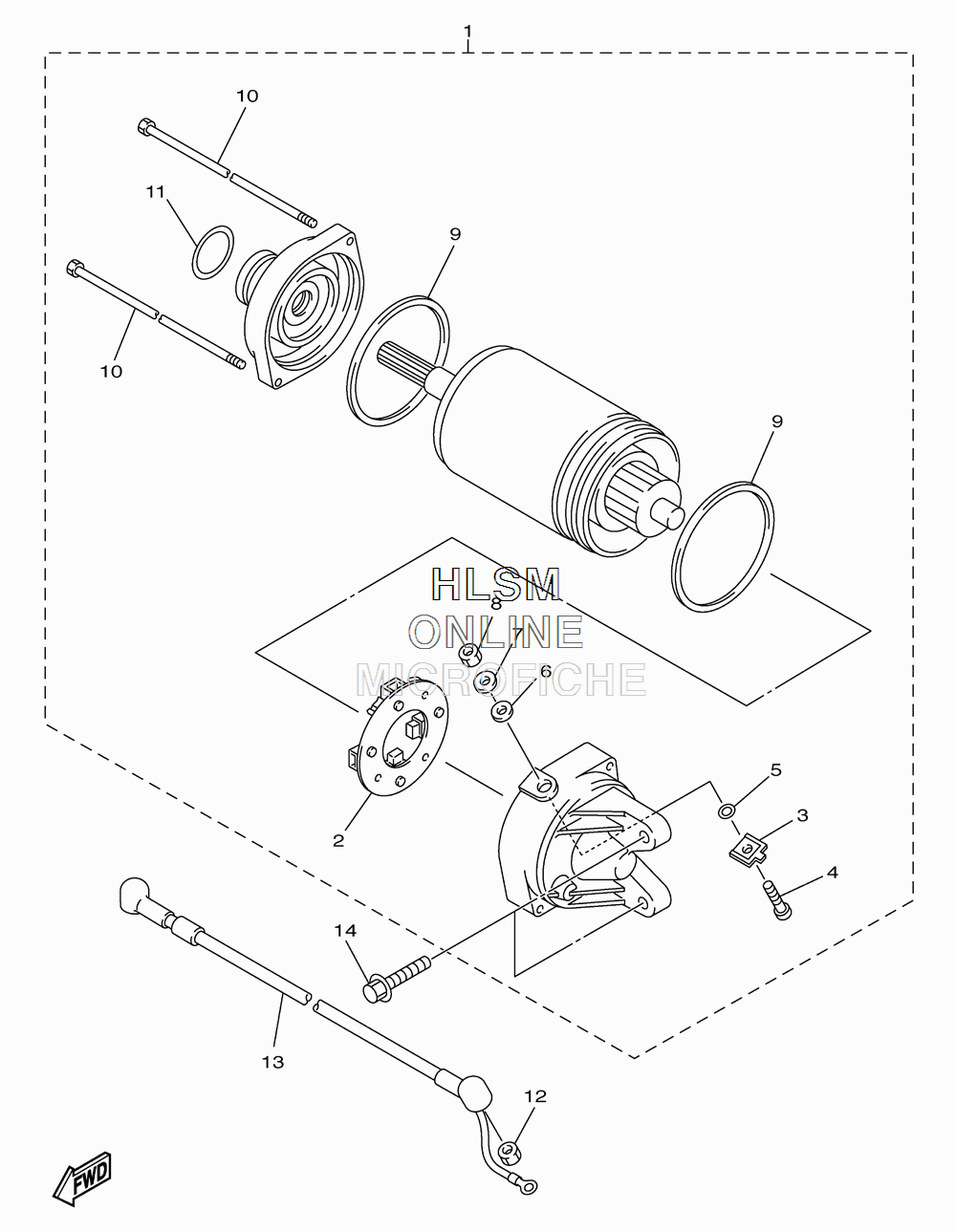

STARTER - ELECTRICAL STARTER ASSY для Yamaha APEX SE - 2011 года выпуска`
-
№АртикулНазвание
-
18HG-81890-00-00 MOTOR ASSYMOTOR ASSY
-
22S3-81801-00-00 BRUSH SETBRUSH SET
-
32S3-8182G-00-00 BUSH, TERMINALBUSH, TERMINAL
-
42S3-81828-00-00 BOLT 2BOLT 2
-
593210-06001-00 O-RINGO-RING
-
68FA-8181L-00-00 WASHER, PLAINWASHER, PLAIN
-
71D7-81835-00-00 WASHERWASHER
-
895302-06700-00 NUTNUT
-
95PX-81861-00-00 GASKETGASKET
-
108FA-81846-01-00 SCREWSCREW
-
1193210-24235-00 O-RINGO-RING
-
1295302-06700-00 NUTNUT
-
138FA-8183G-00-00 CORD COMP.CORD COMP.
-
1495812-08030-00 BOLT, FLANGEBOLT, FLANGE
