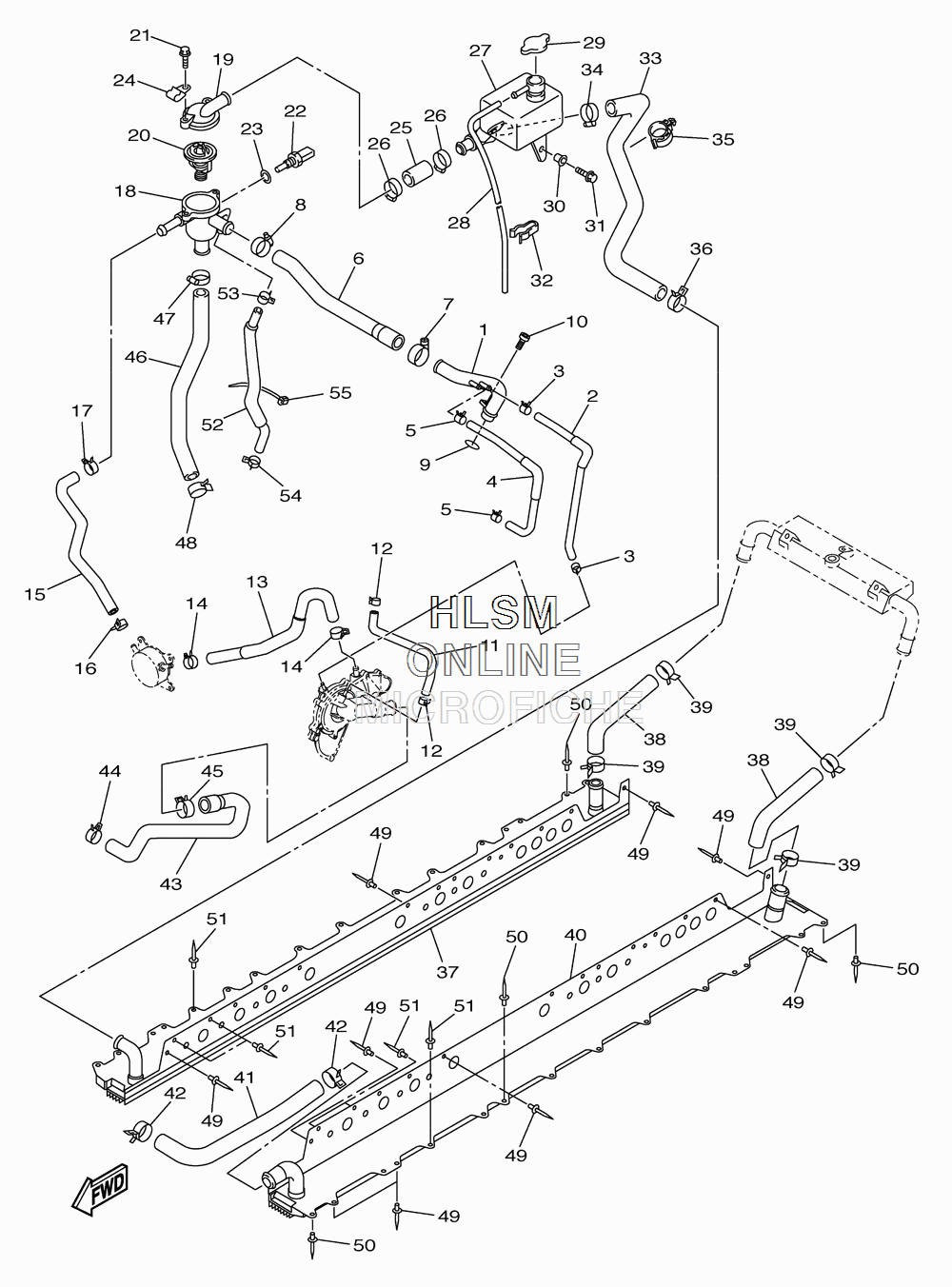

RADIATOR & HOSE для Yamaha RS VENTURE - 2010 года выпуска
-
№АртикулНазвание
-
18ES-12482-00-00 PIPE 2PIPE 2
-
28ES-12485-01-00 PIPE 5PIPE 5
-
390467-11090-00 CLIP,SCISSORCLIP,SCISSOR
-
48ES-12577-00-00 HOSE 2HOSE 2
-
590467-11090-00 CLIP,SCISSORCLIP,SCISSOR
-
68ES-1243E-00-00 HOSE 2HOSE 2
-
790450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
993210-26006-00 O-RINGO-RING
-
1091312-06016-00 BOLTBOLT
-
118ES-12578-00-00 HOSE 3HOSE 3
-
1290467-110A2-00 CLIPCLIP
-
138ES-12588-00-00 HOSE 5HOSE 5
-
1490467-17089-00 CLIPCLIP
-
158ES-12589-00-00 HOSE 6HOSE 6
-
1690467-17089-00 CLIPCLIP
-
1790467-17089-00 CLIPCLIP
-
188FA-W1258-01-00 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
195EB-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
208FA-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
2195022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
228CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
2390201-12790-00 WASHER, PLATEWASHER, PLATE
-
2490465-06M28-00 CLAMPCLAMP
-
258FA-1243F-00-00 HOSE,3HOSE,3
-
2690450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
278FA-1249B-02-00 TANK, RESERVETANK, RESERVE
-
2890445-08007-00 HOSEHOSE
-
2922W-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
3090387-06024-00 COLLARCOLLAR
-
3195822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3290464-15065-00 CLAMPCLAMP
-
338FA-1244G-01-00 HOSE, 4HOSE, 4
-
3490450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3590464-32002-00 CLAMPCLAMP
-
3690467-28046-00 CLIP SCISSORCLIP SCISSOR
-
378ET-1240F-01-00 HEAT EXCHANGERHEAT EXCHANGER
-
388FA-12476-00-00 PIPE 6PIPE 6
-
3990467-28046-00 CLIP SCISSORCLIP SCISSOR
-
408ET-1240E-01-00 HEAT EXCHANGERHEAT EXCHANGER
-
418FA-12477-00-00 PIPE 7PIPE 7
-
4290467-28046-00 CLIP SCISSORCLIP SCISSOR
-
438ES-1248A-00-00 PIPE 8PIPE 8
-
4490467-28046-00 CLIP SCISSORCLIP SCISSOR
-
4590467-310A0-00 CLIPCLIP
-
468ET-1248E-00-00 PIPE 9PIPE 9
-
4790450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4890467-28046-00 CLIP SCISSORCLIP SCISSOR
-
4990267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
5090267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
5190267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
528FA-12579-00-00 HOSE 4HOSE 4
-
5390467-11090-00 CLIP,SCISSORCLIP,SCISSOR
-
5490467-11044-00 CLIP SCISSORCLIP SCISSOR
-
5590464-13073-00 CLAMPCLAMP
