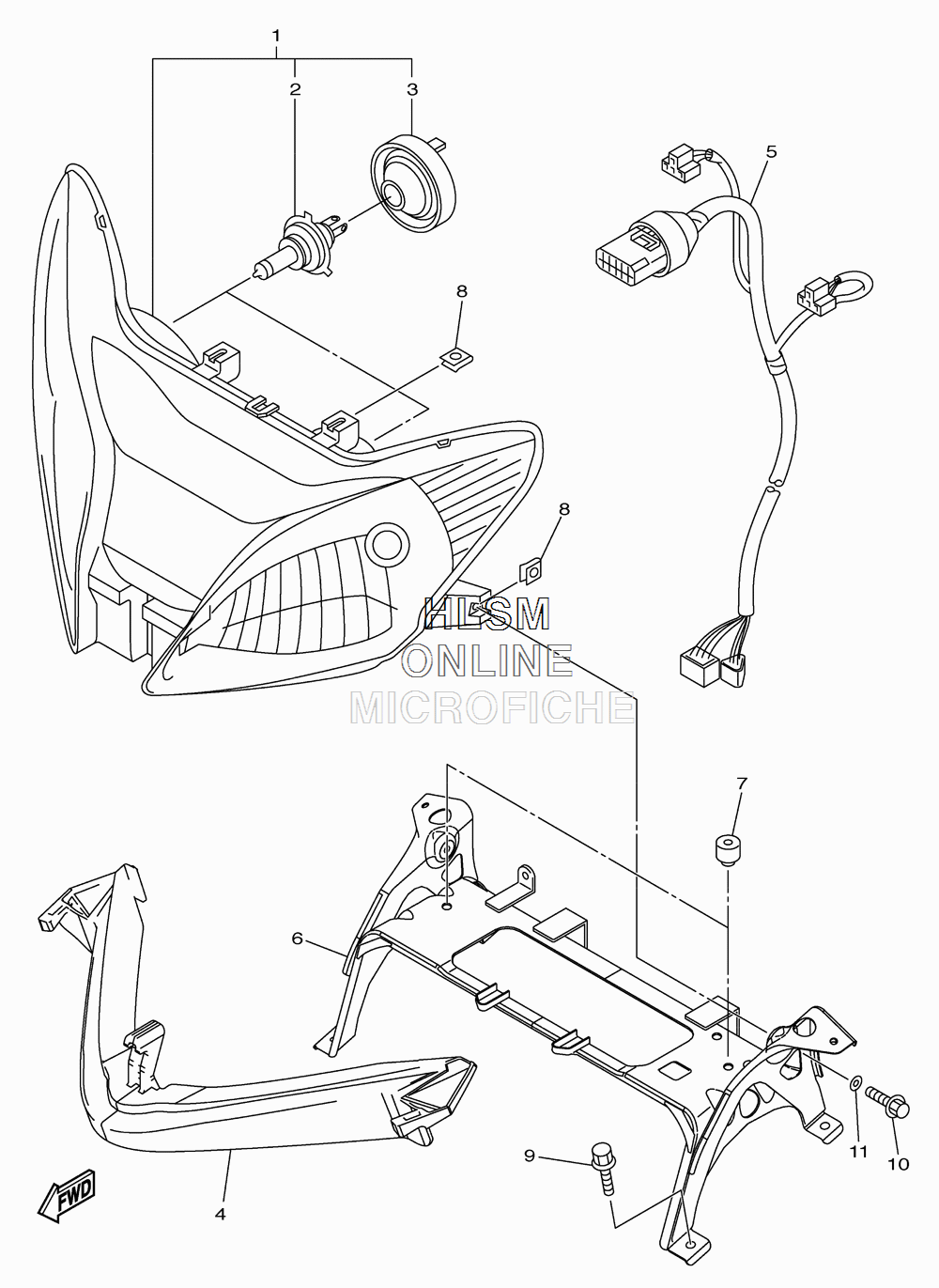

ELECTRICAL - HEADLIGHT ASSY для Yamaha RS VECTOR LTX GT - 2010 года выпуска`
-
№АртикулНазвание
-
18FP-84310-10-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
18FP-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
28FP-84314-00-00 BULB, HEADLIGHT (12V-60/55W)BULB, HEADLIGHT (12V-60/55W)
-
38EK-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
48FP-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
58HF-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
68JA-84118-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
71UJ-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
890183-06100-00 NUT, SPRINGNUT, SPRING
-
995802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1097002-06016-00 BOLTBOLT
-
1192902-06100-00 WASHER, SPRINGWASHER, SPRING
