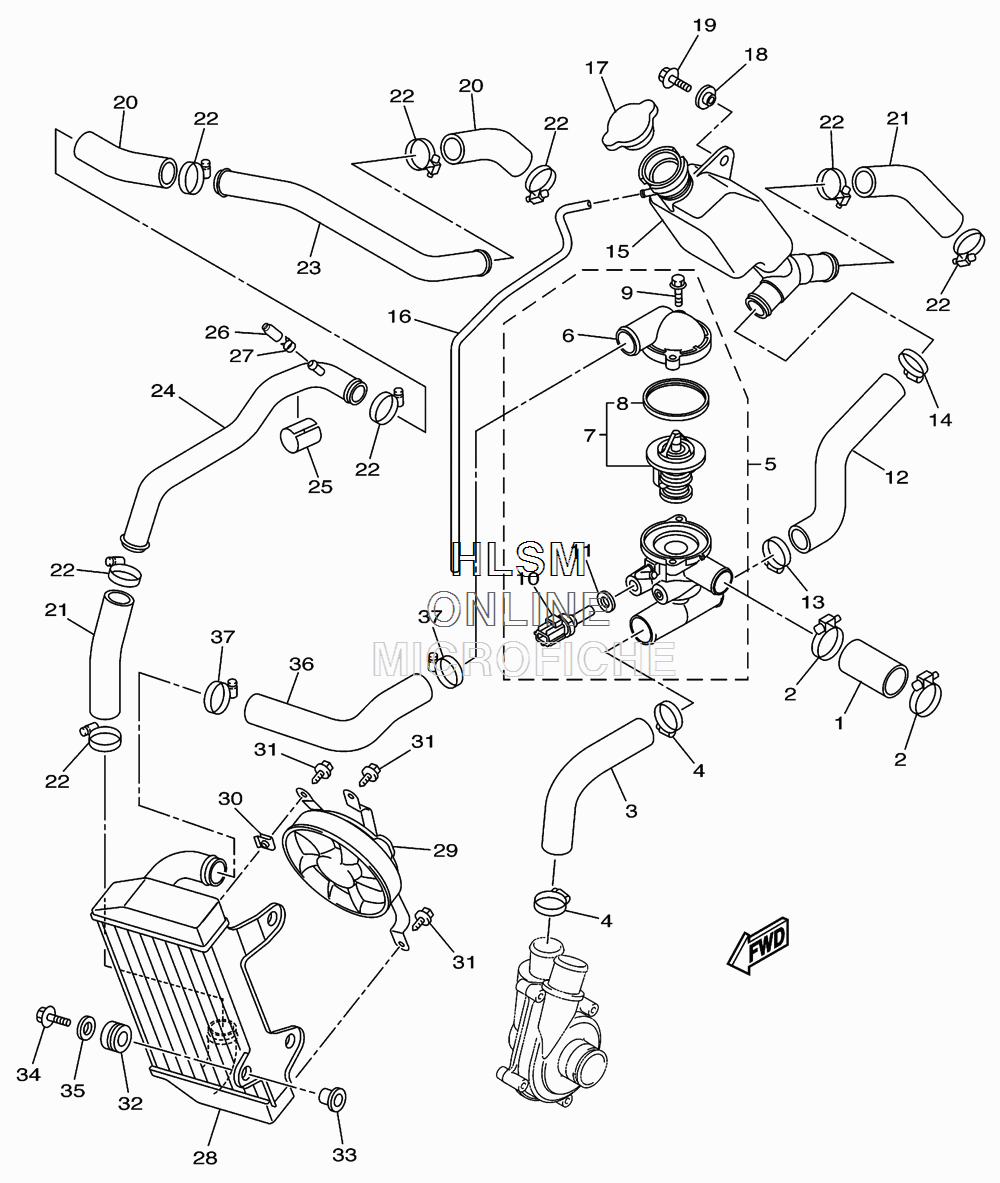

RADIATOR & HOSE для Yamaha PHAZER RTX - 2010 года выпуска`
-
№АртикулНазвание
-
18GC-1243E-00-00 HOSE 2HOSE 2
-
290450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
38GC-1244G-00-00 HOSE, 4HOSE, 4
-
490450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
58GC-12580-00-00 JOINT ASSYJOINT ASSY
-
65VX-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
78FN-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
88EK-12412-00-00 SEAL, THERMOSTATSEAL, THERMOSTAT
-
995822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
108CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1190201-12790-00 WASHER, PLATEWASHER, PLATE
-
128GC-1243F-00-00 HOSE,3HOSE,3
-
1390450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1490450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
158GC-1249B-00-00 TANK, RESERVETANK, RESERVE
-
1690445-08022-00 HOSEHOSE
-
1722W-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
1890387-06024-00 COLLARCOLLAR
-
1995822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
208GC-12476-00-00 PIPE 6PIPE 6
-
218GC-12477-00-00 PIPE 7PIPE 7
-
2290450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
238GC-12564-00-00 PIPE, WATERPIPE, WATER
-
248GC-12481-00-00 PIPE 1PIPE 1
-
258GC-12465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
2616G-13569-00-00 PLUG, BLINDPLUG, BLIND
-
2790467-11028-00 CLIP, SCISSORCLIP, SCISSOR
-
288GC-12461-00-00 RADIATOR ASSYRADIATOR ASSY
-
298GJ-12405-00-00 BLOWER ASSYBLOWER ASSY
-
305SL-12671-00-00 NUT 1NUT 1
-
315GJ-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
3290480-15528-00 GROMMETGROMMET
-
3390387-06065-00 COLLARCOLLAR
-
3495022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
3590201-06380-00 WASHER, PLATEWASHER, PLATE
-
368GC-1248A-00-00 PIPE 8PIPE 8
-
3790450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
