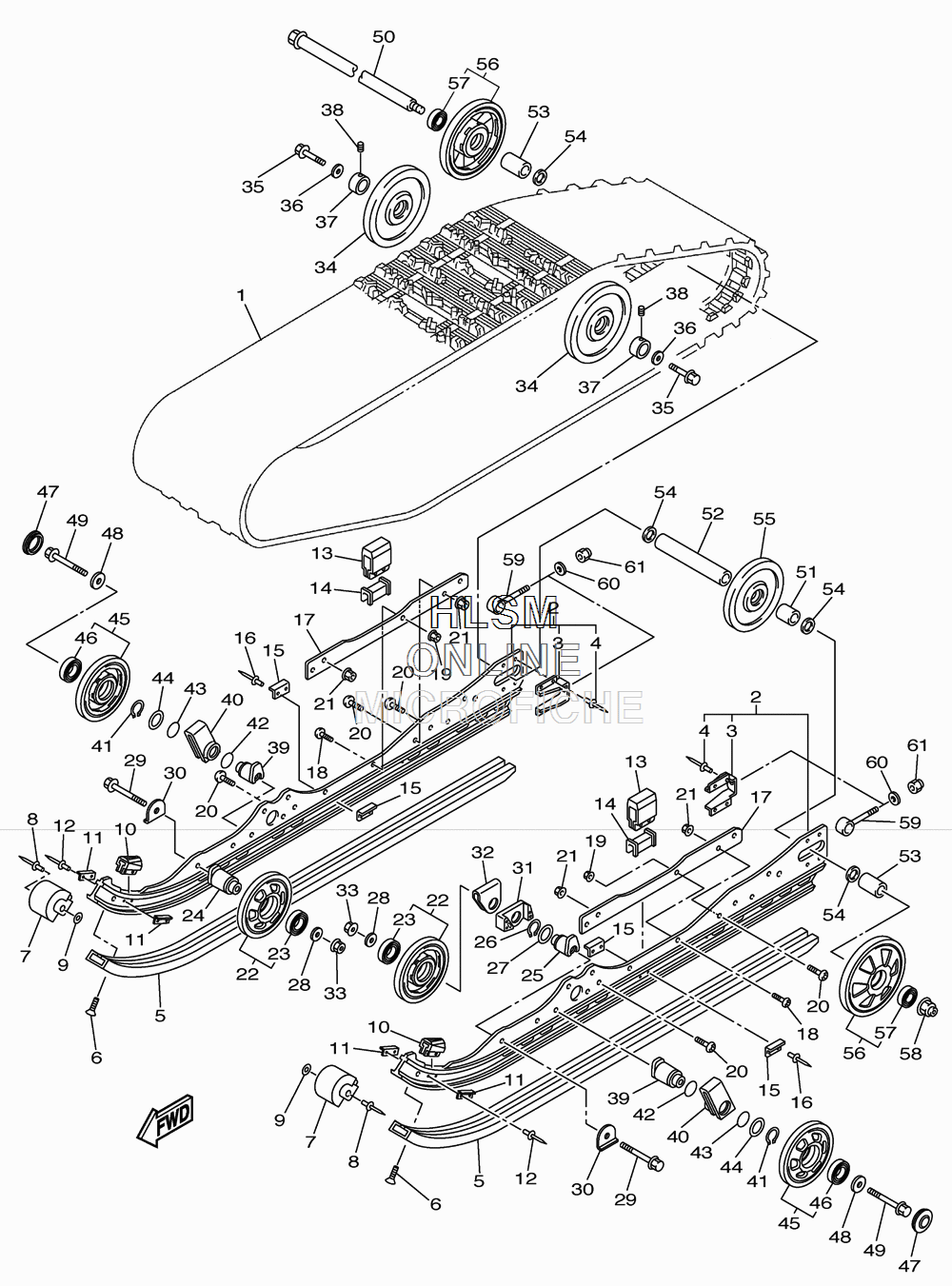

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha FX NYTRO RTX SE - 2010 года выпуска
-
№АртикулНазвание
-
18FA-47110-10-00 TRACK ASSYTRACK ASSY
-
28HK-W4741-10-00 FRAME, SLIDINGFRAME, SLIDING
-
38DM-4741B-00-00 BRACKETBRACKET
-
48V0-47468-00-00 RIVETRIVET
-
5SMA-8GL92-00-BK FX NYTRO WIDE SLIDESFX NYTRO WIDE SLIDES
-
690151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
78GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
990201-047R8-00 WASHER, PLATEWASHER, PLATE
-
108ES-47456-00-00 DAMPER 1DAMPER 1
-
118K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
138GL-47457-00-00 DAMPER 2DAMPER 2
-
148HK-47573-00-00 SPACERSPACER
-
158AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1690267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
178HK-4741C-00-00 FRAME, SLIDING CFRAME, SLIDING C
-
1892012-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1995602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2092012-10025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2195602-10200-00 NUT, U FLANGENUT, U FLANGE
-
228HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2393306-00507-00 BEARINGBEARING
-
248ES-47419-00-00 BRACKET 7BRACKET 7
-
258ES-47419-10-00 BRACKET 7BRACKET 7
-
2699009-35400-00 CIRCLIPCIRCLIP
-
2790201-35013-00 WASHER, PLATEWASHER, PLATE
-
2890201-10038-00 WASHER, PLATEWASHER, PLATE
-
2995812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3090214-10003-00 WASHER, CLAWWASHER, CLAW
-
318HB-47464-00-00 BRACKET 6BRACKET 6
-
328HB-47446-00-00 HOOK 1HOOK 1
-
3395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
348CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
3590109-10030-00 BOLTBOLT
-
3690201-10064-00 WASHER, PLATEWASHER, PLATE
-
378FS-47365-00-00 COLLAR 1COLLAR 1
-
3890113-06039-00 BOLT, SETBOLT, SET
-
398ES-47419-10-00 BRACKET 7BRACKET 7
-
408ES-47446-00-00 HOOK 1HOOK 1
-
4199009-35400-00 CIRCLIPCIRCLIP
-
4293210-35537-00 O-RINGO-RING
-
4393210-34504-00 O-RINGO-RING
-
4490201-35013-00 WASHER, PLATEWASHER, PLATE
-
458HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
4693306-00507-00 BEARINGBEARING
-
478HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
4890201-10038-00 WASHER, PLATEWASHER, PLATE
-
4995812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
508L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
5190387-20015-00 COLLARCOLLAR
-
5290387-20016-00 COLLARCOLLAR
-
5390387-20019-00 COLLARCOLLAR
-
5490201-20022-00 WASHER, PLATEWASHER, PLATE
-
558CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
568HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
5793306-00444-00 BEARINGBEARING
-
5895602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
598DM-47479-00-00 COLLAR 3COLLAR 3
-
6092902-10600-00 WASHER, PLATEWASHER, PLATE
-
6195702-10300-00 NUT, NYLONNUT, NYLON
