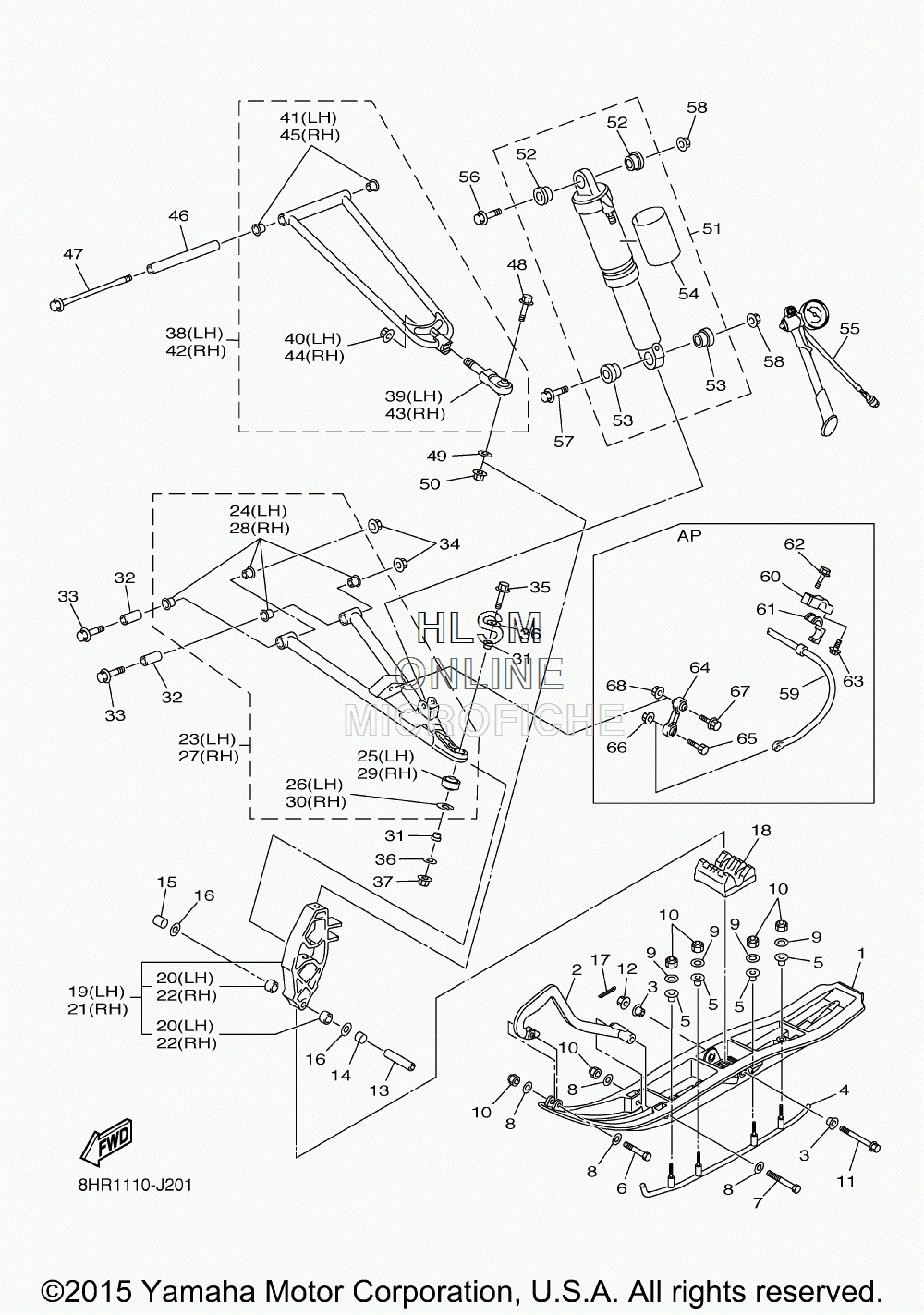

SUSPENSION - FRONT W/ SKI ASSY для Yamaha FX NYTRO MTX SE 162 - 2010 года выпуска
-
№АртикулНазвание
-
18FK-23711-00-BK SKI 1SKI 1
-
28EK-F3712-00-00 REINFORCEMENT, HEAD FOR DPBSEREINFORCEMENT, HEAD FOR DPBSE
-
28DM-F3712-00-00 REINFORCEMENT, HEAD FOR YBREINFORCEMENT, HEAD FOR YB
-
38EX-F3754-00-00 COLLAR 1COLLAR 1
-
48GP-F3731-00-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT, NYLONNUT, NYLON
-
1190105-10106-00 BOLT, FLANGEBOLT, FLANGE
-
1295602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
1390387-10036-00 COLLARCOLLAR
-
1490387-16017-00 COLLARCOLLAR
-
1590387-16021-00 COLLARCOLLAR
-
1690201-16033-00 WASHER, PLATEWASHER, PLATE
-
1791401-20020-00 PIN, COTTERPIN, COTTER
-
188GP-23743-00-00 STOPPER 1STOPPER 1
-
198HK-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2090384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
218HK-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2290384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
238HK-23570-10-P2 FRONT LOWER ARM COMP. (LEFT) (MBL2 FOR YB)FRONT LOWER ARM COMP. (LEFT) (MBL2 FOR YB)
-
238HK-23570-10-P1 FRONT LOWER ARM COMP. (LEFT) FOR DPBMCFRONT LOWER ARM COMP. (LEFT) FOR DPBMC
-
2490381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
258HK-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2699009-35700-00 ...CIRCLIP...CIRCLIP
-
278HK-23580-10-P2 FRONT LOWER ARM COMP. (RIGHT) (MBL2 FOR YB)FRONT LOWER ARM COMP. (RIGHT) (MBL2 FOR YB)
-
278HK-23580-10-P1 FRONT LOWER ARM COMP. (RIGHT) FOR DPBMCFRONT LOWER ARM COMP. (RIGHT) FOR DPBMC
-
2890381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
298HK-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
3099009-35700-00 ...CIRCLIP...CIRCLIP
-
318HK-23754-00-00 COLLAR, 1COLLAR, 1
-
3290387-10065-00 COLLARCOLLAR
-
3390105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
3495602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
3590105-10318-00 BOLT, FLANGEBOLT, FLANGE
-
3690201-10052-00 WASHER, PLATEWASHER, PLATE
-
3795602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
388HK-23540-00-P1 FRONT UPPER ARM COMP. (LEFT) FOR DPBMCFRONT UPPER ARM COMP. (LEFT) FOR DPBMC
-
388HK-23540-00-P2 FRONT UPPER ARM COMP. (LEFT) (MBL2 FOR YB)FRONT UPPER ARM COMP. (LEFT) (MBL2 FOR YB)
-
398GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4095602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4190381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
428HK-23550-00-P1 FRONT UPPER ARM COMP. (RIGHT) FOR DPBMCFRONT UPPER ARM COMP. (RIGHT) FOR DPBMC
-
428HK-23550-00-P2 FRONT UPPER ARM COMP. (RIGHT) (MBL2 FOR YB)FRONT UPPER ARM COMP. (RIGHT) (MBL2 FOR YB)
-
438GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4495602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4590381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
468HK-23373-00-00 COLLAR 1COLLAR 1
-
4790105-10353-00 BOLT, FLANGEBOLT, FLANGE
-
4891312-10045-00 BOLTBOLT
-
4990201-10052-00 WASHER, PLATEWASHER, PLATE
-
5095602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
518HR-F376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
528HR-47371-09-00 ...BUSH...BUSH
-
538HR-47371-19-00 ...BUSH...BUSH
-
548HR-F2259-00-00 ...LABEL, WARNING...LABEL, WARNING
-
558HR-F3703-00-00 ADJUSTERADJUSTER
-
5690105-10122-00 BOLT, FLANGEBOLT, FLANGE
-
5790105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
5895602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
598GN-2386E-00-00 BAR, STABILIZER FRONT (14MM) (OPT)BAR, STABILIZER FRONT (14MM) (OPT)
-
598GN-2386E-10-00 BAR, STABILIZER FRONT (15MM WHITE) (OPT)BAR, STABILIZER FRONT (15MM WHITE) (OPT)
-
598GN-2386E-20-00 BAR, STABILIZER FRONT (13MM YELLOW) (OPT)BAR, STABILIZER FRONT (13MM YELLOW) (OPT)
-
608GL-2386C-00-00 HOLDER, STABILIZER FRONT (OPT)HOLDER, STABILIZER FRONT (OPT)
-
618GN-2386G-00-00 BUSH, STABILIZER FRONT (14.1MM) (OPT)BUSH, STABILIZER FRONT (14.1MM) (OPT)
-
618GN-2386G-10-00 BUSH, STABILIZER FRONT (15.1MM) (OPT)BUSH, STABILIZER FRONT (15.1MM) (OPT)
-
618GN-2386G-20-00 BUSH, STABILIZER FRONT (13.1MM) (OPT)BUSH, STABILIZER FRONT (13.1MM) (OPT)
-
6292012-08030-00 BOLT, BUTTON HEAD (OPT)BOLT, BUTTON HEAD (OPT)
-
6392012-08016-00 BOLT, BUTTON HEAD (OPT)BOLT, BUTTON HEAD (OPT)
-
648GN-2385L-10-00 JOINT, STABILIZER 1 (OPT)JOINT, STABILIZER 1 (OPT)
-
6597012-10035-00 BOLT (OPT)BOLT (OPT)
-
6695602-10200-00 NUT, U FLANGE (OPT)NUT, U FLANGE (OPT)
-
6795812-08040-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
6895602-08200-00 NUT, SELF-LOCKING (OPT)NUT, SELF-LOCKING (OPT)
