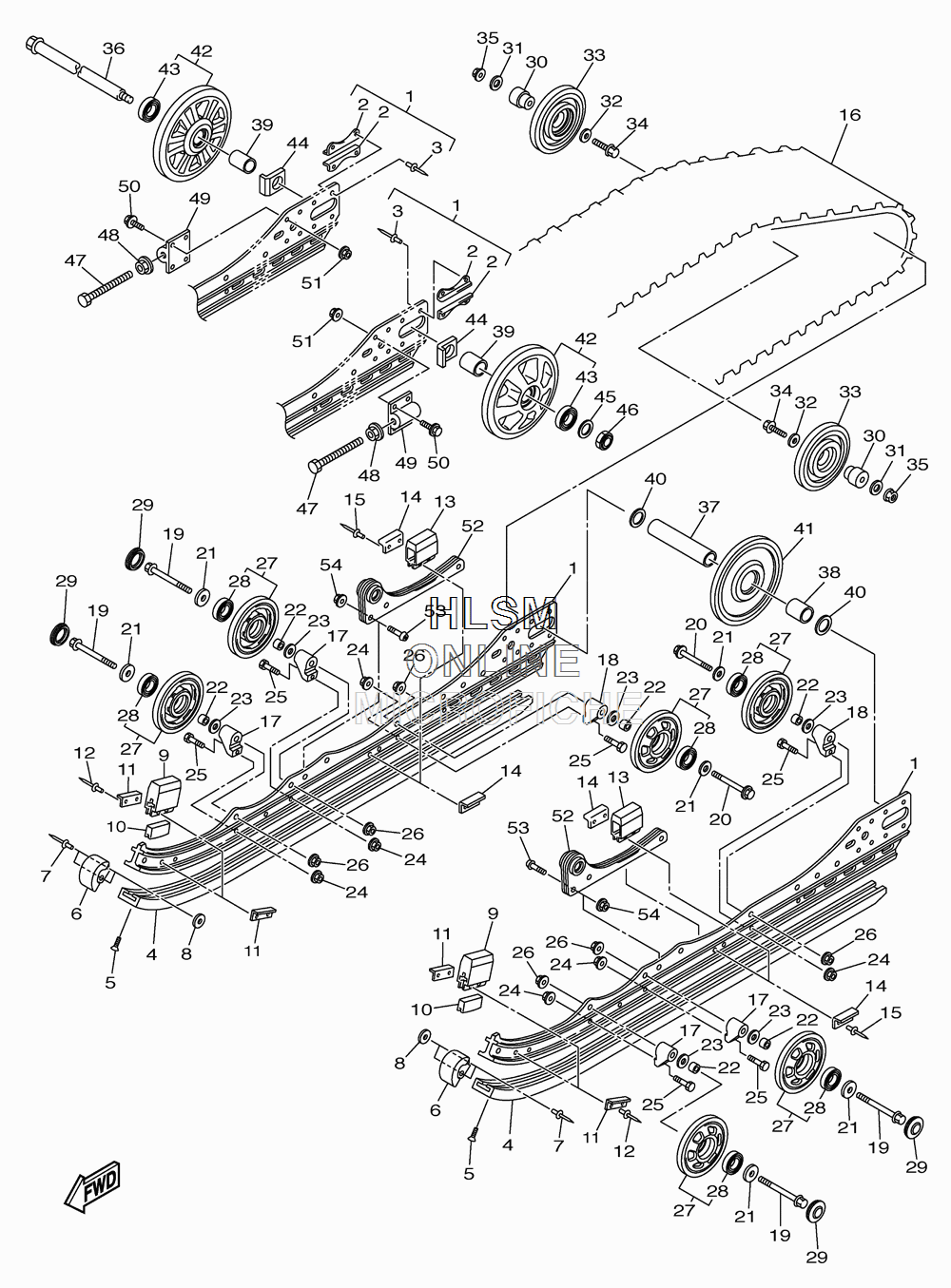

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha APEX LTX GT - 2010 года выпуска`
-
№АртикулНазвание
-
18JB-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
28JA-4741B-00-00 BRACKETBRACKET
-
38V0-47468-00-00 RIVETRIVET
-
48FT-47421-00-00 SLIDE RUNNER BLK 136SLIDE RUNNER BLK 136
-
590151-06010-00 SCREW, CROSSRECESSSCREW, CROSSRECESS
-
68GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98JB-47456-00-00 DAMPER 1DAMPER 1
-
108FR-47341-00-00 SPACERSPACER
-
118AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
138JA-47457-00-00 DAMPER 2DAMPER 2
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
168FG-47110-10-00 TRACK ASSYTRACK ASSY
-
178CM-47419-10-00 BRACKET 7BRACKET 7
-
188CM-47419-30-00 BRACKET 7BRACKET 7
-
1990105-10241-00 BOLT, FLANGEBOLT, FLANGE
-
2090105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-10038-00 WASHER, PLATEWASHER, PLATE
-
2290387-10031-00 COLLARCOLLAR
-
2390201-100S0-00 WASHER, PLATEWASHER, PLATE
-
2495602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2590101-08774-00 BOLTBOLT
-
2695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
278HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
2893306-00507-00 BEARINGBEARING
-
298HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
308JB-47419-00-00 BRACKET 7BRACKET 7
-
3190201-10039-00 WASHER, PLATEWASHER, PLATE
-
3290201-10038-00 WASHER, PLATEWASHER, PLATE
-
338CR-47310-10-00 BOGEY WHEEL W SPACERBOGEY WHEEL W SPACER
-
3490105-10210-00 BOLT, FLANGEBOLT, FLANGE
-
3595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
368JA-47521-00-00 AXLE, REARAXLE, REAR
-
3790387-25029-00 COLLARCOLLAR
-
3890387-25028-00 COLLARCOLLAR
-
3990387-25027-00 COLLARCOLLAR
-
4090201-25025-00 WASHER, PLATEWASHER, PLATE
-
418CR-47550-30-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
428HF-47550-20-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
4393306-00507-00 BEARINGBEARING
-
448JA-47375-00-00 WASHER 2WASHER 2
-
4590201-22018-00 WASHER, PLATEWASHER, PLATE
-
4690185-22009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4790101-12041-00 BOLTBOLT
-
4895702-12500-00 NUT (3GG)NUT (3GG)
-
498JA-47463-00-00 BRACKET 5BRACKET 5
-
5090105-08183-00 BOLT, FLANGEBOLT, FLANGE
-
5195602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
528JA-47415-00-00 BRACKET 1BRACKET 1
-
5390111-10045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5495602-10200-00 NUT, U FLANGENUT, U FLANGE
