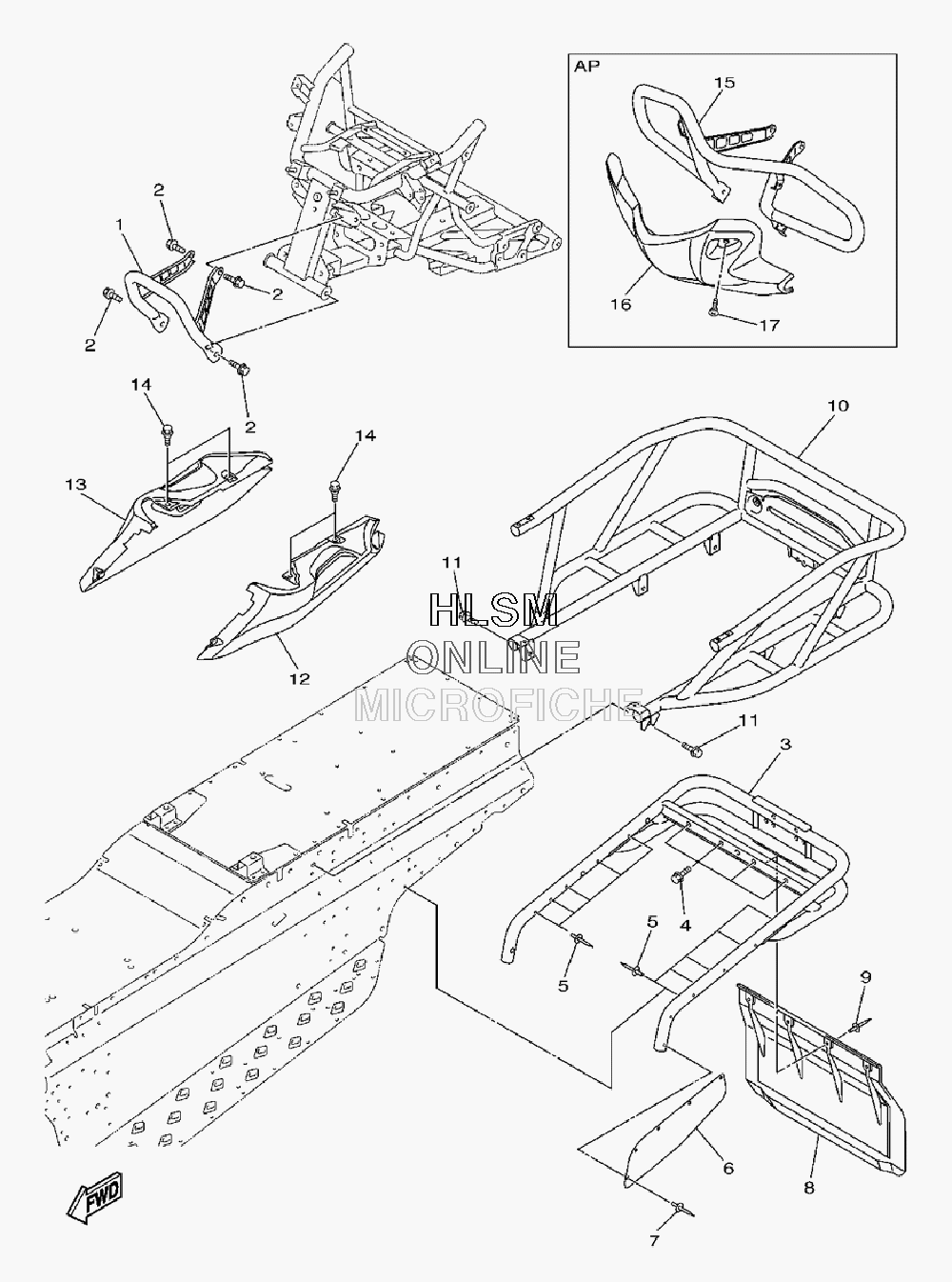

BUMPER - FRONT AND REAR для Yamaha VENTURE LITE 2-PASS - 2009 года выпуска`
-
№АртикулНазвание
-
18GC-77511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38GJ-77541-10-00 BUMPER, REAR 1BUMPER, REAR 1
-
495822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
590267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
68GJ-77595-00-00 FLAPFLAP
-
790267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
88CR-K7595-01-00 FLAP, BLACKFLAP, BLACK
-
990267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
108GJ-77540-00-00 REAR BUMPER COMP.REAR BUMPER COMP.
-
1195822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
128GJ-77563-01-00 COVER, 3COVER, 3
-
138GJ-77564-01-00 COVER, 4COVER, 4
-
1490109-06220-00 BOLTBOLT
-
158GR-77511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
168GR-77555-00-00 PROTECTOR 5PROTECTOR 5
-
1790149-06263-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
