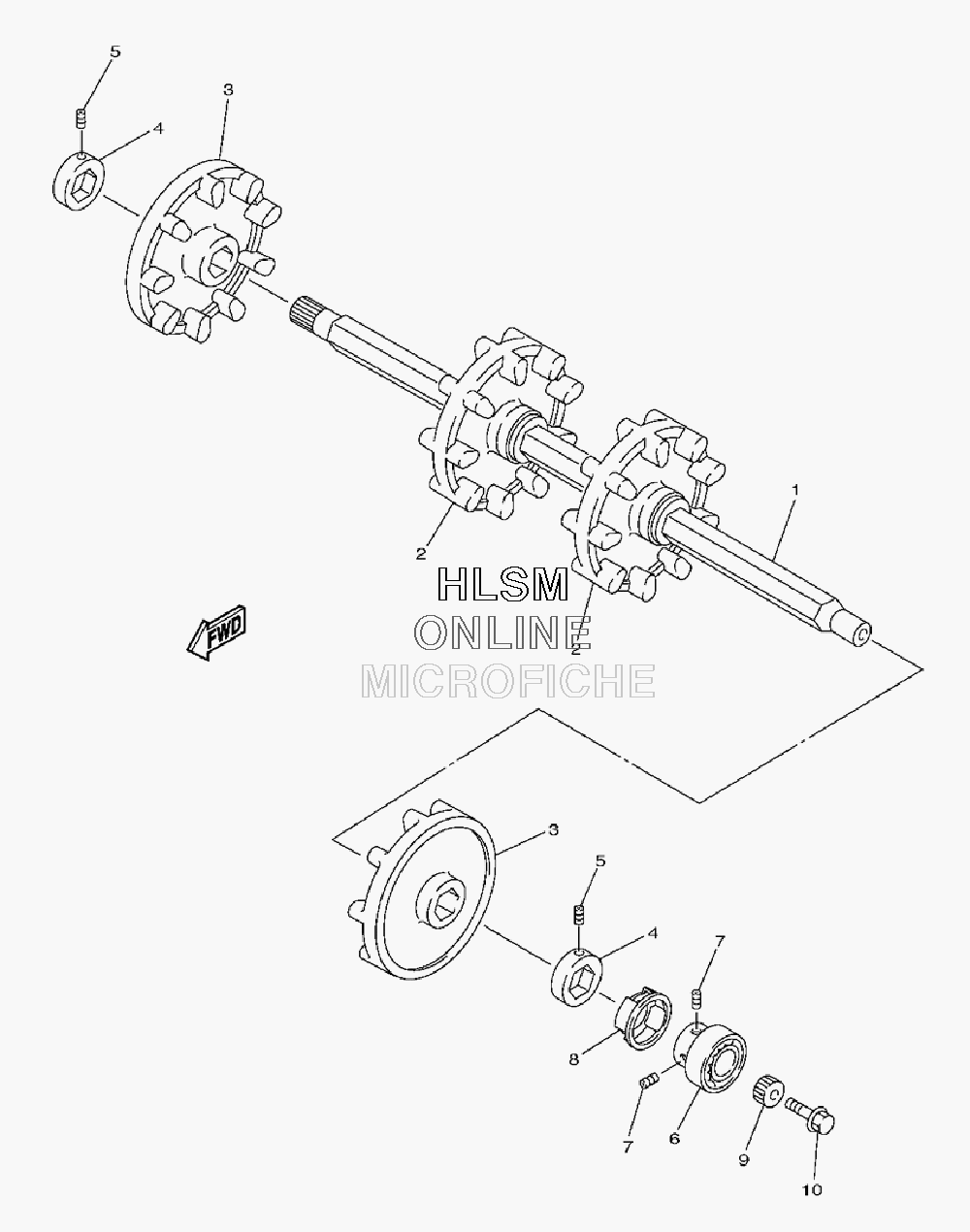

DRIVE TRAIN ASSEMBLY для Yamaha RS VENTURE GT 2-PASS - 2009 года выпуска`
-
№АртикулНазвание
-
18HF-47511-00-00 AXLE, FRONTAXLE, FRONT
-
28BW-47531-10-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
38BW-47532-20-00 WHEEL, SPROCKET 2WHEEL, SPROCKET 2
-
48HF-47526-00-00 COLLARCOLLAR
-
590113-06039-00 BOLT, SETBOLT, SET
-
693306-20589-00 BEARINGBEARING
-
790113-06064-00 BOLT, SETBOLT, SET
-
88FN-47377-00-00 CAPCAP
-
98EK-47715-00-00 JOINTJOINT
-
1095822-10025-00 BOLT, FLANGEBOLT, FLANGE
