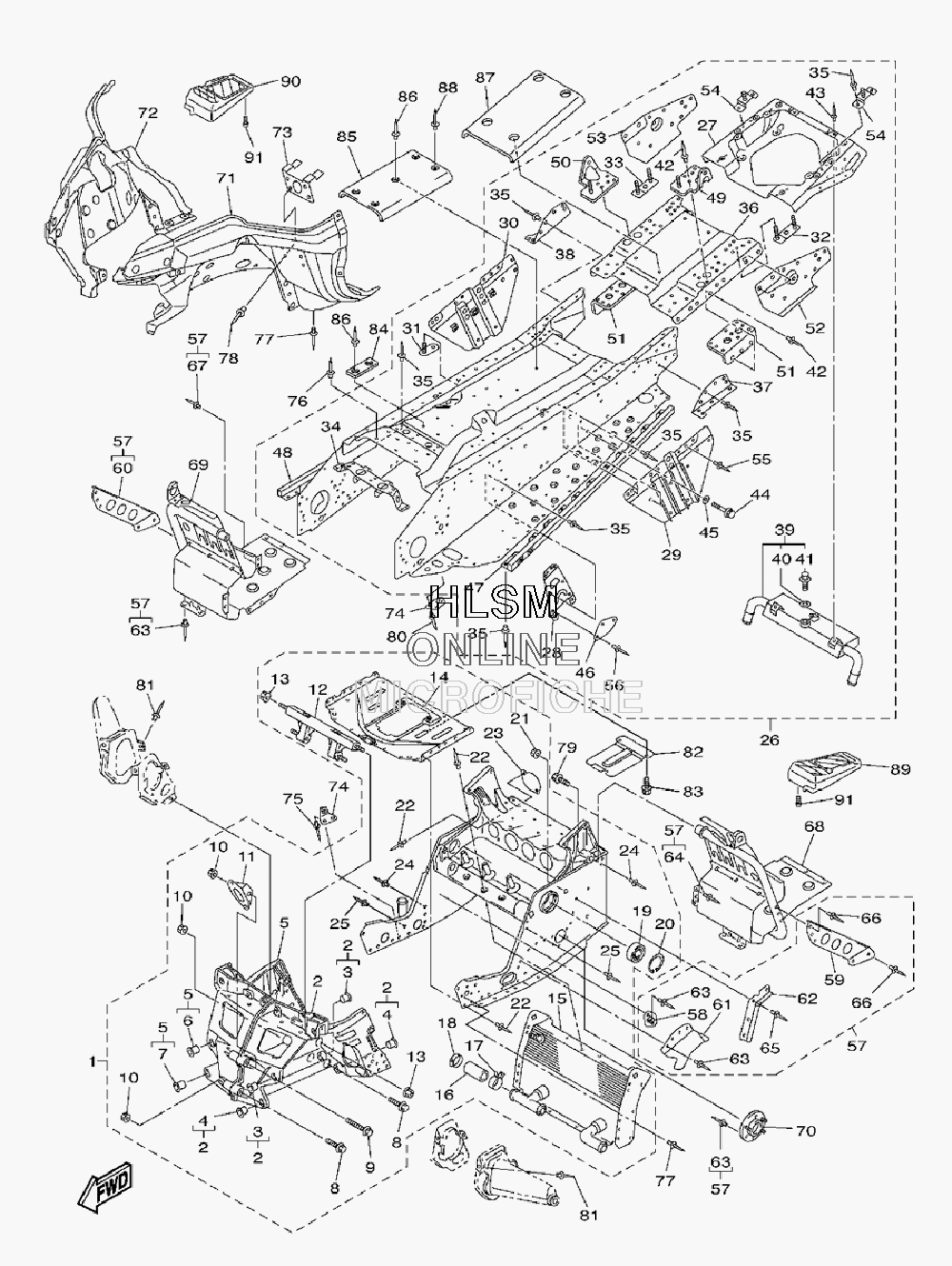

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RS VENTURE 2-PASS - 2009 года выпуска`
-
№АртикулНазвание
-
18ET-21940-10-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-11-00 BULKHEADBULKHEAD
-
390381-15001-00 BUSH, SOLIDBUSH, SOLID
-
490381-16001-00 BUSH, SOLIDBUSH, SOLID
-
58FA-W2198-11-00 BULKHEAD 2BULKHEAD 2
-
690381-15001-00 BUSH, SOLIDBUSH, SOLID
-
790381-16001-00 BUSH, SOLIDBUSH, SOLID
-
895827-08060-00 BOLT, FLANGEBOLT, FLANGE
-
995827-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
118FA-2128A-01-00 BRACKET, REGULATORBRACKET, REGULATOR
-
128FG-21947-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
1395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
148FR-2193A-00-00 PROTECTORPROTECTOR
-
158ET-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
168FA-12551-00-00 HOSE 7HOSE 7
-
1790467-28046-00 CLIP, SCISSORCLIP, SCISSOR
-
1890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1993306-20650-00 BEARINGBEARING
-
2099009-62500-00 CIRCLIPCIRCLIP
-
2195607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2290267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
238ES-2131D-00-00 PLATE, COVERPLATE, COVER
-
2490267-48176-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
-
2590267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
268ET-21950-20-00 REAR FRAME COMP.REAR FRAME COMP.
-
278FA-W2199-10-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
288ET-21943-01-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
298ET-21944-00-00 BRACKET, RR. TRACK SUSPENSIONBRACKET, RR. TRACK SUSPENSION
-
308ET-21954-00-00 BRACKET, RR. TRACK SUSPENSIONBRACKET, RR. TRACK SUSPENSION
-
318CR-2194N-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
328ET-2194X-00-00 BRACKET 1BRACKET 1
-
338ET-2195X-00-00 BRACKET 2BRACKET 2
-
348ES-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
3590267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
368ET-21916-01-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
378ET-21963-00-00 PATCH 3PATCH 3
-
388ET-21964-00-00 PATCH 4PATCH 4
-
398ET-1241A-02-00 HEAT EXCHANGER ASSY 4HEAT EXCHANGER ASSY 4
-
4090210-06006-00 WASHER, SEALWASHER, SEAL
-
4195812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4290267-47197-00 RIVET, BLIND (4.7X19.5 SILVER)RIVET, BLIND (4.7X19.5 SILVER)
-
4390267-48095-00 RIVET, BLIND (4.8X12.6 SILVER)RIVET, BLIND (4.8X12.6 SILVER)
-
4495814-10020-00 BOLT, FLANGEBOLT, FLANGE
-
4590201-10064-00 WASHER, PLATEWASHER, PLATE
-
468ET-21953-00-00 BRACKET, MAIN TRACK 2BRACKET, MAIN TRACK 2
-
478ET-21926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
488ET-21936-00-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
498ET-21946-00-00 BRACKET, SEAT FITTINGBRACKET, SEAT FITTING
-
508ET-21956-00-00 BRACKET, SEAT FITTING 1BRACKET, SEAT FITTING 1
-
518ET-21988-00-00 PATCH 8PATCH 8
-
528ET-21989-00-00 PATCH 9PATCH 9
-
538ET-21997-00-00 PATCH 10PATCH 10
-
548ET-2196G-00-00 BRACKET 4BRACKET 4
-
5590267-48016-00 RIVET, BLIND (4.8X16.4 YELLOW)RIVET, BLIND (4.8X16.4 YELLOW)
-
5690267-48176-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
-
578FK-W2195-20-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
588CR-21939-01-00 BRACKET, CHAIN HOUSINGBRACKET, CHAIN HOUSING
-
598FU-2196M-00-00 BRACKET, 5BRACKET, 5
-
608FU-2197M-00-00 BRACKET, 6BRACKET, 6
-
618FP-2198G-00-00 COVER 2COVER 2
-
628FA-21999-00-00 CLAMP, WIRE HARNESSCLAMP, WIRE HARNESS
-
6390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
6490267-47197-00 RIVET, BLIND (4.7X19.5 SILVER)RIVET, BLIND (4.7X19.5 SILVER)
-
6590267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
6690267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
6790267-47186-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
688FU-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
698FU-21970-01-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
708EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
718ES-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
728FA-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
738FA-21972-01-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
748FA-2196F-00-00 BRACKET 3BRACKET 3
-
7590267-48083-00 RIVET,BLIND (4.8X15.2 SILVER)RIVET,BLIND (4.8X15.2 SILVER)
-
7690267-48169-00 RIVET, BLIND (4.8X14.1 BLACK)RIVET, BLIND (4.8X14.1 BLACK)
-
7790267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
7890267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
7995822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8090267-48095-00 RIVET, BLIND (4.8X12.6 SILVER)RIVET, BLIND (4.8X12.6 SILVER)
-
8190267-47195-00 RIVET, BLIND (4.7X16.4 YELLOWRIVET, BLIND (4.7X16.4 YELLOW
-
828FR-2197E-00-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
8392012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
848FA-21998-00-00 SPACERSPACER
-
858FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8690267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
878ET-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8890267-47004-00 RIVET, BLIND (4.7X13.1 YELLOW)RIVET, BLIND (4.7X13.1 YELLOW)
-
898DM-27431-02-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
908DM-27441-02-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
9197702-50020-00 SCREW, TAPPINGSCREW, TAPPING
