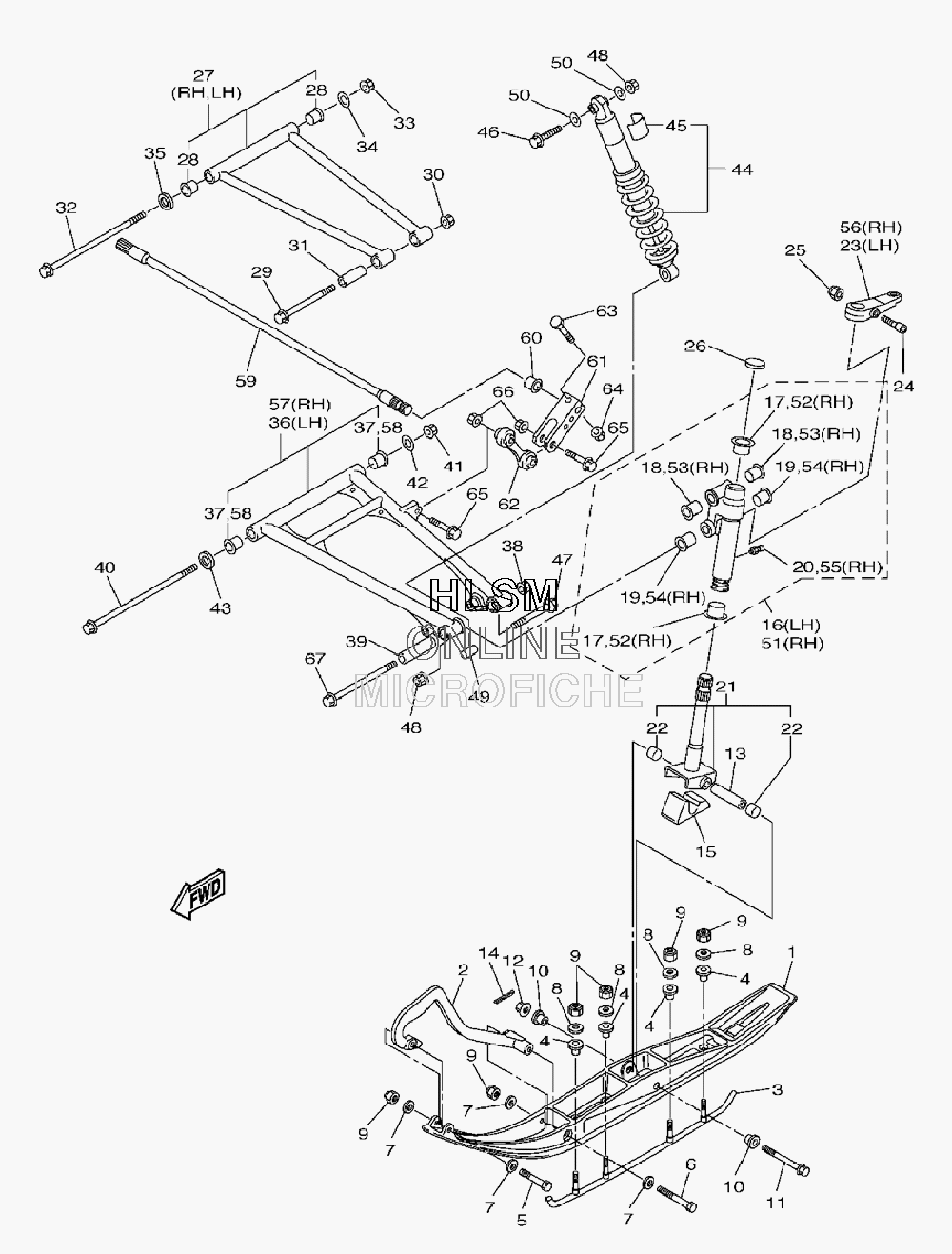

SUSPENSION - FRONT W/ SKI ASSY для Yamaha RS VENTURE 2-PASS - 2009 года выпуска`
-
№АртикулНазвание
-
18FE-F3711-00-00 SKI 1, BLACKSKI 1, BLACK
-
28DM-F3712-00-00 BLACK 8DM HANDLE PLASTICBLACK 8DM HANDLE PLASTIC
-
38EN-F3731-01-00 RUNNER 1RUNNER 1
-
48EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
59702M-08055-00 BOLTBOLT
-
69702M-08100-00 BOLTBOLT
-
790201-08784-00 WASHER, PLATEWASHER, PLATE
-
890201-086P8-00 WASHER, PLATEWASHER, PLATE
-
99570M-08300-00 NUT, NYLONNUT, NYLON
-
108EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390387-1012H-00 COLLARCOLLAR
-
1491401-20020-00 PIN, COTTERPIN, COTTER
-
158CR-23743-10-00 STOPPER 1STOPPER 1
-
168ES-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1790381-25115-00 BUSH, SOLIDBUSH, SOLID
-
1890381-15N50-00 BUSH, SOLIDBUSH, SOLID
-
1990381-18N51-00 BUSH, SOLIDBUSH, SOLID
-
2093700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
218ES-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2290384-16N51-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
238FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
2490110-08N53-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2595607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
263YK-22472-40-00 CAP, CASECAP, CASE
-
278ES-23540-20-00 FRONT UPPER ARM COMP.FRONT UPPER ARM COMP.
-
2890381-15N50-00 BUSH, SOLIDBUSH, SOLID
-
2990105-10N51-00 BOLT, FLANGEBOLT, FLANGE
-
3095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3190387-10N58-00 COLLARCOLLAR
-
3290105-10N54-00 BOLT, FLANGEBOLT, FLANGE
-
3395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3490201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3590209-15N50-00 WASHERWASHER
-
368ES-23570-20-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
3790381-16N51-00 BUSH, SOLIDBUSH, SOLID
-
3895607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3990387-12N54-00 COLLARCOLLAR
-
4090105-10N55-00 BOLT, FLANGEBOLT, FLANGE
-
4195607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4290201-106F2-00 WASHER, PLATEWASHER, PLATE
-
4390209-15N50-00 WASHERWASHER
-
448ET-2376A-30-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
454AA-22259-60-00 LABEL, WARNINGLABEL, WARNING
-
4690105-10232-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4790105-10392-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4895607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4990387-10N59-00 COLLARCOLLAR
-
5090201-106F2-00 WASHER, PLATEWASHER, PLATE
-
518ES-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
5290381-25115-00 BUSH, SOLIDBUSH, SOLID
-
5390381-15N50-00 BUSH, SOLIDBUSH, SOLID
-
5490381-18N51-00 BUSH, SOLIDBUSH, SOLID
-
5593700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
568FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
578ES-23580-20-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
5890381-16N51-00 BUSH, SOLIDBUSH, SOLID
-
598FG-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
608FG-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
618FG-2386L-00-00 ARM, STABILIZERARM, STABILIZER
-
628ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6390101-06765-00 BOLTBOLT
-
6495604-06200-00 NUT, U FLANGENUT, U FLANGE
-
6595814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
6695604-08200-00 NUT, U FLANGENUT, U FLANGE
-
6790105-12N54-00 BOLT, FLANGEBOLT, FLANGE
