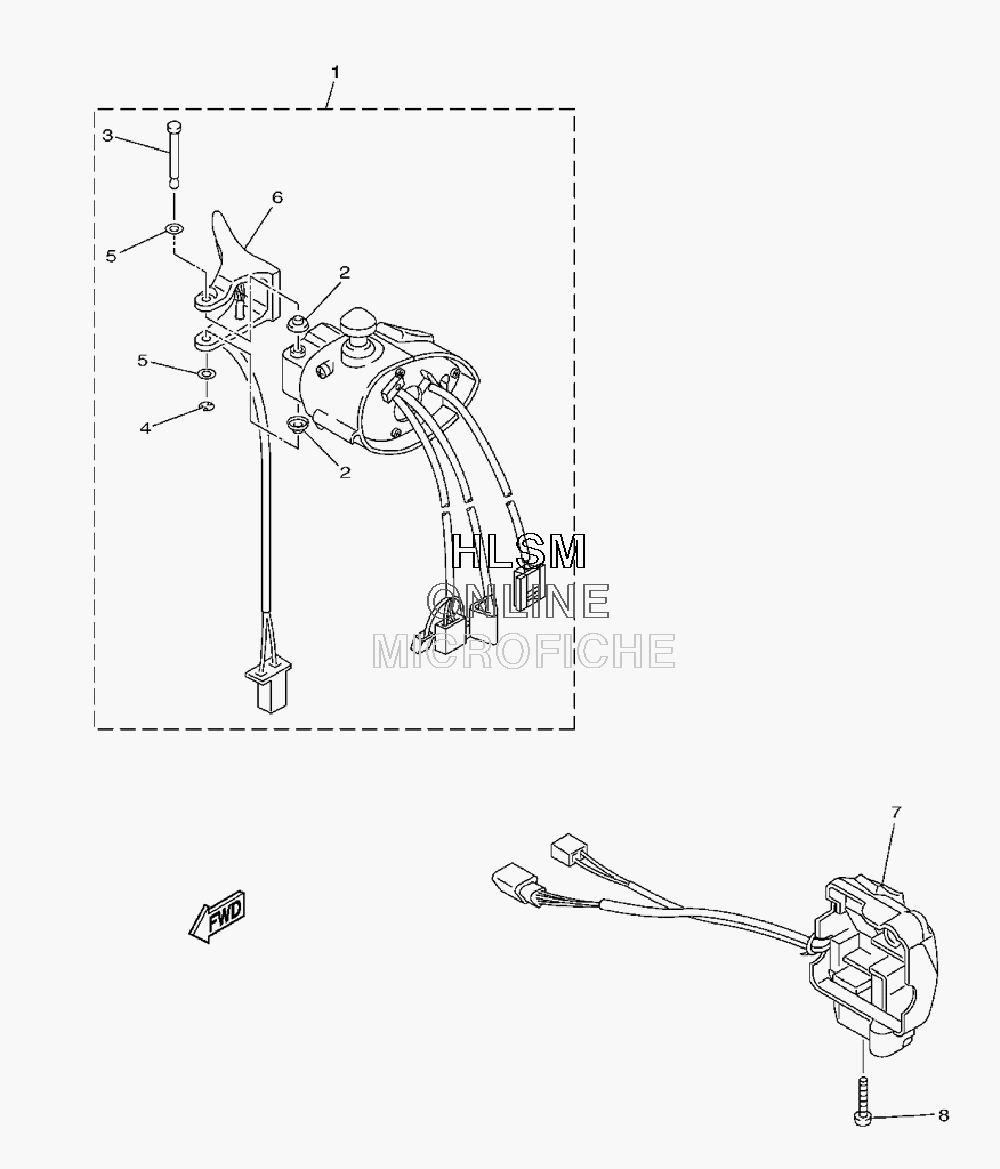

HANDLEBAR - SWITCHES AND LEVERS для Yamaha RS VECTOR - 2009 года выпуска`
-
№АртикулНазвание
-
18FP-82720-01-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
285G-83956-00-00 CAP 1CAP 1
-
38R6-8399F-00-00 SHAFTSHAFT
-
499001-04600-00 CIRCLIPCIRCLIP
-
58FP-82558-00-00 WASHERWASHER
-
68FP-82970-00-00 THUMB WARMER ASSYTHUMB WARMER ASSY
-
78GF-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
898502-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
