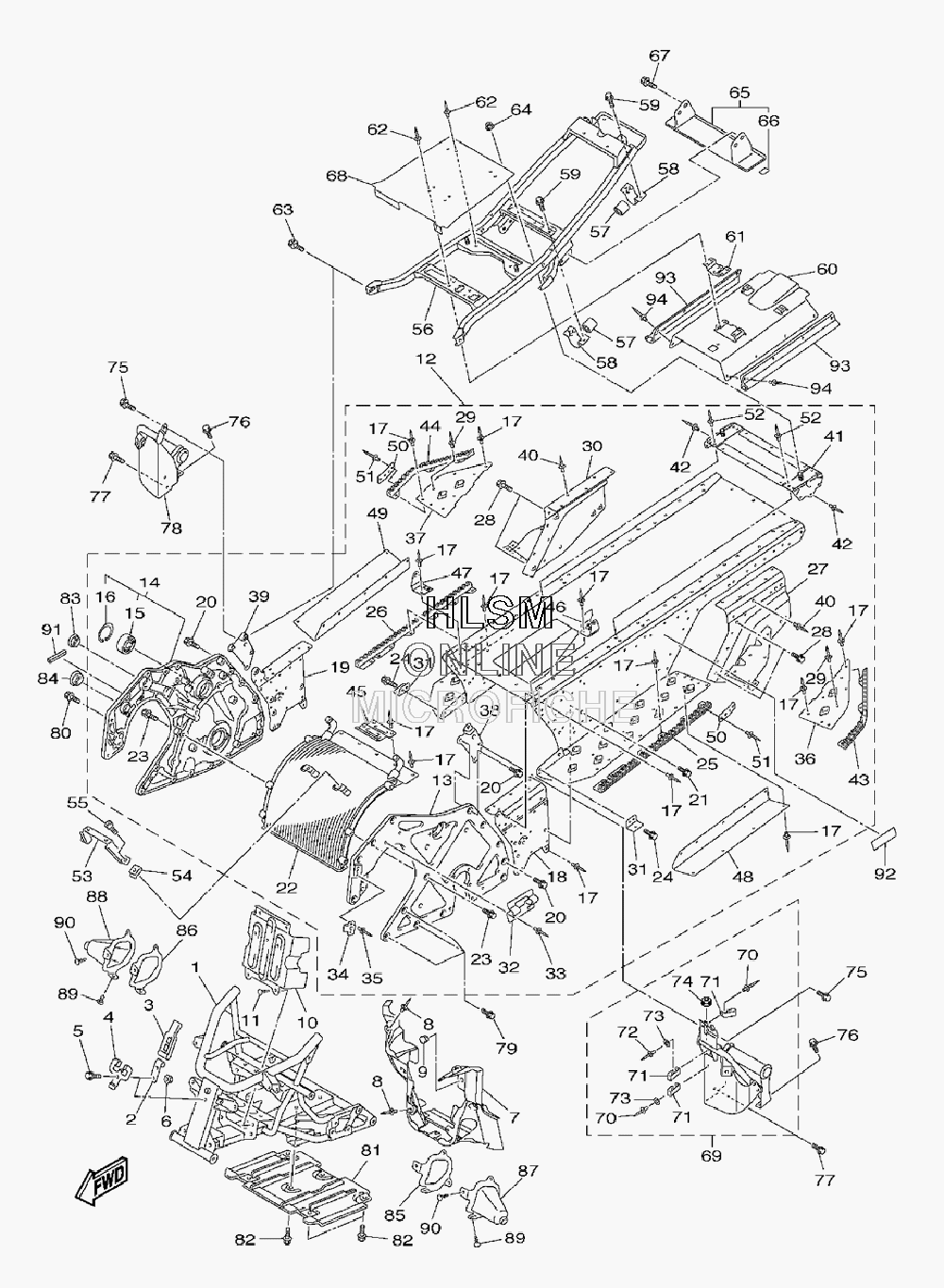

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha PHAZER RTX - 2009 года выпуска`
-
№АртикулНазвание
-
18GK-21940-01-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28GC-2175V-00-00 BRACKET 3BRACKET 3
-
359V-21646-00-00 BANDBAND
-
48GC-2175W-00-00 BRACKET 4BRACKET 4
-
592017-05040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
695702-05500-00 NUT, FLANGE (SILVER)NUT, FLANGE (SILVER)
-
78GC-21912-01-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
890267-48086-00 RIVET, BLIND (4.8X19 BLACK)RIVET, BLIND (4.8X19 BLACK)
-
990338-12192-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
108GC-2195A-10-00 PROTECTOR, FRAME APROTECTOR, FRAME A
-
1190269-05003-00 RIVETRIVET
-
128GK-21950-40-00 REAR FRAME COMP.REAR FRAME COMP.
-
138GC-21991-00-00 REINF., PANELL FRAME 1REINF., PANELL FRAME 1
-
148GK-21930-20-00 HOUSING, REINF SUB-ASSY (R.H)HOUSING, REINF SUB-ASSY (R.H)
-
1593306-20511-00 BEARINGBEARING
-
1699009-52500-00 CIRCLIPCIRCLIP
-
1790267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
188GK-21943-00-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
198GK-21953-00-00 BRACKET, MAIN TRACK 2BRACKET, MAIN TRACK 2
-
2095022-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2195822-08012-00 BOLT, FLANGEBOLT, FLANGE
-
228GC-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
2395822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2490109-065G4-00 BOLTBOLT
-
258GC-21926-01-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
268GC-21936-01-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
278GK-21944-00-00 BRACKET, RR.TRACK SUSPENSIONBRACKET, RR.TRACK SUSPENSION
-
2895822-08014-00 BOLT, FLANGEBOLT, FLANGE
-
2990267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
308GK-21954-00-00 BRACKET, RR.TRACK SUSPENSIONBRACKET, RR.TRACK SUSPENSION
-
318GC-21967-00-00 PATCH 7PATCH 7
-
328GC-21973-00-00 HOOKHOOK
-
3390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
342TK-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
3590267-32192-00 RIVET, BLIND (3.2X13.8)RIVET, BLIND (3.2X13.8)
-
368GC-27452-00-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
378GC-27462-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
388GC-21963-00-00 PATCH 3PATCH 3
-
398GC-21964-00-00 PATCH 4PATCH 4
-
4090267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
418GK-21341-00-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
4290267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
438GC-21927-01-00 REINFORCEMENT, RR. FOOTREST 1REINFORCEMENT, RR. FOOTREST 1
-
448GC-21937-01-00 REINFORCEMENT, RR. FOOTREST 2REINFORCEMENT, RR. FOOTREST 2
-
458GC-2164G-00-00 STAY 2STAY 2
-
468GC-21238-00-00 BRACKETBRACKET
-
478GC-21239-00-00 BRACKET 2BRACKET 2
-
488GC-21961-00-00 PATCH 1PATCH 1
-
498GC-21962-00-00 PATCH 2PATCH 2
-
508GC-21988-00-00 PATCH 8PATCH 8
-
5190267-48010-00 RIVET, BLIND (4.8X12 YELLOW)RIVET, BLIND (4.8X12 YELLOW)
-
5290267-47197-00 RIVET, BLIND (4.7X19.5 SILVER)RIVET, BLIND (4.7X19.5 SILVER)
-
538GC-2164F-00-00 STAY 1STAY 1
-
5490183-06053-00 NUT, SPRINGNUT, SPRING
-
5591312-06012-00 BOLTBOLT
-
568GK-21160-00-00 SEAT RAIL COMPSEAT RAIL COMP
-
578GC-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
588GC-21121-00-00 BRACKET, DAMPERBRACKET, DAMPER
-
5995822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
608GC-2199H-10-00 SHIELD, HEATSHIELD, HEAT
-
618GC-1467H-00-00 BRACKET, SILENCER 1BRACKET, SILENCER 1
-
6290267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
6395822-10016-00 BOLT, FLANGEBOLT, FLANGE
-
6495607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
658GC-24708-01-00 SEAT BRACKET ASSYSEAT BRACKET ASSY
-
668GC-77151-00-00 PAD 1PAD 1
-
6795822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
688GC-21917-00-00 PANEL, SUB FRAME 6PANEL, SUB FRAME 6
-
698GJ-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
7090267-48010-00 RIVET, BLIND (4.8X12 YELLOW)RIVET, BLIND (4.8X12 YELLOW)
-
7190465-08368-00 CLAMPCLAMP
-
7290267-48083-00 RIVET,BLIND (4.8X15.2 SILVER)RIVET,BLIND (4.8X15.2 SILVER)
-
7390201-043H7-00 WASHER, PLATEWASHER, PLATE
-
7490480-13163-00 GROMMETGROMMET
-
7595822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
7695022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
7790105-06080-00 BOLT, FLANGEBOLT, FLANGE
-
788GJ-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
7995822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8090105-08190-00 BOLT, FLANGEBOLT, FLANGE
-
818GC-2193A-00-00 PROTECTORPROTECTOR
-
8290109-066G1-00 BOLTBOLT
-
8390480-27001-00 GROMMETGROMMET
-
8490480-40003-00 GROMMETGROMMET
-
858GC-2195E-00-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
868GC-2195F-00-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
878GC-2198F-00-00 COVER 1COVER 1
-
888GC-2198J-00-00 COVER 3COVER 3
-
8990269-05003-00 RIVETRIVET
-
9090269-05002-00 RIVETRIVET
-
918GL-77319-00-00 DAMPER 1DAMPER 1
-
928GC-2179D-20-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
-
938GC-21852-00-00 DAMPERDAMPER
-
9490267-50010-00 RIVET, BLIND (5X23.6)RIVET, BLIND (5X23.6)
