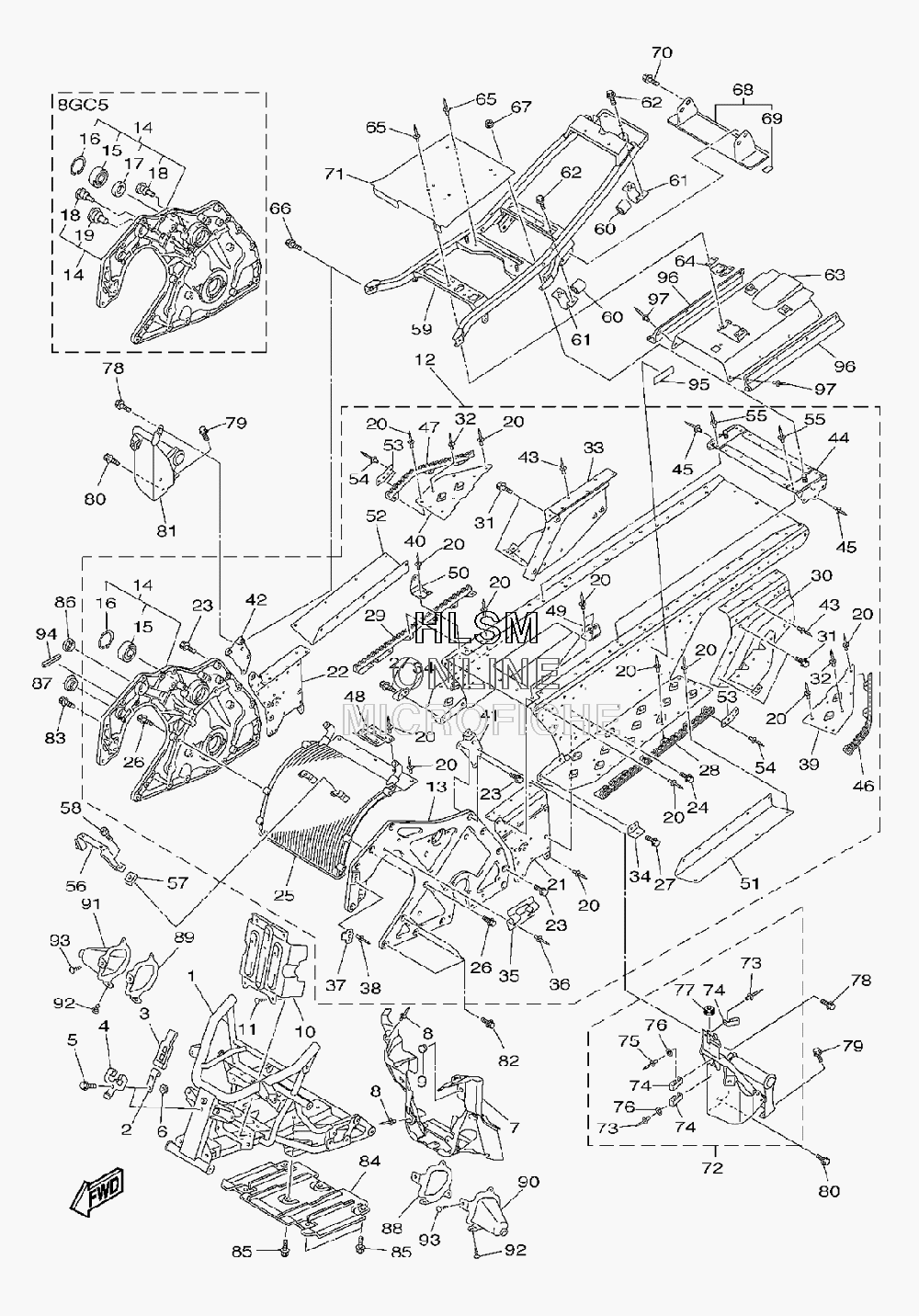

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha PHAZER GT - 2009 года выпуска`
-
№АртикулНазвание
-
18GK-21940-01-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28GC-2175V-00-00 BRACKET 3BRACKET 3
-
359V-21646-00-00 BANDBAND
-
48GC-2175W-00-00 BRACKET 4BRACKET 4
-
592017-05040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
695702-05500-00 NUT, WITH WASHERNUT, WITH WASHER
-
78GC-21912-01-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
890267-48086-00 RIVET, BLIND (4.8X19 BLACK)RIVET, BLIND (4.8X19 BLACK)
-
990338-12192-00 PLUGPLUG
-
108GC-2195A-10-00 PROTECTOR, FRAME APROTECTOR, FRAME A
-
1190269-05003-00 RIVETRIVET
-
128GK-21950-40-00 REAR FRAME COMP.REAR FRAME COMP.
-
128GC-21950-20-00 REAR FRAME COMP.REAR FRAME COMP.
-
138GC-21991-00-00 REINF., PANELL FRAME 1REINF., PANELL FRAME 1
-
148GK-21930-20-00 HOUSING, REINF SUB-ASSY (R.H)HOUSING, REINF SUB-ASSY (R.H)
-
148GC-21930-10-00 HOUSING, REINF SUB-ASSY (R.H)HOUSING, REINF SUB-ASSY (R.H)
-
1593306-20511-00 BEARINGBEARING
-
1699009-52500-00 CIRCLIPCIRCLIP
-
1793102-26398-00 OIL SEALOIL SEAL
-
1890338-07008-00 PLUGPLUG
-
1990338-12008-00 PLUGPLUG
-
2090267-47195-00 RIVET, BLIND (4.7X16.4 YELLOWRIVET, BLIND (4.7X16.4 YELLOW
-
218GK-21943-00-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
228GK-21953-00-00 BRACKET, MAIN TRACK 2BRACKET, MAIN TRACK 2
-
2395022-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2495822-08012-00 BOLT, FLANGEBOLT, FLANGE
-
258GC-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
2695822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2790109-065G4-00 BOLTBOLT
-
288GC-21926-01-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
298GC-21936-01-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
308GK-21944-00-00 BRACKET, RR.TRACK SUSPENSIONBRACKET, RR.TRACK SUSPENSION
-
3195822-08014-00 BOLT, FLANGEBOLT, FLANGE
-
3290267-47195-00 RIVET, BLIND (4.7X16.4 YELLOWRIVET, BLIND (4.7X16.4 YELLOW
-
338GK-21954-00-00 BRACKET, RR. TRACK SUSPENSIONBRACKET, RR. TRACK SUSPENSION
-
348GC-21967-00-00 PATCH 7PATCH 7
-
358GC-21973-00-00 HOOKHOOK
-
3690267-47195-00 RIVET, BLIND (4.7X16.4 YELLOWRIVET, BLIND (4.7X16.4 YELLOW
-
372TK-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
3890267-32192-00 RIVET, BLIND (3.2X13.8)RIVET, BLIND (3.2X13.8)
-
398GC-27452-00-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
408GC-27462-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
418GC-21963-00-00 PATCH 3PATCH 3
-
428GC-21964-00-00 PATCH 4PATCH 4
-
4390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOWRIVET, BLIND (4.7X16.4 YELLOW
-
448GK-21341-00-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
4590267-47195-00 RIVET, BLIND (4.7X16.4 YELLOWRIVET, BLIND (4.7X16.4 YELLOW
-
468GC-21927-01-00 REINFORCEMENT, RR. FOOTREST 1REINFORCEMENT, RR. FOOTREST 1
-
478GC-21937-01-00 REINFORCEMENT, RR. FOOTREST 2REINFORCEMENT, RR. FOOTREST 2
-
488GC-2164G-00-00 STAY 2STAY 2
-
498GC-21238-00-00 BRACKETBRACKET
-
508GC-21239-00-00 BRACKET 2BRACKET 2
-
518GC-21961-00-00 PATCH 1PATCH 1
-
528GC-21962-00-00 PATCH 2PATCH 2
-
538GC-21988-00-00 PATCH 8PATCH 8
-
5490267-48010-00 RIVET, BLIND (4.8X12 YELLOW)RIVET, BLIND (4.8X12 YELLOW)
-
5590267-47197-00 RIVET, BLIND (4.7X19.5 SILVERRIVET, BLIND (4.7X19.5 SILVER
-
568GC-2164F-00-00 STAY 1STAY 1
-
5790183-06053-00 NUT, SPRINGNUT, SPRING
-
5891312-06012-00 BOLTBOLT
-
598GK-21160-00-00 SEAT RAIL COMPSEAT RAIL COMP
-
608GC-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
618GC-21121-00-00 BRACKET, DAMPERBRACKET, DAMPER
-
6295822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
638GC-2199H-10-00 SHIELD, HEATSHIELD, HEAT
-
648GC-1467H-00-00 BRACKET, SILENCER 1BRACKET, SILENCER 1
-
6590267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
6695822-10016-00 BOLT, FLANGEBOLT, FLANGE
-
6795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
688GC-24708-01-00 SEAT BRACKET ASSYSEAT BRACKET ASSY
-
698GC-77151-00-00 PAD 1PAD 1
-
7095822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
718GC-21917-00-00 PANEL, SUB FRAME 6PANEL, SUB FRAME 6
-
728GJ-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
7390267-48010-00 RIVET, BLIND (4.8X12 YELLOW)RIVET, BLIND (4.8X12 YELLOW)
-
7490465-08368-00 CLAMPCLAMP
-
7590267-48083-00 RIVET, BLIND (4.8X15.2 SILVERRIVET, BLIND (4.8X15.2 SILVER
-
7690201-043H7-00 WASHER, PLATEWASHER, PLATE
-
7790480-13163-00 GROMMETGROMMET
-
7895822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
7995022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
8090105-06080-00 BOLT, FLANGEBOLT, FLANGE
-
818GJ-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
8295822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8390105-08190-00 BOLT, FLANGEBOLT, FLANGE
-
848GC-2193A-00-00 PROTECTORPROTECTOR
-
8590109-066G1-00 BOLTBOLT
-
8690480-27001-00 GROMMETGROMMET
-
8790480-40003-00 GROMMETGROMMET
-
888GC-2195E-00-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
898GC-2195F-00-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
908GC-2198F-00-00 COVER 1COVER 1
-
918GC-2198J-00-00 COVER 3COVER 3
-
9290269-05003-00 RIVETRIVET
-
9390269-05002-00 RIVETRIVET
-
948GL-77319-00-00 DAMPER 1DAMPER 1
-
958GC-2179D-20-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
-
968GC-21852-00-00 DAMPERDAMPER
-
9790267-50010-00 RIVET, BLIND (5X23.6)RIVET, BLIND (5X23.6)
