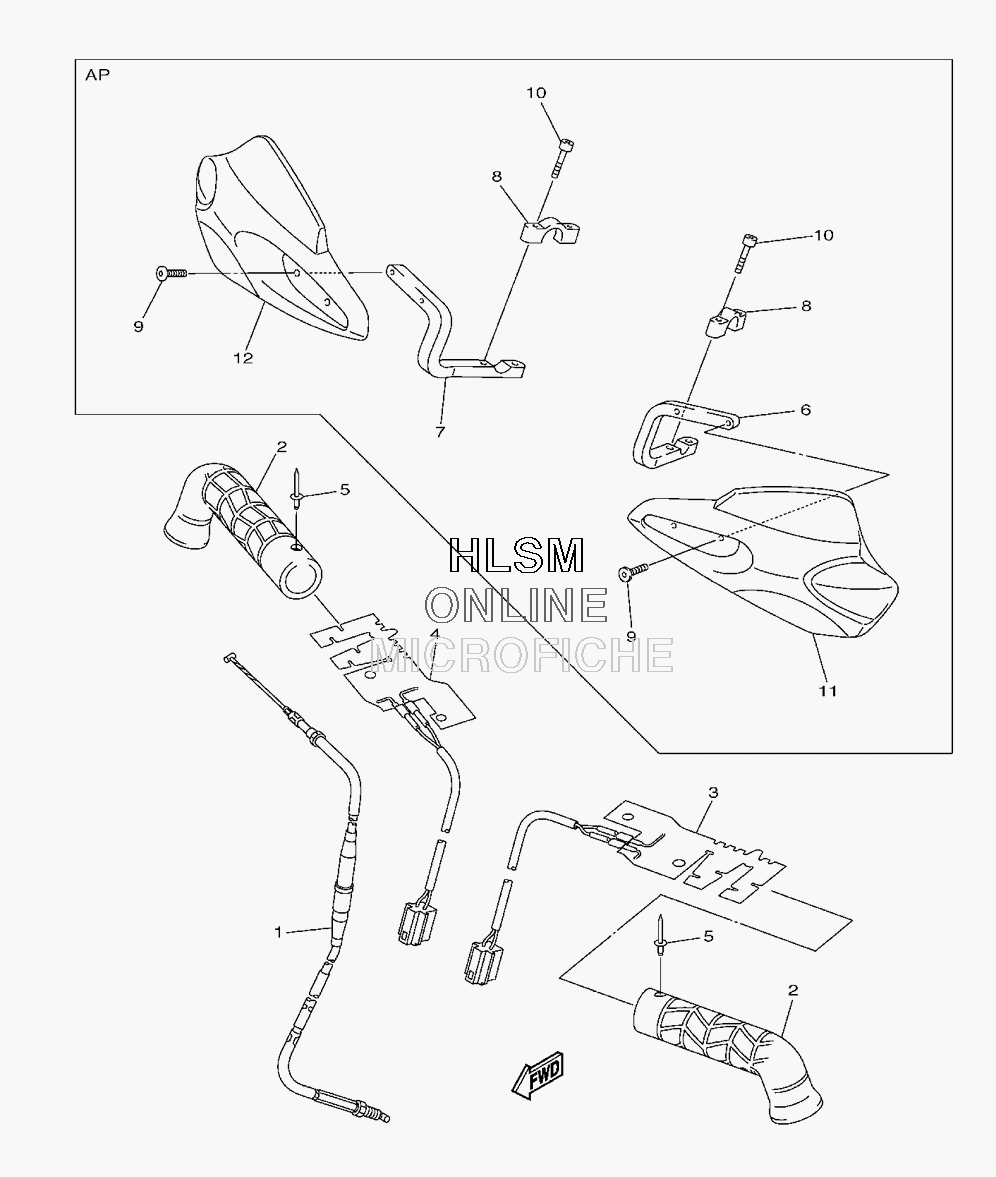

HANDLEBAR - CABLES AND GRIPS для Yamaha FX NYTRO MTX - 2009 года выпуска`
-
№АртикулНазвание
-
18HA-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
28GF-26241-00-00 GRIPGRIP
-
38HA-2626A-00-00 GRIP, WARMERGRIP, WARMER
-
48HA-2626A-10-00 GRIP, WARMERGRIP, WARMER
-
590267-48014-00 RIVET, BLIND (4.8X15.1 BLACK)RIVET, BLIND (4.8X15.1 BLACK)
-
68GL-2612L-01-00 BRACKET 3BRACKET 3
-
78GL-2612M-01-00 BRACKET 4BRACKET 4
-
88GL-2612K-00-00 BRACKET 2BRACKET 2
-
990109-06234-00 BOLTBOLT
-
1091312-05030-00 BOLTBOLT
-
118GL-26141-00-00 GUARD, BRUSH 1GUARD, BRUSH 1
-
128GL-26142-00-00 GUARD, BRUSH 2GUARD, BRUSH 2
