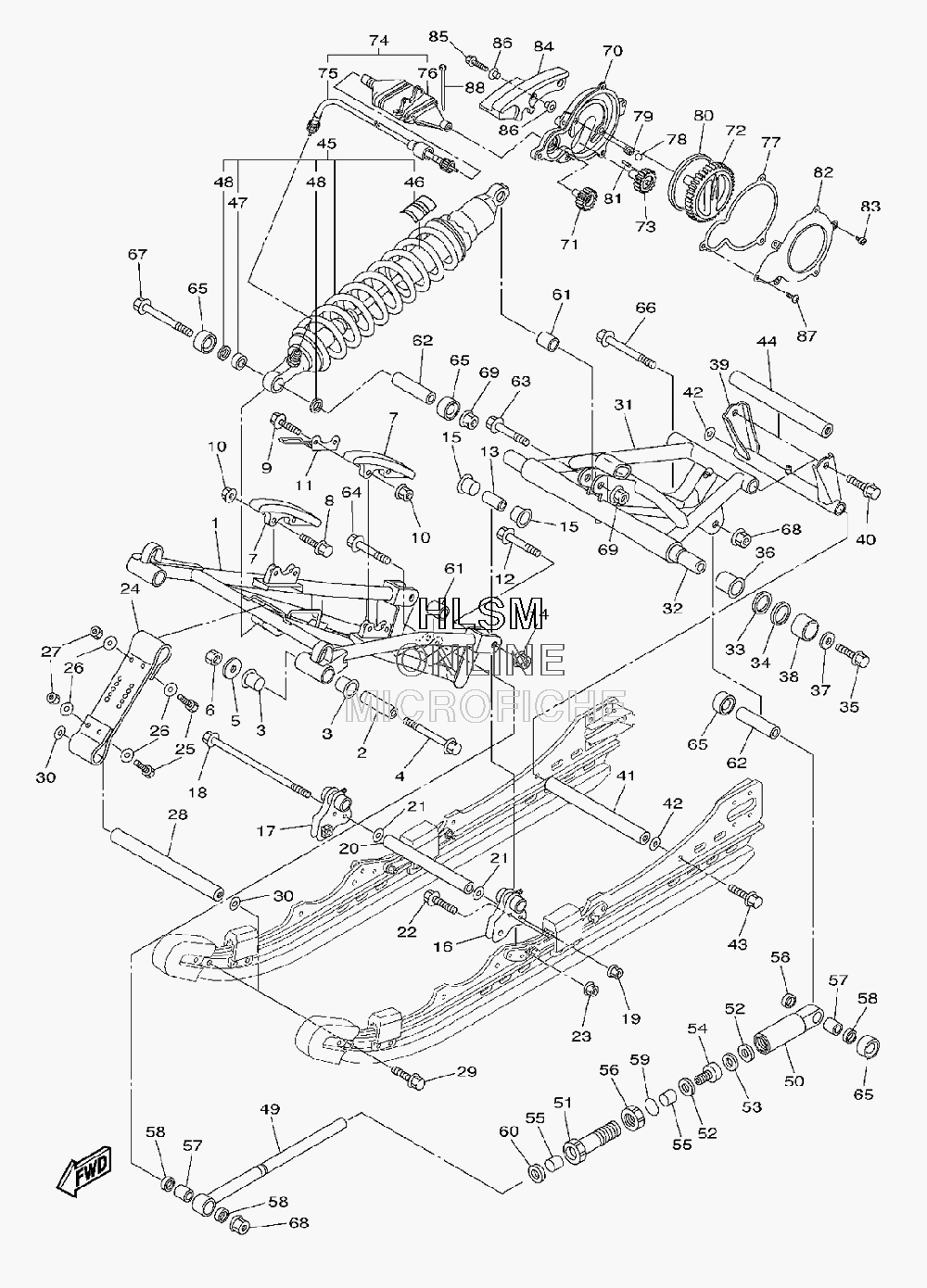

PIVOT ARM W/ SHOCK для Yamaha APEX RTX - 2009 года выпуска`
-
№АртикулНазвание
-
18FT-47331-01-00 ARM, PIVOT 1ARM, PIVOT 1
-
290387-10042-00 COLLARCOLLAR
-
390386-22002-00 BUSHBUSH
-
490105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
590201-104A7-00 WASHER, PLATEWASHER, PLATE
-
690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
78F3-47422-01-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890105-06557-00 BOLT, FLANGEBOLT, FLANGE
-
990105-06601-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-06200-00 NUT-UNUT-U
-
118FR-47445-00-00 PROTECTORPROTECTOR
-
1290105-10090-00 BOLT, FLANGEBOLT, FLANGE
-
1390387-10033-00 COLLARCOLLAR
-
1495607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1590386-15002-00 BUSHBUSH
-
168FU-47415-11-00 BRACKET 1BRACKET 1
-
178FU-47418-11-00 BRACKET 4BRACKET 4
-
1890105-08119-00 BOLT, FLANGEBOLT, FLANGE
-
1995607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090387-08037-00 COLLARCOLLAR
-
2190201-08649-00 WASHER, PLATEWASHER, PLATE
-
2295812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
2395602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
248GM-47495-00-00 STOPPER 1STOPPER 1
-
2597002-06025-00 BOLT,HEXAGONBOLT,HEXAGON
-
2690201-06081-00 WASHER, PLATEWASHER, PLATE
-
2795702-06300-00 NUT,FLANGENUT,FLANGE
-
288FU-47485-00-00 SHAFT 3SHAFT 3
-
2990105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
3090201-10126-00 WASHER, PLATEWASHER, PLATE
-
318FU-47332-12-00 ARM, PIVOT 2ARM, PIVOT 2
-
328FU-47475-00-00 SHAFT 2SHAFT 2
-
3390201-251G8-00 WASHER, PLATEWASHER, PLATE
-
3490201-250T6-00 WASHER, PLATEWASHER, PLATE
-
3590105-10146-00 BOLT, FLANGEBOLT, FLANGE
-
3690381-28108-00 BUSH, SOLIDBUSH, SOLID
-
3790201-103U4-00 WASHER, PLATEWASHER, PLATE
-
3890387-25005-00 COLLARCOLLAR
-
398FU-47417-11-00 BRACKET 3BRACKET 3
-
4090105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
418FU-47485-00-00 SHAFT 3SHAFT 3
-
4290201-10136-00 WASHER, PLATEWASHER, PLATE
-
4390105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
448FU-47486-00-00 SHAFT 4SHAFT 4
-
458FR-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
464AA-22259-60-00 LABEL, WARNINGLABEL, WARNING
-
4793315-31758-00 BEARINGBEARING
-
4893109-17071-00 OIL SEALOIL SEAL
-
498FR-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
508FU-4745C-10-00 ROD, CONTROL 3ROD, CONTROL 3
-
518FU-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
528GM-47384-00-00 WASHER (L=7.5)WASHER (L=7.5)
-
538FU-47384-00-00 WASHER (L=7.5)WASHER (L=7.5)
-
538FU-47384-10-00 WASHER (L=5.0)WASHER (L=5.0)
-
538FU-47384-20-00 WASHER (L=10)WASHER (L=10)
-
538GM-47384-00-00 WASHER (L=7.5)WASHER (L=7.5)
-
548FU-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
5590384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
568FU-47368-00-00 NUTNUT
-
5793315-31758-00 BEARINGBEARING
-
5893109-17071-00 OIL SEALOIL SEAL
-
5993210-347A6-00 O-RINGO-RING
-
60C68-43822-00-00 SEAL, TRIM DUSTSEAL, TRIM DUST
-
6190387-1012A-00 COLLARCOLLAR
-
6290387-10034-00 COLLARCOLLAR
-
6395812-10045-00 BOLT,FLANGE (4GB)BOLT,FLANGE (4GB)
-
6490105-102A6-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
658FU-47341-00-00 SPACERSPACER
-
6695817-10070-00 BOLT, FLANGEBOLT, FLANGE
-
6795812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
6890185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6995602-10200-00 NUT, U FLANGENUT, U FLANGE
-
708FU-474A1-00-00 HOUSING, ADJUSTERHOUSING, ADJUSTER
-
718FU-474A2-00-00 GEAR, DRIVEGEAR, DRIVE
-
728FU-474A3-00-00 HANDLE, ADJUSTERHANDLE, ADJUSTER
-
738FU-474A4-00-00 GEAR, STOPPERGEAR, STOPPER
-
748FU-W474A-20-00 ADJUSTER CABLE ASSY.ADJUSTER CABLE ASSY.
-
758FU-474A5-20-00 CABLE, ADJUSTERCABLE, ADJUSTER
-
768FU-47445-01-00 PROTECTORPROTECTOR
-
778FU-474A6-00-00 GASKET, ADJUSTER HOUSINGGASKET, ADJUSTER HOUSING
-
7893501-04011-00 BALLBALL
-
7990501-06M35-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
808FU-474A7-00-00 SEAL, ADJUSTER HANDLESEAL, ADJUSTER HANDLE
-
8193603-12007-00 PIN, DOWELPIN, DOWEL
-
828FU-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
8398502-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
848FU-47441-10-00 SLIDER 1SLIDER 1
-
8590105-06557-00 BOLT, FLANGEBOLT, FLANGE
-
8690387-07717-00 COLLARCOLLAR
-
8790149-06137-00 SCREWSCREW
-
8890464-16061-00 CLAMPCLAMP
