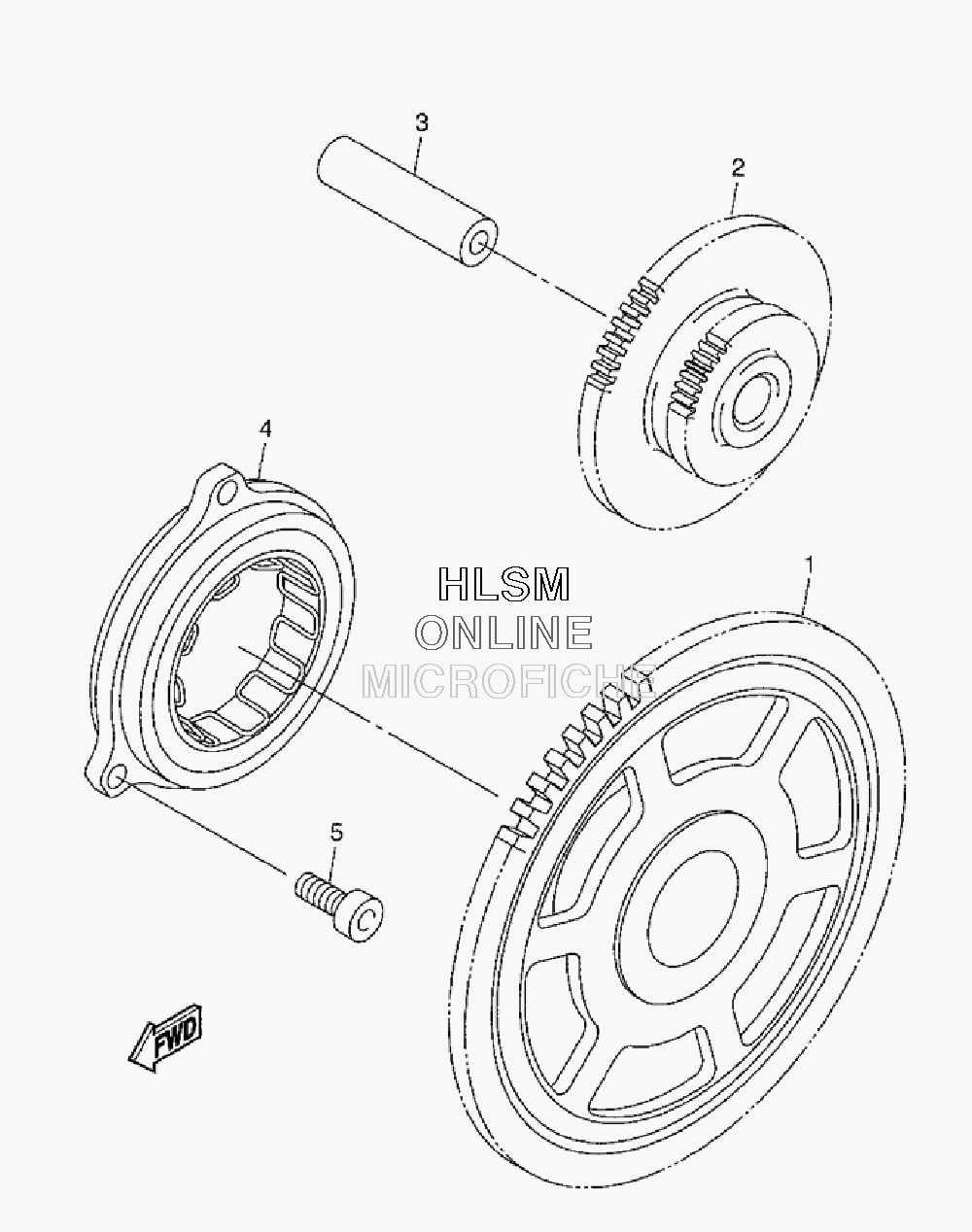

STARTER - REDUCTION GEAR W/ CLUTCH ASSY для Yamaha APEX LTX GT - 2009 года выпуска`
-
№АртикулНазвание
-
18FA-15515-00-00 GEAR 3GEAR 3
-
28FA-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
33LD-15521-00-00 SHAFT 1SHAFT 1
-
48FA-15570-00-00 STARTER CLUTCH ASSYSTARTER CLUTCH ASSY
-
590110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
