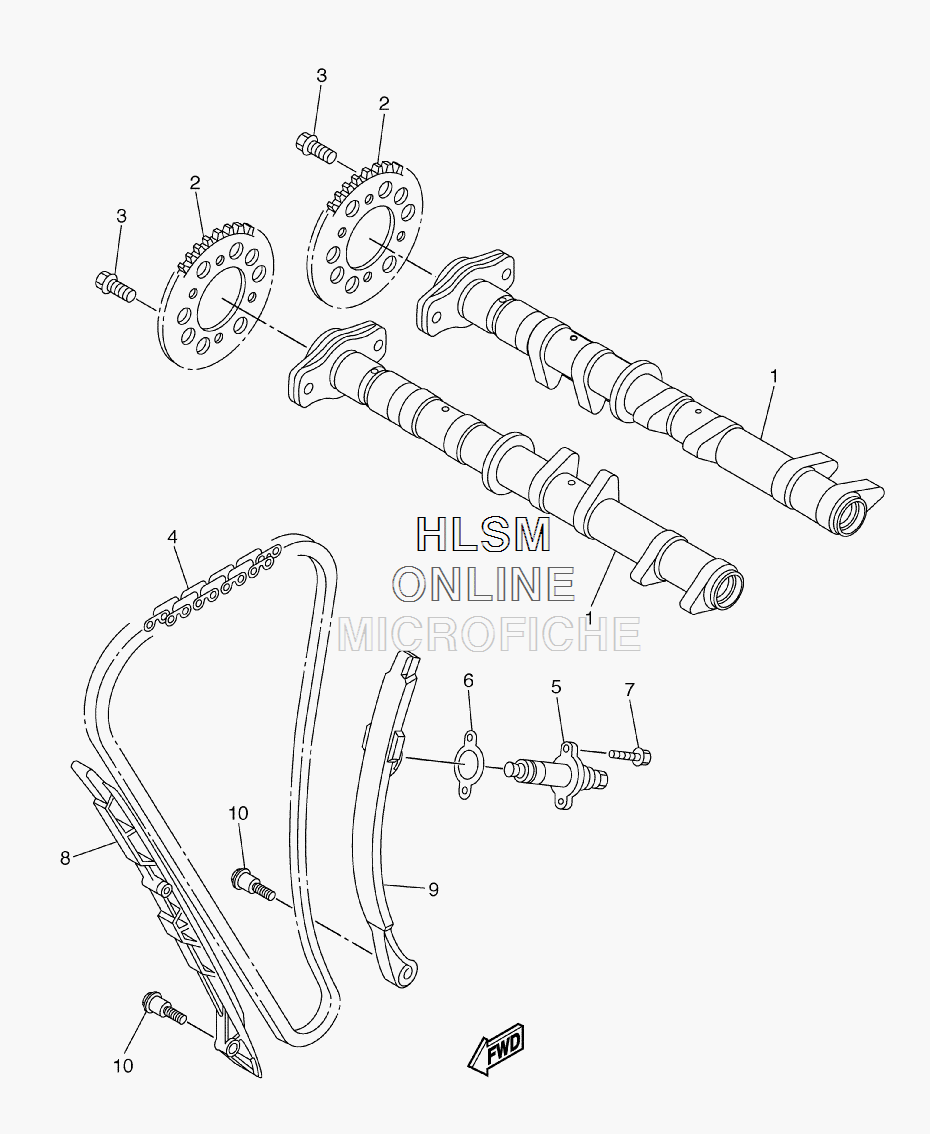

CAMSHAFT W/ CAMSHAFT CHAIN ASSY для Yamaha RS VECTOR - 2008 года выпуска`
-
№АртикулНазвание
-
18ES-12170-01-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
28ES-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
390105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
494591-59140-00 CHAINCHAIN
-
58ES-12210-01-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
64FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
795022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
88ES-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
98ES-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1090109-06187-00 BOLTBOLT
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- • CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CARBURETOR ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
