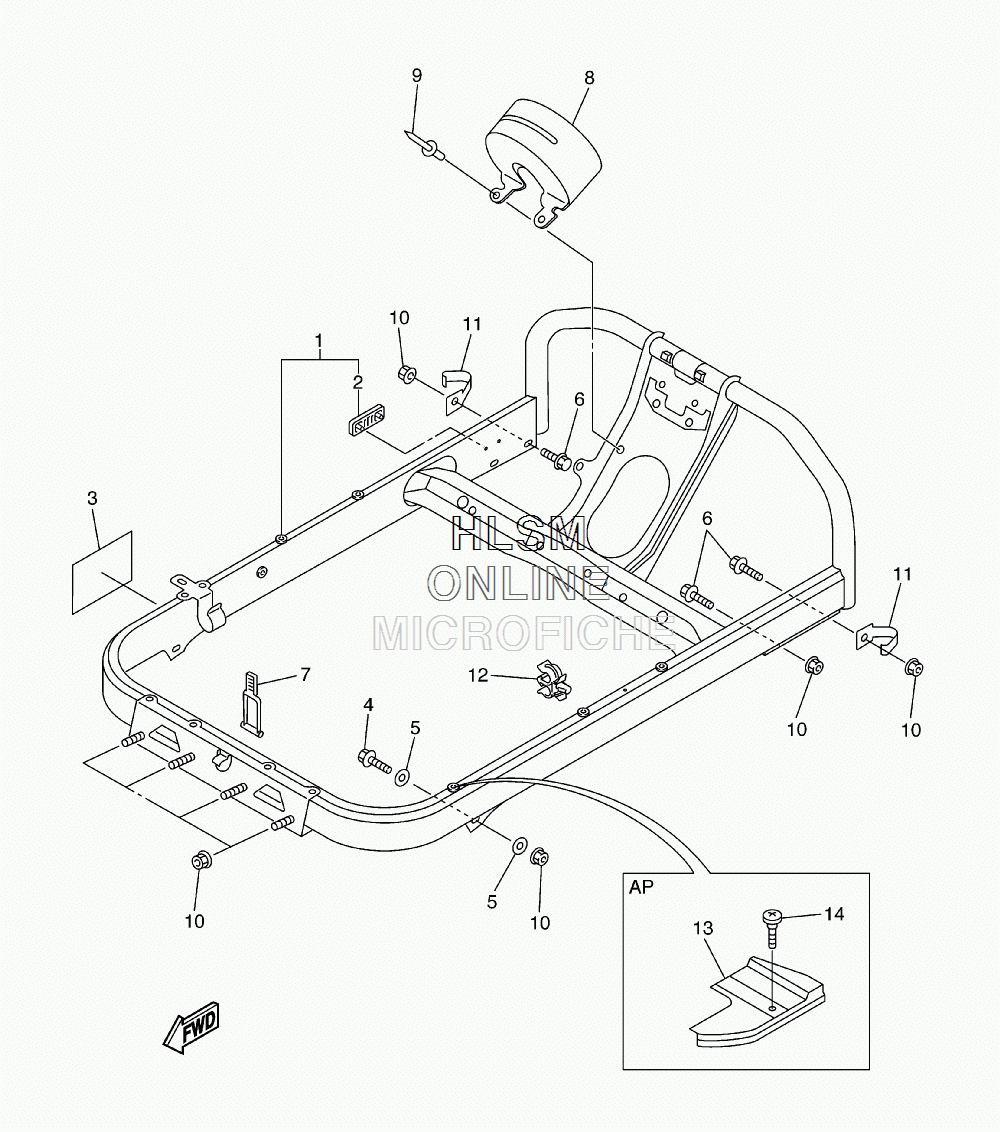

HANDLEBAR PAD W/ STEERING GATE для Yamaha RS VECTOR LTX GT - 2008 года выпуска`
-
№АртикулНазвание
-
18GM-23870-00-00 STEERING GATE COMP.STEERING GATE COMP.
-
28FA-83614-00-00 ...BRACKET...BRACKET
-
38FA-2389C-E0-00 LABEL, CAUTIONLABEL, CAUTION
-
490105-081A7-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
590201-08326-00 WASHER, PLATEWASHER, PLATE
-
695822-08030-00 BOLT, FLANGEBOLT, FLANGE
-
78FA-2389E-00-00 LATCHLATCH
-
88FP-2384G-00-00 CASE 1CASE 1
-
990269-06083-00 RIVETRIVET
-
1095602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190462-10022-00 CLAMPCLAMP
-
1290464-11007-00 CLAMPCLAMP
-
138ES-14146-00-00 PLATE (OPT)PLATE (OPT)
-
1490150-06015-00 SCREW, ROUND HEAD (OPT)SCREW, ROUND HEAD (OPT)
