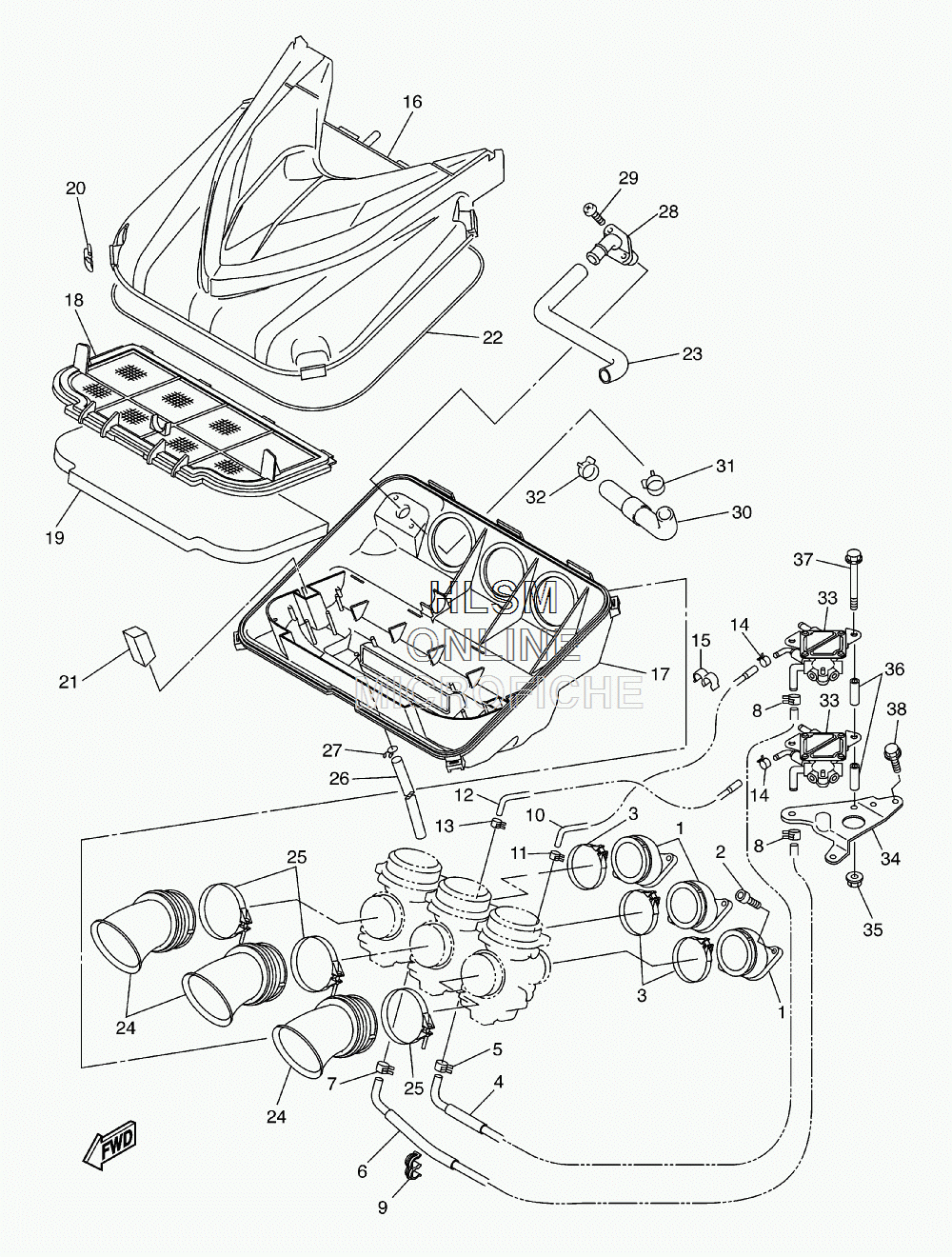

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha RS VECTOR GT 40th ANNIVERSARY - 2008 года выпуска`
-
№АртикулНазвание
-
18ES-13586-10-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
291312-06020-00 BOLTBOLT
-
390450-57016-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
48GM-14294-00-00 HOSEHOSE
-
590467-11028-00 CLIP, SCISSORCLIP, SCISSOR
-
68GM-14298-00-00 PIPEPIPE
-
790467-11028-00 CLIP, SCISSORCLIP, SCISSOR
-
890467-11028-00 CLIP, SCISSORCLIP, SCISSOR
-
990464-13194-00 CLAMPCLAMP
-
108GM-13895-10-00 HOSE, AIRHOSE, AIR
-
1190467-08092-00 CLIP, SCISSORCLIP, SCISSOR
-
128GM-13892-10-00 HOSE, AIR 2HOSE, AIR 2
-
1390467-08092-00 CLIP, SCISSORCLIP, SCISSOR
-
1490467-090A3-00 CLIPCLIP
-
1590464-07006-00 CLAMPCLAMP
-
168GM-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
178GM-14441-00-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
188GM-14472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
198ES-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
208FA-14436-00-00 HOOKHOOK
-
218ES-14425-00-00 DAMPER 1DAMPER 1
-
228GM-14452-00-00 SEALSEAL
-
238GM-14419-00-00 PIPEPIPE
-
248ES-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
2590450-67003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2690445-11M52-00 HOSE (L150)HOSE (L150)
-
2790467-100A1-00 CLIPCLIP
-
288GC-14485-00-00 PIPE, JOINTPIPE, JOINT
-
2997702-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
308GM-21745-00-00 PIPE, OIL TANK BREATHERPIPE, OIL TANK BREATHER
-
3190467-22002-00 CLIPCLIP
-
3290467-22097-00 CLIPCLIP
-
338GM-13910-00-00 FUEL PUMP ASSYFUEL PUMP ASSY
-
348GM-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
3595702-06500-00 NUT, FLANGENUT, FLANGE
-
3690387-065V0-00 COLLARCOLLAR
-
3795022-06085-00 BOLT, FLANGEBOLT, FLANGE
-
3895822-06016-00 BOLT, FLANGEBOLT, FLANGE
