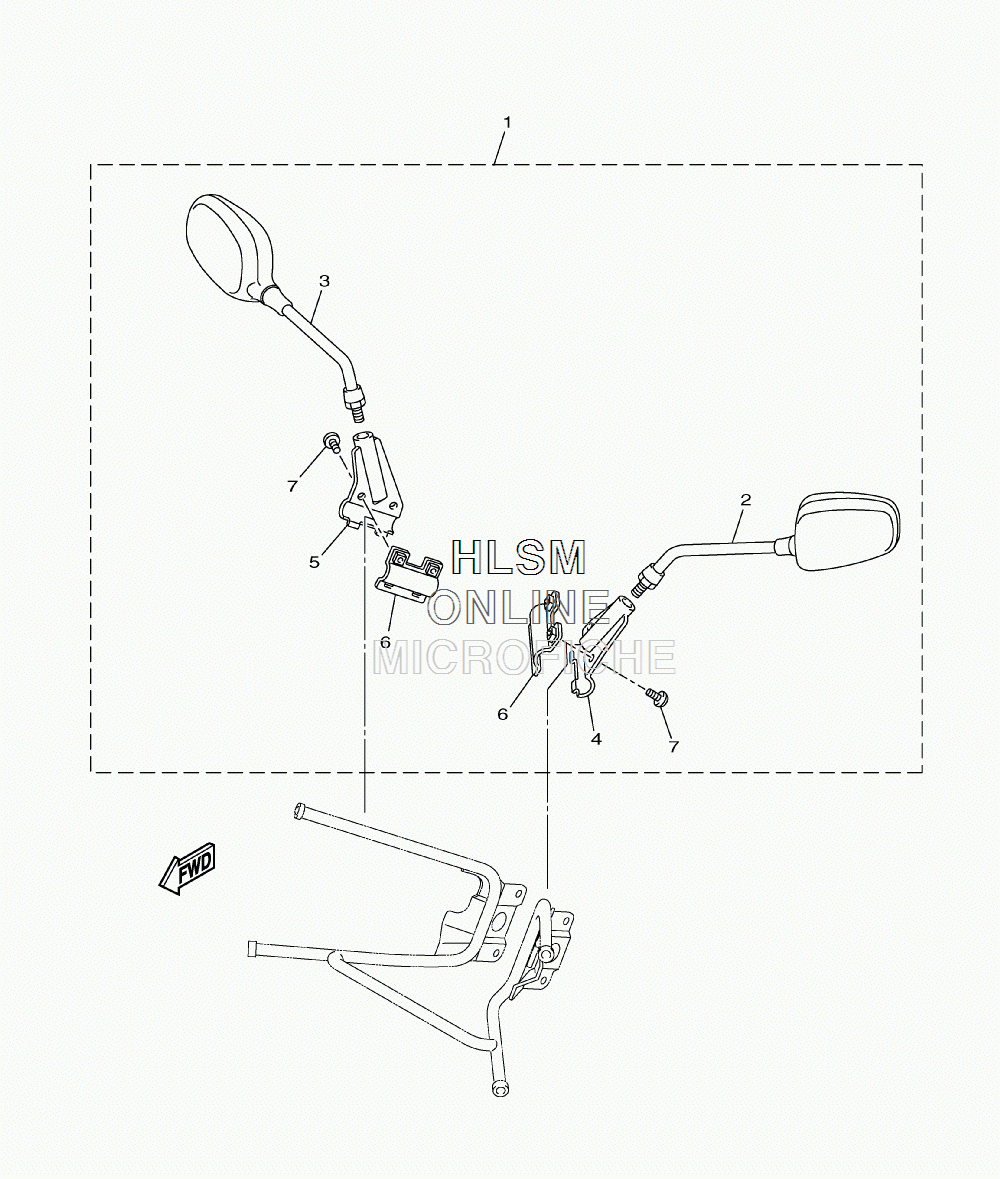

REAR VIEW MIRROR ASSY (OPTION) для Yamaha PHAZER RTX - 2008 года выпуска`
-
№АртикулНазвание
-
18GR-W2628-00-00 REAR VIEW MIRROR SET (OPT)REAR VIEW MIRROR SET (OPT)
-
24GA-26280-10-00 ...REAR VIEW MIRROR ASSY (LEFT)...REAR VIEW MIRROR ASSY (LEFT)
-
34GA-26290-10-00 ...REAR VIEW MIRROR ASSY (RIGHT)...REAR VIEW MIRROR ASSY (RIGHT)
-
48GJ-78386-00-00 ...BRACKET MIRROR 3...BRACKET MIRROR 3
-
58GJ-78387-00-00 ...BRACKET MIRROR 4...BRACKET MIRROR 4
-
68GJ-78357-00-00 ...HOLDER 1...HOLDER 1
-
790149-06298-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
