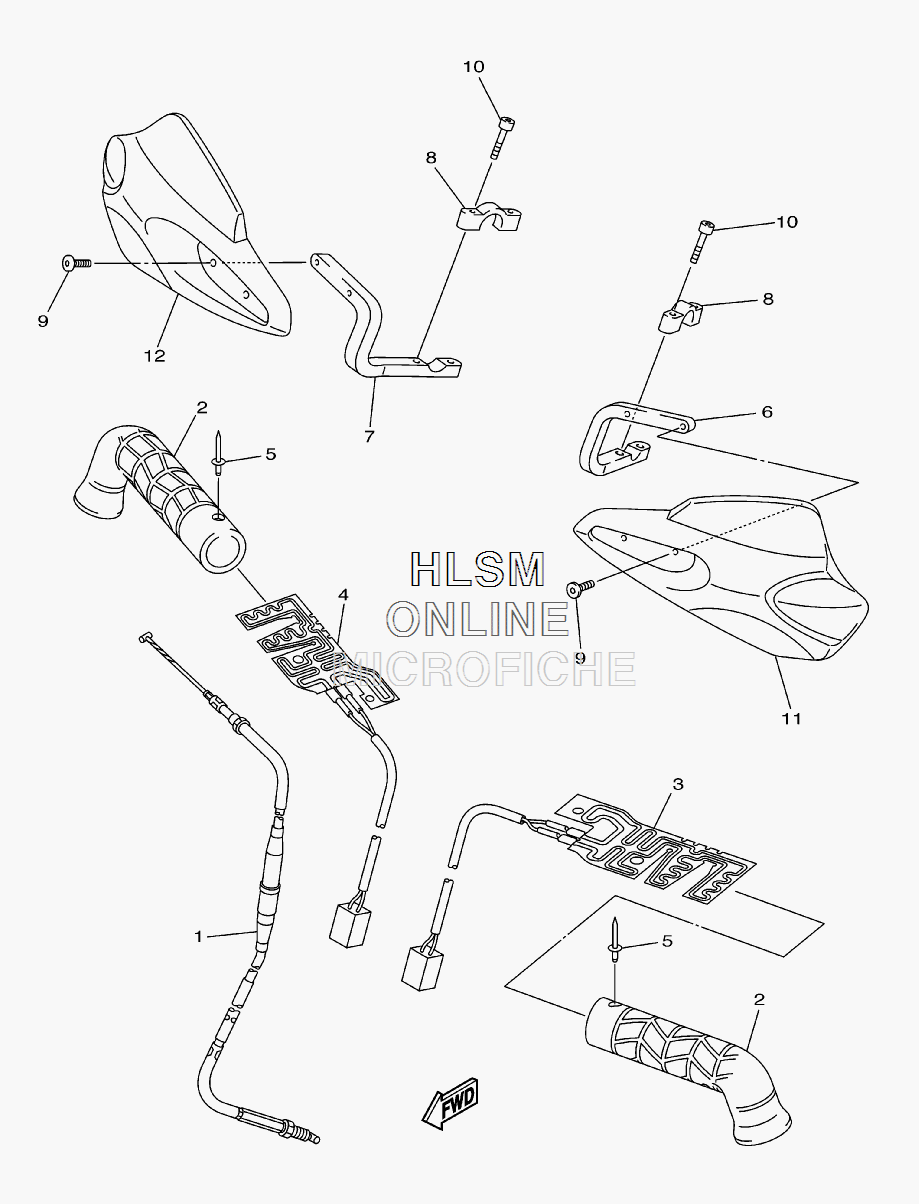

HANDLEBAR - CABLES AND GRIPS для Yamaha FX NYTRO RTX - 2008 года выпуска`
-
№АртикулНазвание
-
18GL-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
28GF-26241-00-00 GRIPGRIP
-
38GF-2626A-00-00 GRIP, WARMERGRIP, WARMER
-
48GF-2626A-10-00 GRIP, WARMERGRIP, WARMER
-
590267-48014-00 RIVET, BLINDRIVET, BLIND
-
68GL-2612L-00-00 BRACKET 3BRACKET 3
-
78GL-2612M-00-00 BRACKET 4BRACKET 4
-
88GL-2612K-00-00 BRKT 2BRKT 2
-
990109-065F3-00 BOLTBOLT
-
1091312-05030-00 BOLTBOLT
-
118GL-F6141-10-00 GUARD, BRUSH 1 (FOR BWS1)GUARD, BRUSH 1 (FOR BWS1)
-
118GL-F6141-00-00 GUARD, BRUSH 1 (FOR DPBSE)GUARD, BRUSH 1 (FOR DPBSE)
-
128GL-F6142-10-00 GUARD, BRUSH 2 (FOR BWS1)GUARD, BRUSH 2 (FOR BWS1)
-
128GL-F6142-00-00 GUARD, BRUSH 2 (FOR DPBSE)GUARD, BRUSH 2 (FOR DPBSE)
