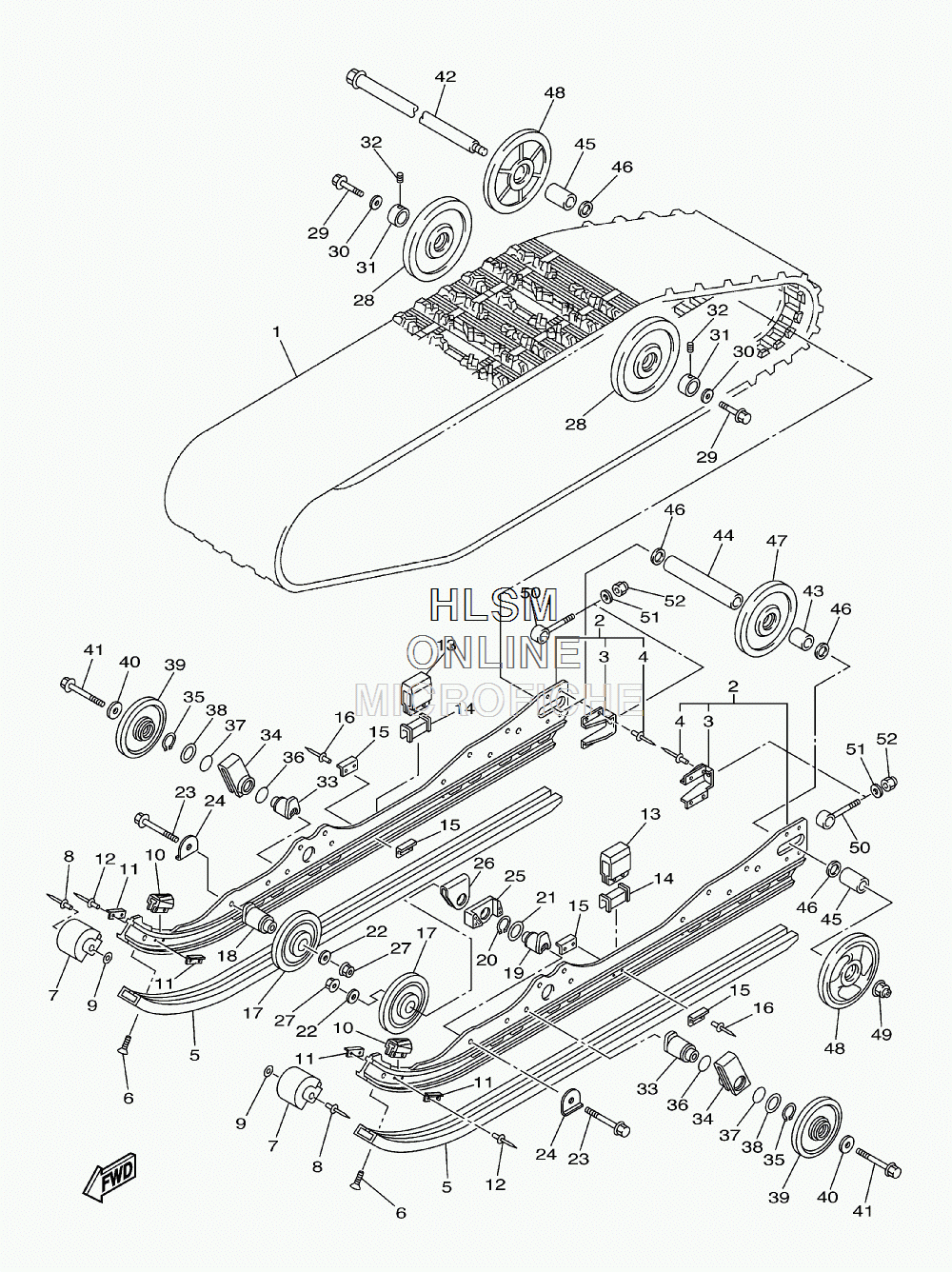

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha FX NYTRO RTX (NO REVERSE) - 2008 года выпуска`
-
№АртикулНазвание
-
18FA-47110-00-00 TRACK ASSY 15X121X1.TRACK ASSY 15X121X1.
-
28GL-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
38DM-4741B-00-00 ...BRACKET...BRACKET
-
48V0-47468-00-00 ...RIVET...RIVET
-
58GL-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
690151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
78GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890267-48194-00 RIVET, BLINDRIVET, BLIND
-
990201-047R8-00 WASHER, PLATEWASHER, PLATE
-
108ES-47456-00-00 DAMPER 1DAMPER 1
-
118K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLINDRIVET, BLIND
-
138GL-47457-00-00 DAMPER 2DAMPER 2
-
148GL-47573-00-00 SPACERSPACER
-
158AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1690267-48199-00 RIVET, BLINDRIVET, BLIND
-
178ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
188ES-47419-00-00 BRACKET 7BRACKET 7
-
198ES-47419-10-00 BRACKET 7BRACKET 7
-
2099009-35400-00 CIRCLIPCIRCLIP
-
2190201-35013-00 WASHER, PLATEWASHER, PLATE
-
2290201-10038-00 WASHER, PLATEWASHER, PLATE
-
2395812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
2490214-10003-00 WASHER, CLAWWASHER, CLAW
-
258HB-47464-00-00 BRACKET 6BRACKET 6
-
268HB-47446-00-00 HOOK 1HOOK 1
-
2795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
288CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
2990109-10030-00 BOLTBOLT
-
3090201-10064-00 WASHER, PLATEWASHER, PLATE
-
318FS-47365-00-00 COLLAR 1COLLAR 1
-
3290113-06039-00 BOLT, SETBOLT, SET
-
338ES-47419-10-00 BRACKET 7BRACKET 7
-
348ES-47446-00-00 HOOK 1HOOK 1
-
3599009-35400-00 CIRCLIPCIRCLIP
-
3693210-35537-00 O-RINGO-RING
-
3793210-34504-00 O-RINGO-RING
-
3890201-35013-00 WASHER, PLATEWASHER, PLATE
-
398ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
4090201-10038-00 WASHER, PLATEWASHER, PLATE
-
4195812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
428L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
4390387-20015-00 COLLARCOLLAR
-
4490387-20016-00 COLLARCOLLAR
-
4590387-20019-00 COLLARCOLLAR
-
4690201-20022-00 WASHER, PLATEWASHER, PLATE
-
478CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
488EK-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
4995602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
508DM-47479-00-00 COLLAR 3COLLAR 3
-
5192902-10600-00 WASHER, PLATEWASHER, PLATE
-
5295702-10300-00 NUT, NYLONNUT, NYLON
