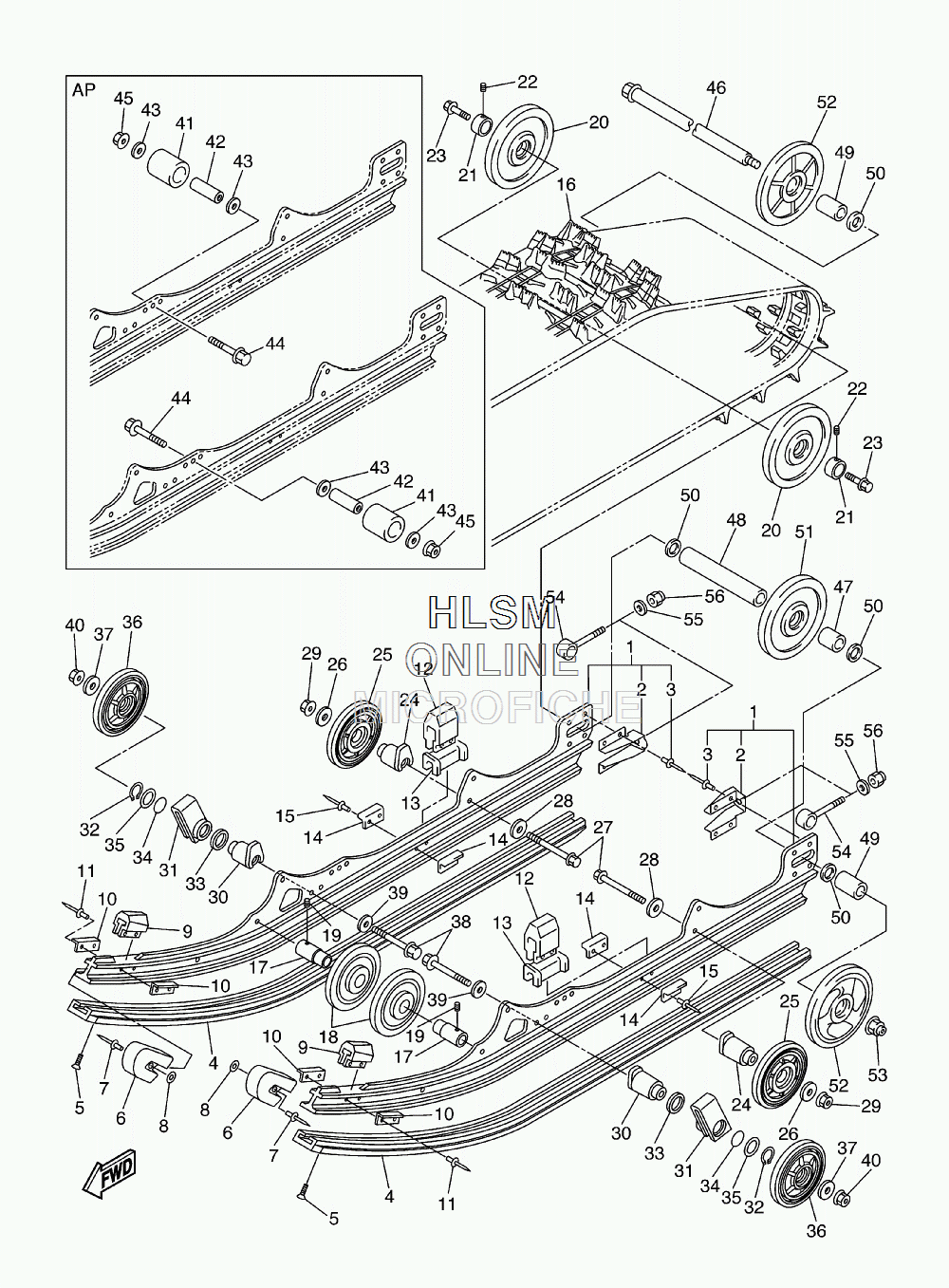

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha FX NYTRO MTX 40th ANNIVERSARY (WHITE) - 2008 года выпуска`
-
№АртикулНазвание
-
18HA-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
28DM-4741B-00-00 ...BRACKET...BRACKET
-
38V0-47468-00-00 ...RIVET...RIVET
-
48HA-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLINDRIVET, BLIND
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98ES-47456-00-00 DAMPER 1DAMPER 1
-
108K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1190267-48199-00 RIVET, BLINDRIVET, BLIND
-
128CM-47457-00-00 DAMPER 2DAMPER 2
-
138CM-47341-00-00 SPACERSPACER
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLINDRIVET, BLIND
-
168HA-47110-00-00 TRACK ASSYTRACK ASSY
-
178ES-47319-01-00 COLLARCOLLAR
-
188ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
1990113-06039-00 BOLT, SETBOLT, SET
-
208CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
218ES-47365-00-00 COLLAR 1COLLAR 1
-
2290113-06039-00 BOLT, SETBOLT, SET
-
2390105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
248ES-47419-00-00 BRACKET 7BRACKET 7
-
258FS-47310-01-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2690201-104A7-00 WASHER, PLATEWASHER, PLATE
-
2795817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
2890201-106F2-00 WASHER, PLATEWASHER, PLATE
-
2995607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
308ES-47419-10-00 BRACKET 7BRACKET 7
-
318ES-47446-00-00 HOOK 1HOOK 1
-
3299009-35400-00 CIRCLIPCIRCLIP
-
3393210-35537-00 O-RINGO-RING
-
3493210-34504-00 O-RINGO-RING
-
3590201-35013-00 WASHER, PLATEWASHER, PLATE
-
368FS-47310-01-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3790201-104A7-00 WASHER, PLATEWASHER, PLATE
-
3895817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3990201-106F2-00 WASHER, PLATEWASHER, PLATE
-
4095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
418ES-47429-00-00 ROLLERROLLER
-
4290387-10025-00 COLLARCOLLAR
-
4390201-106F2-00 WASHER, PLATEWASHER, PLATE
-
4495817-10060-00 BOLT, FLANGEBOLT, FLANGE
-
4595607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
468L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
4790387-20015-00 COLLARCOLLAR
-
4890387-20016-00 COLLARCOLLAR
-
4990387-20019-00 COLLARCOLLAR
-
5090201-205R6-00 WASHER, PLATEWASHER, PLATE
-
518CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
528EK-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
5395607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
548DM-47479-00-00 COLLAR 3COLLAR 3
-
5592902-10600-00 WASHER, PLATEWASHER, PLATE
-
5695702-10300-00 NUT, NYLONNUT, NYLON
