ELECTRICAL - INSTRUMENTS для Yamaha FX NYTRO MTX 40th ANNIVERSARY (BLUISH WHITE) - 2008 года выпуска`
-

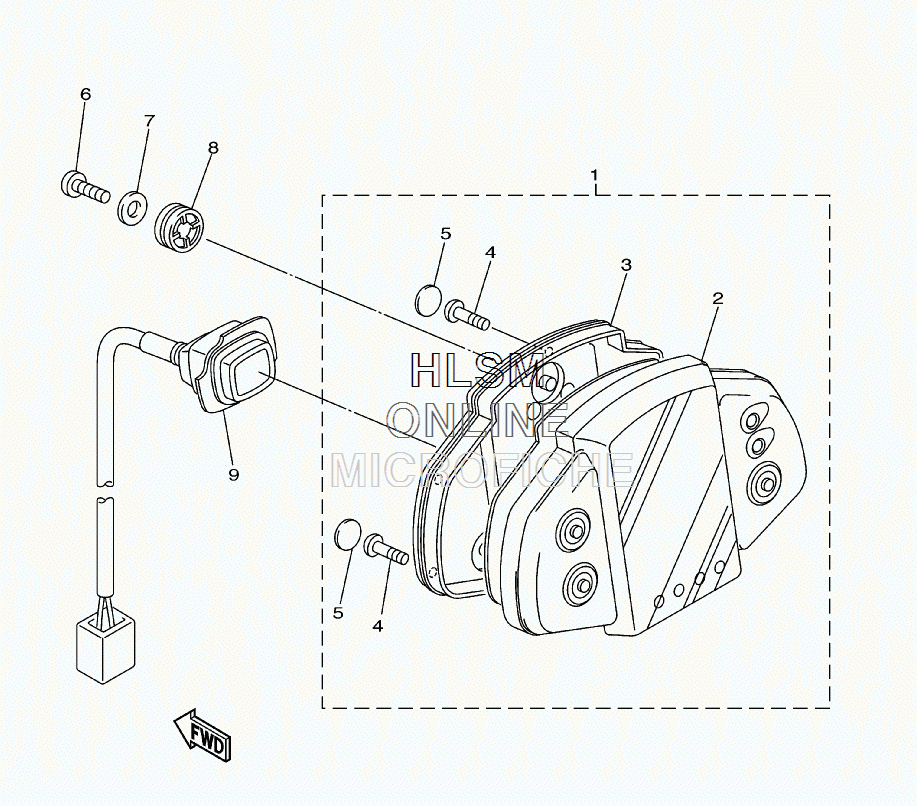

№АртикулНазвание
-
18HA-83500-00-00 METER ASSY (MPH)METER ASSY (MPH)
-
28GC-W835E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
38GC-W8357-00-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
45PW-8352S-00-00 ...SCREW, PANEL FTTING...SCREW, PANEL FTTING
-
58GC-21732-00-00 ...SEAL 1...SEAL 1
-
690167-05076-00 SCREW, TAPPINGSCREW, TAPPING
-
790201-05725-00 WASHER, PLATEWASHER, PLATE
-
84XV-83513-00-00 DAMPERDAMPER
-
98GL-82531-00-00 WIRE, LEADWIRE, LEAD
