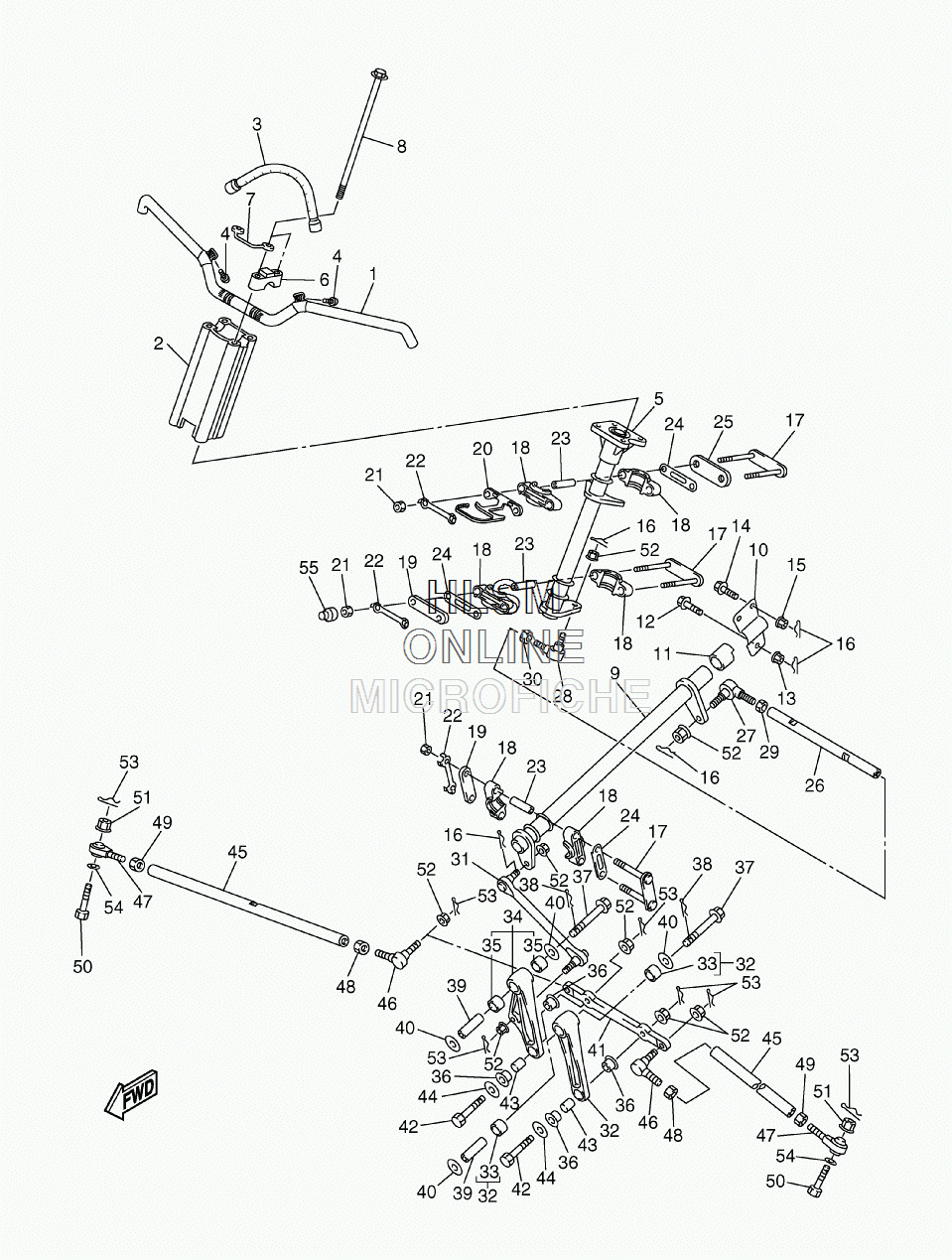

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha APEX MTX SE 40th ANNIVERSARY - 2008 года выпуска
-
№АртикулНазвание
-
18FS-26111-10-00 HANDLEBARHANDLEBAR
-
28FS-2381B-00-00 JOINTJOINT
-
38GE-23829-00-00 STRAP, STRGSTRAP, STRG
-
492014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
58FP-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
63SP-23441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
78FP-23857-00-00 HOLDERHOLDER
-
88FS-23876-00-00 BOLTBOLT
-
98FA-23811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
108FA-23818-01-00 COVER, STEERINGCOVER, STEERING
-
118FA-23873-00-00 BEARING, STEERING UPPERBEARING, STEERING UPPER
-
1290105-10728-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1490105-08552-00 BOLT, FLANGEBOLT, FLANGE
-
1595602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690468-12006-00 CLIPCLIP
-
178FA-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
188FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
198FA-23867-00-00 HOLDER 2HOLDER 2
-
208FP-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2195312-08600-00 NUTNUT
-
221UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
2390387-09006-00 COLLARCOLLAR
-
248FA-23843-00-00 WASHER, PLAINWASHER, PLAIN
-
258FP-23843-00-00 WASHER, PLAINWASHER, PLAIN
-
268FA-23828-00-00 ROD, STEERINGROD, STEERING
-
278CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
288CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2995307-10700-00 NUTNUT
-
3090170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
318FA-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
328FG-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
3390383-17001-00 ...BUSH, FORMED...BUSH, FORMED
-
348FA-2389M-00-00 ARM PIVOT ASSY. , 2ARM PIVOT ASSY. , 2
-
3593317-41785-00 ...BEARING...BEARING
-
3690381-14001-00 BUSH, SOLIDBUSH, SOLID
-
3790105-12017-00 BOLT, FLANGEBOLT, FLANGE
-
388FA-2384N-00-00 CLIP, RINGCLIP, RING
-
398FA-2412G-00-00 COLLARCOLLAR
-
4090201-121U3-00 WASHER, PLATEWASHER, PLATE
-
418FU-23826-00-00 ARM, IDLERARM, IDLER
-
4290102-10044-00 BOLT WITH HOLEBOLT WITH HOLE
-
4390387-10008-00 COLLARCOLLAR
-
4490201-10742-00 WASHER, PLATEWASHER, PLATE
-
458FW-23831-00-00 ROD, TIEROD, TIE
-
468CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
478FA-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
4895307-10700-00 NUTNUT
-
4990170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
5090102-10044-00 BOLT WITH HOLEBOLT WITH HOLE
-
5195702-10300-00 NUT, NYLONNUT, NYLON
-
5295702-10500-00 NUT WITH WASHERNUT WITH WASHER
-
5391401-20020-00 PIN, COTTERPIN, COTTER
-
5490201-08759-00 WASHER, PLATEWASHER, PLATE
-
5535R-25335-00-00 CAPCAP
