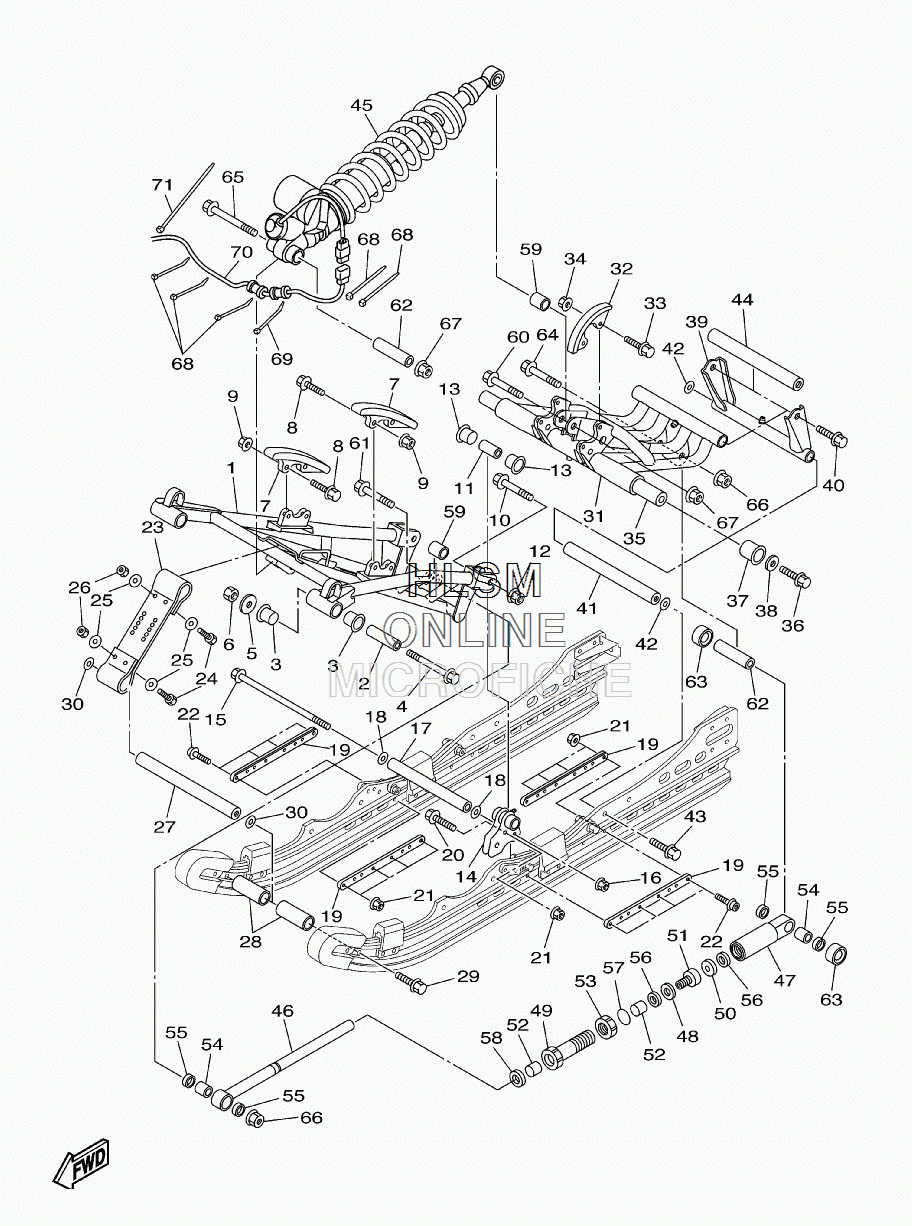

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha APEX LTX GT 40th ANNIVERSARY - 2008 года выпуска
-
№АртикулНазвание
-
18FT-47331-01-00 ARM, PIVOT 1ARM, PIVOT 1
-
290387-10042-00 COLLARCOLLAR
-
390386-22002-00 BUSHBUSH
-
490105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
590201-104A7-00 WASHER, PLATEWASHER, PLATE
-
690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
78F3-47422-01-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890105-06557-00 BOLT, FLANGEBOLT, FLANGE
-
995607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
1090105-10090-00 BOLT, FLANGEBOLT, FLANGE
-
1190387-10033-00 COLLARCOLLAR
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390386-15002-00 BUSHBUSH
-
148FU-47415-10-00 BRACKET 1BRACKET 1
-
1590105-08119-00 BOLT, FLANGEBOLT, FLANGE
-
1695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790387-08037-00 COLLARCOLLAR
-
1890201-08649-00 WASHER, PLATEWASHER, PLATE
-
198FT-47348-00-00 GUSSETGUSSET
-
2095812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
2195602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2290109-083G1-00 BOLTBOLT
-
238GM-47495-00-00 STOPPER 1STOPPER 1
-
2497002-06025-00 BOLTBOLT
-
2590201-06081-00 WASHER, PLATEWASHER, PLATE
-
2695702-06300-00 NUT, NYLONNUT, NYLON
-
278FU-47485-00-00 SHAFT 3SHAFT 3
-
2890387-19003-00 COLLARCOLLAR
-
2990105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
3090201-10126-00 WASHER, PLATEWASHER, PLATE
-
318FT-47332-01-00 ARM, PIVOT 2ARM, PIVOT 2
-
328FT-47441-00-00 SLIDER 1SLIDER 1
-
3390105-06557-00 BOLT, FLANGEBOLT, FLANGE
-
3495607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
358FT-47475-00-00 SHAFT 2SHAFT 2
-
3690105-10146-00 BOLT, FLANGEBOLT, FLANGE
-
3790381-28108-00 BUSH, SOLIDBUSH, SOLID
-
3890201-103U4-00 WASHER, PLATEWASHER, PLATE
-
398FU-47417-11-00 BRACKET 3BRACKET 3
-
4090105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
418FU-47485-00-00 SHAFT 3SHAFT 3
-
4290201-10136-00 WASHER, PLATEWASHER, PLATE
-
4390105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
448FU-47486-00-00 SHAFT 4SHAFT 4
-
458GV-47480-50-00 SHOCK ABSORBERSHOCK ABSORBER
-
468FR-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
478FU-4745C-10-00 ROD, CONTROL 3ROD, CONTROL 3
-
4890202-16229-00 WASHER, PLATEWASHER, PLATE
-
498FU-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
508FU-47384-00-00 WASHER (L=7.5) (OPT)WASHER (L=7.5) (OPT)
-
508FU-47384-10-00 WASHER (L=5.0) (OPT)WASHER (L=5.0) (OPT)
-
508FU-47384-20-00 WASHER (L=10) (STD)WASHER (L=10) (STD)
-
518FU-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
5290384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
538FU-47368-00-00 NUTNUT
-
5493315-31758-00 BEARINGBEARING
-
5593109-17071-00 OIL SEALOIL SEAL
-
568FU-47466-00-00 SPACERSPACER
-
5793210-347A6-00 O-RINGO-RING
-
58C68-43822-00-00 SEAL, TRIM DUSTSEAL, TRIM DUST
-
5990387-1012A-00 COLLARCOLLAR
-
6095812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
6190105-102A6-00 BOLT, FLANGEBOLT, FLANGE
-
6290387-10034-00 COLLARCOLLAR
-
638FU-47341-00-00 SPACERSPACER
-
6495817-10070-00 BOLT, FLANGEBOLT, FLANGE
-
6595812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
6695607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6795602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6890465-13152-00 BANDBAND
-
6990464-35132-00 CLAMPCLAMP
-
708GD-82509-01-00 WIRE, SUB LEADWIRE, SUB LEAD
-
7190464-80001-00 CLAMPCLAMP
