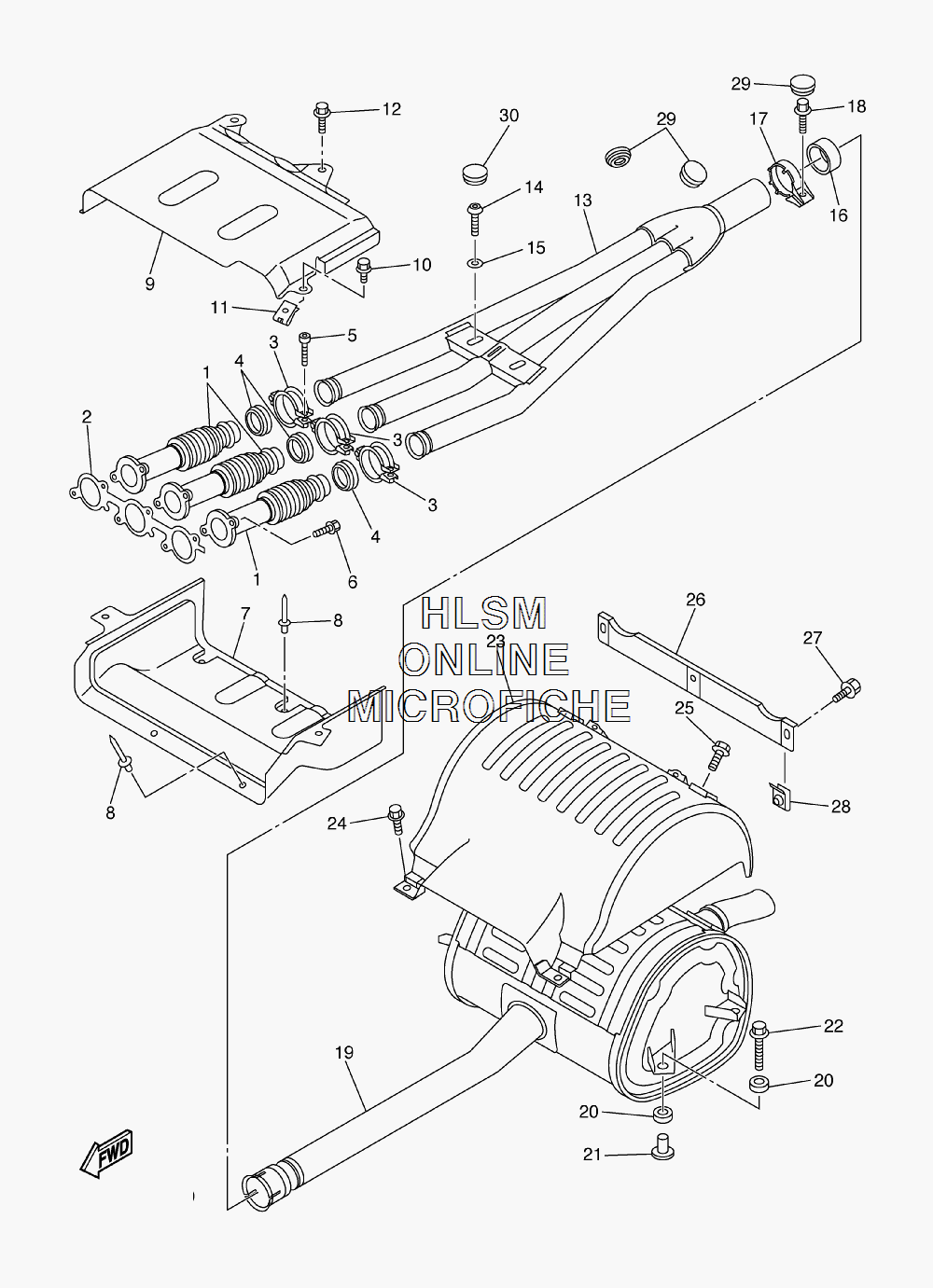

EXHAUST SYSTEM для Yamaha VENTURE 2-PASS - 2007 года выпуска`
-
№АртикулНазвание
-
18ES-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
28ES-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
38FA-14715-00-00 BAND, MUFFLERBAND, MUFFLER
-
48FA-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
591317-06030-00 BOLT, HEX SKT HEADBOLT, HEX SKT HEAD
-
695027-08020-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
78ES-14627-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
890267-47195-00 RIVET, BLINDRIVET, BLIND
-
98ES-14637-00-00 EXHAUST COVER ASS'YEXHAUST COVER ASS'Y
-
1095817-06008-00 BOLT, FLANGEBOLT, FLANGE
-
1190183-060A0-00 NUT, SPRINGNUT, SPRING
-
1295817-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
138ES-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
1492017-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1592990-08200-00 WASHER, PLAINWASHER, PLAIN
-
168FA-14714-10-00 GASKET, MUFFLERGASKET, MUFFLER
-
178FA-14788-00-00 BAND, SILENCERBAND, SILENCER
-
1895817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
198ET-14750-00-00 SILENCER ASSYSILENCER ASSY
-
208FA-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2190387-08071-00 COLLARCOLLAR
-
2290119-08062-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
238ES-14708-01-00 PROTECTOR ASSYPROTECTOR ASSY
-
2490119-06170-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2595817-06008-00 BOLT, FLANGEBOLT, FLANGE
-
268ES-1478N-00-00 PLATE, 8PLATE, 8
-
2795817-06008-00 BOLT, FLANGEBOLT, FLANGE
-
2890183-060A0-00 NUT, SPRINGNUT, SPRING
-
2990338-20004-00 PLUGPLUG
-
3090338-20007-00 PLUGPLUG
