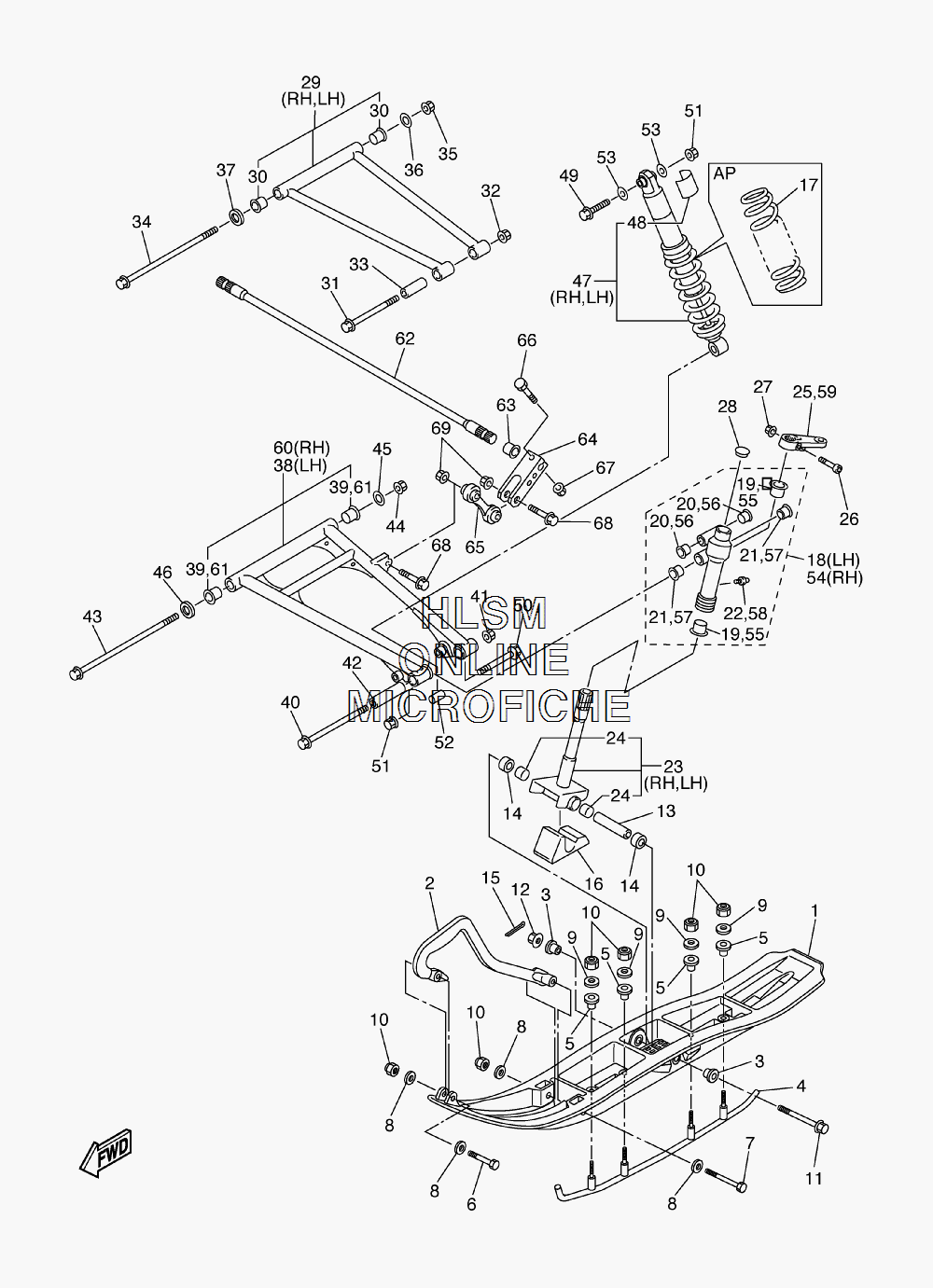

SUSPENSION - FRONT W/ SKI ASSY для Yamaha VECTOR MTN. SE - 2007 года выпуска`
-
№АртикулНазвание
-
18FK-F3711-00-00 SKI 1SKI 1
-
28EK-F3712-00-00 BLUE 8DM HANDLE PLASTIC (8FK5)BLUE 8DM HANDLE PLASTIC (8FK5)
-
28DM-F3712-00-00 BLACK 8DM HANDLE PLASTIC (8GES)BLACK 8DM HANDLE PLASTIC (8GES)
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48EN-F3731-00-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT, NYLONNUT, NYLON
-
1190105-10106-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390387-10036-00 COLLARCOLLAR
-
1490387-16013-00 COLLARCOLLAR
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
168CR-23743-10-00 STOPPER 1STOPPER 1
-
178ES-23760-00-00 SPRING ASSY 1 (K=24.5N/MM) (OPT)SPRING ASSY 1 (K=24.5N/MM) (OPT)
-
188FA-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1990381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
2090381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2190381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2293700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
238FG-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2490384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
258FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
2690110-08N53-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
283YK-22472-40-00 CAP, CASECAP, CASE
-
298FK-23540-10-00 FRONT UPPER ARM COMP. (LEFT) (8GES)FRONT UPPER ARM COMP. (LEFT) (8GES)
-
298FK-23540-30-00 FRONT UPPER ARM COMP. (LEFT) (8FK5)FRONT UPPER ARM COMP. (LEFT) (8FK5)
-
3090381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3190105-10N51-00 BOLT, FLANGEBOLT, FLANGE
-
3295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3390387-10N58-00 COLLARCOLLAR
-
3490105-10N54-00 BOLT, FLANGEBOLT, FLANGE
-
3595607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3690201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3790209-15N50-00 WASHERWASHER
-
388FW-23570-10-00 FRONT LOWER ARM COMP. (LEFT) (8GES)FRONT LOWER ARM COMP. (LEFT) (8GES)
-
388FW-23570-30-00 FRONT LOWER ARM COMP. (LEFT) (8FK5)FRONT LOWER ARM COMP. (LEFT) (8FK5)
-
3990381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4090105-12N54-00 BOLT, FLANGEBOLT, FLANGE
-
4195607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4290387-12N54-00 COLLARCOLLAR
-
4390105-10N55-00 BOLT, FLANGEBOLT, FLANGE
-
4495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4590201-106F2-00 WASHER, PLATEWASHER, PLATE
-
4690209-15N50-00 WASHERWASHER
-
478GE-2376A-00-00 ABSORBER ASSY 1 (8GES)ABSORBER ASSY 1 (8GES)
-
478FK-2376A-60-00 ABSORBER ASSY 1 (8FK5)ABSORBER ASSY 1 (8FK5)
-
484AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
4990105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
5090105-10392-00 BOLT, FLANGEBOLT, FLANGE
-
5195607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5290387-10N59-00 COLLARCOLLAR
-
5390201-106F2-00 WASHER, PLATEWASHER, PLATE
-
548FA-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
5590381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
5690381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
5790381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
5893700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
598FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
608FW-23580-10-00 FRONT LOWER ARM COMP. (RIGHT) (8GES)FRONT LOWER ARM COMP. (RIGHT) (8GES)
-
608FW-23580-30-00 FRONT LOWER ARM COMP. (RIGHT) (8FK5)FRONT LOWER ARM COMP. (RIGHT) (8FK5)
-
6190381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
628FA-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
638FA-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
648FA-2386L-10-00 ARM, STABILIZERARM, STABILIZER
-
658ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6690101-06765-00 BOLTBOLT
-
6795604-06200-00 NUT, U FLANGENUT, U FLANGE
-
6895814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
6995604-08200-00 NUT, U FLANGENUT, U FLANGE
