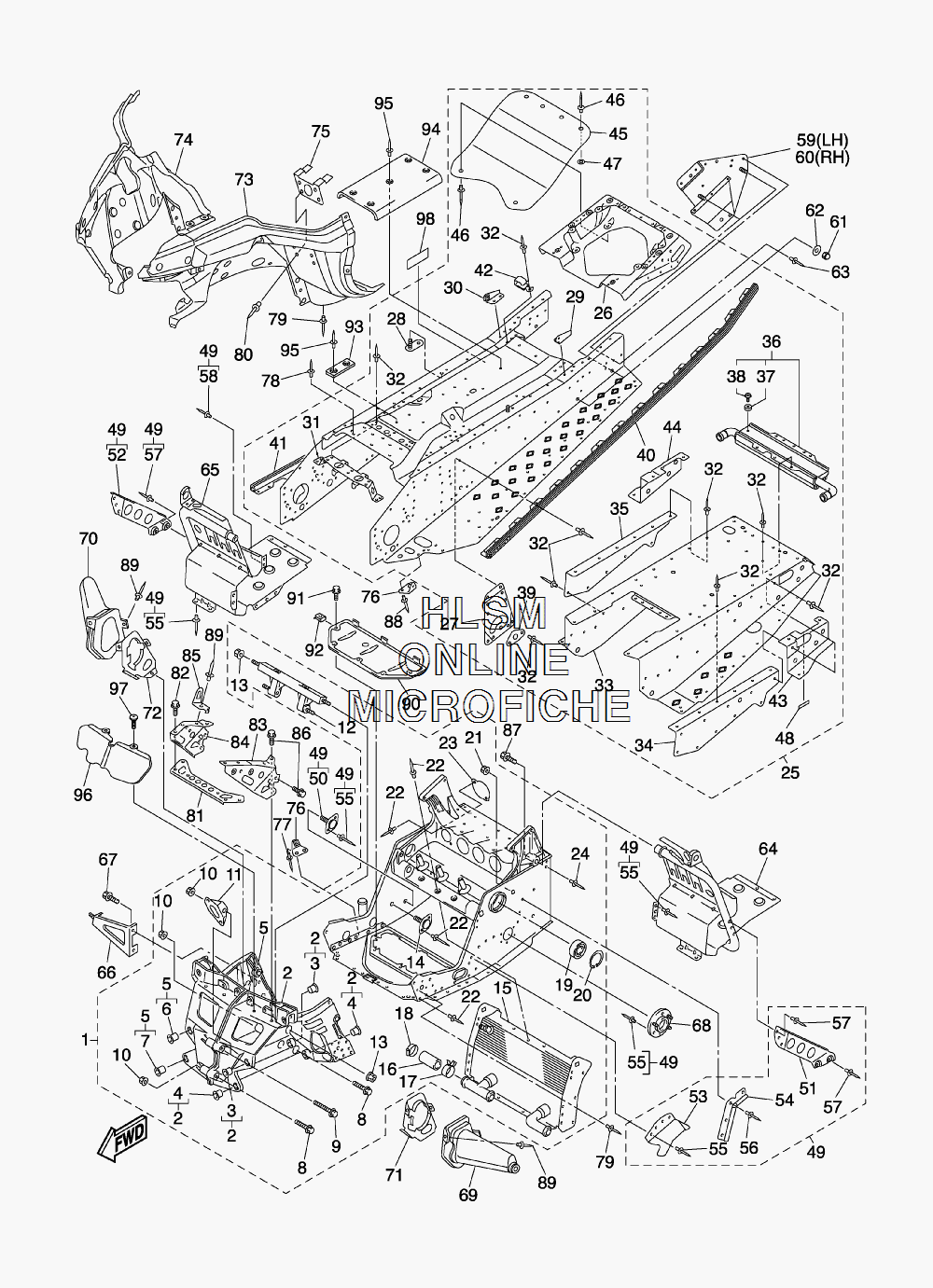

TUNNEL EXTENSION ASSEMBLY для Yamaha VECTOR MOUNTAIN - 2007 года выпуска`
-
№АртикулНазвание
-
18GE-21940-01-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-11-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
490381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
58FA-W2198-11-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
790381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118FA-2128A-00-00 ...BRACKET, REGULATOR...BRACKET, REGULATOR
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
148FS-21939-00-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
158EP-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
168FA-12551-00-00 ...HOSE 7...HOSE 7
-
1790467-28046-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1890450-35001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1993306-20650-00 ...BEARING...BEARING
-
2099009-62500-00 ...CIRCLIP...CIRCLIP
-
2195607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2290267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
238ES-2131D-00-00 ...PLATE, COVER...PLATE, COVER
-
2490267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
258GE-21950-01-00 REAR FRAME COMP.REAR FRAME COMP.
-
268FS-W2199-00-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
278FS-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
288CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
298FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
308FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
318ES-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3290267-47195-00 ...RIVET, BLIND (QTY:139)...RIVET, BLIND (QTY:139)
-
338FS-21916-01-00 ...PANEL, SUB FRAME 5...PANEL, SUB FRAME 5
-
348FS-21963-00-00 ...PATCH 3...PATCH 3
-
358FS-21964-00-00 ...PATCH 4...PATCH 4
-
368FS-1241A-00-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
3790210-06006-00 ......WASHER, SEAL......WASHER, SEAL
-
3898507-06008-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
398FK-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
408FS-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
418FS-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
4290465-08125-00 ...CLAMP...CLAMP
-
438FS-21961-01-00 ...PATCH 1...PATCH 1
-
448FS-21962-01-00 ...PATCH 2...PATCH 2
-
458FS-2197C-00-00 ...PROTECTOR, FRAME 3...PROTECTOR, FRAME 3
-
4690267-47200-00 ...RIVET, BLIND...RIVET, BLIND
-
4790201-054K4-00 ...WASHER, PLATE...WASHER, PLATE
-
488GE-21852-00-00 ...DAMPER...DAMPER
-
498GE-W2195-10-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
508FN-21939-00-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
518FU-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
528FU-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
538FU-2198G-00-00 ...COVER 2...COVER 2
-
548FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
5590267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
5690267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
5790267-48177-00 ...RIVET, BLIND...RIVET, BLIND
-
5890267-47186-00 ...RIVET, BLIND...RIVET, BLIND
-
598FS-21944-10-00 BRACKET, RR. TRACK SUSPENSION 1BRACKET, RR. TRACK SUSPENSION 1
-
608FS-21954-10-00 BRACKET, RR. TRACK SUSPENSION 2BRACKET, RR. TRACK SUSPENSION 2
-
6195304-10800-00 NUT, CROWNNUT, CROWN
-
6290201-104A7-00 WASHER, PLATEWASHER, PLATE
-
6390267-47197-00 RIVET, BLINDRIVET, BLIND
-
648FU-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
658FU-21970-01-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
668ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
6795827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
688EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
698FU-2198F-00-00 COVER 1COVER 1
-
708FU-2198J-00-00 COVER 3COVER 3
-
718FU-2195E-01-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
728FU-2195F-01-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
738FK-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
748EP-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
758FA-21972-01-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
768FA-2196F-00-00 BRACKET 3BRACKET 3
-
7790267-48083-00 RIVET, BLINDRIVET, BLIND
-
7890267-48169-00 RIVET, BLINDRIVET, BLIND
-
7990267-48018-00 RIVET, BLINDRIVET, BLIND
-
8090267-47200-00 RIVET, BLINDRIVET, BLIND
-
818FA-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
8295827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
838FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
848FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
858FA-77125-00-00 STAY 1STAY 1
-
8695827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
8795827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8890267-48095-00 RIVET, BLINDRIVET, BLIND
-
8990267-47195-00 RIVET, BLINDRIVET, BLIND
-
908FA-2197E-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
9190109-065F3-00 BOLTBOLT
-
9290183-06053-00 NUT, SPRINGNUT, SPRING
-
938FA-21998-00-00 SPACERSPACER
-
948FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9590267-48059-00 RIVET, BLINDRIVET, BLIND
-
968FP-22865-00-00 COVER, FRONTCOVER, FRONT
-
9790150-06015-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
988FJ-2179D-00-00 PLETE, EPA OFFROAD 2PLETE, EPA OFFROAD 2
