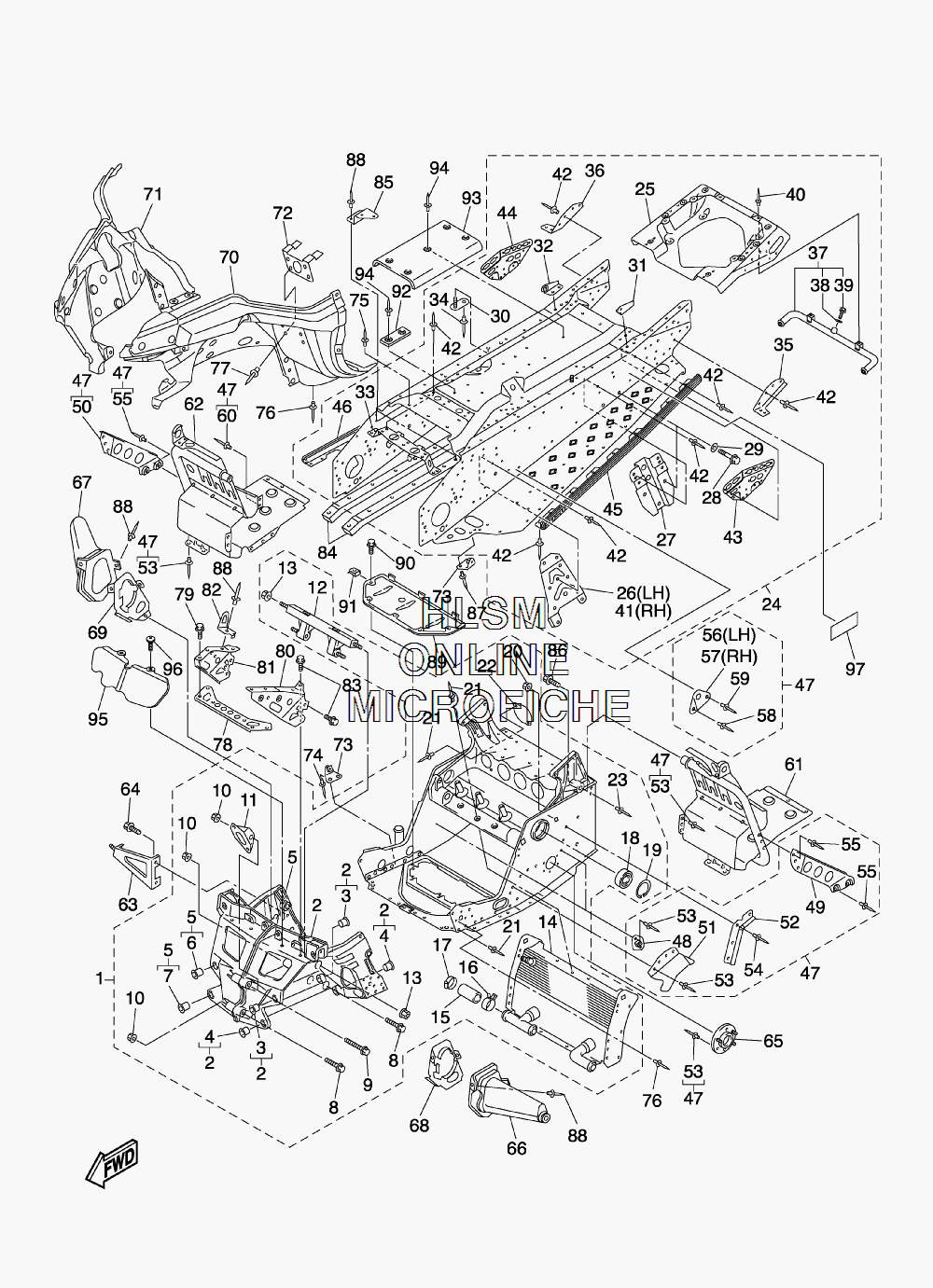

FRONT FRAME COMP. 2 для Yamaha VECTOR ER - 2007 года выпуска`
-
№АртикулНазвание
-
18ES-21940-01-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-11-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
490381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
58FA-W2198-11-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
790381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118FA-2128A-00-00 ...BRACKET, REGULATOR...BRACKET, REGULATOR
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
148FA-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
158FA-12551-00-00 ...HOSE 7...HOSE 7
-
1690467-28046-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1790450-35001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1893306-20650-00 ...BEARING...BEARING
-
1999009-62500-00 ...CIRCLIP...CIRCLIP
-
2095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2190267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
228ES-2131D-00-00 ...PLATE, COVER...PLATE, COVER
-
2390267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
248GF-21950-10-00 REAR FRAME COMP. FOR YBREAR FRAME COMP. FOR YB
-
248GF-21950-20-00 REAR FRAME COMP. FOR DPBMCREAR FRAME COMP. FOR DPBMC
-
258FA-W2199-10-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
268ES-21943-01-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
278ES-21944-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
2895817-10022-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2990201-100S0-00 ...WASHER, PLATE...WASHER, PLATE
-
308CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
318FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
328FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
338ES-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3490267-47195-00 ...RIVET, BLIND FOR YB...RIVET, BLIND FOR YB
-
358FA-21963-00-00 ...PATCH 3...PATCH 3
-
368FA-21964-00-00 ...PATCH 4...PATCH 4
-
378FU-1241A-00-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
3890210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
3995817-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4090267-48095-00 ...RIVET, BLIND...RIVET, BLIND
-
418ES-21953-01-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
4290267-47186-00 ...RIVET, BLIND (QTY:108) FOR YB...RIVET, BLIND (QTY:108) FOR YB
-
4290267-47195-00 ...RIVET, BLIND (QTY:108) FOR DPBMC...RIVET, BLIND (QTY:108) FOR DPBMC
-
438FP-21928-00-00 ...REINF., SUB FRAME 1...REINF., SUB FRAME 1
-
448FP-21938-00-00 ...REINF., SUB FRAME 2...REINF., SUB FRAME 2
-
458FG-21926-00-00 ...REINFORCEMENT, FOOTREST 1 FOR DPBMC...REINFORCEMENT, FOOTREST 1 FOR DPBMC
-
458FU-21926-00-00 ...REINFORCEMENT, FOOTREST 1 FOR YB...REINFORCEMENT, FOOTREST 1 FOR YB
-
468FG-21936-00-00 ...REINFORCEMENT, FOOTREST 2 FOR DPBMC...REINFORCEMENT, FOOTREST 2 FOR DPBMC
-
468FU-21936-00-00 ...REINFORCEMENT, FOOTREST 2 FOR YB...REINFORCEMENT, FOOTREST 2 FOR YB
-
478GF-W2195-00-00 FRAME CONNECTION KIT FOR YBFRAME CONNECTION KIT FOR YB
-
478GH-W2195-00-00 FRAME CONNECTION KIT FOR DPBMCFRAME CONNECTION KIT FOR DPBMC
-
488CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
498FU-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
508FU-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
518FU-2198G-00-00 ...COVER 2...COVER 2
-
528FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
5390267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
5490267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
5590267-48177-00 ...RIVET, BLIND...RIVET, BLIND
-
568GT-21966-00-00 ...PATCH 6 FOR YB...PATCH 6 FOR YB
-
568GT-21966-10-00 ...PATCH 6 FOR DPBMC...PATCH 6 FOR DPBMC
-
578GT-21967-00-00 ...PATCH 7 FOR YB...PATCH 7 FOR YB
-
578GT-21967-10-00 ...PATCH 7 FOR DPBMC...PATCH 7 FOR DPBMC
-
5890267-47197-00 ...RIVET, BLIND FOR DPBMC...RIVET, BLIND FOR DPBMC
-
5890267-47009-00 ...RIVET, BLIND FOR YB...RIVET, BLIND FOR YB
-
5990267-47186-00 ...RIVET, BLIND FOR YB...RIVET, BLIND FOR YB
-
5990267-47195-00 ...RIVET, BLIND FOR DPBMC...RIVET, BLIND FOR DPBMC
-
6090267-47186-00 ...RIVET, BLIND...RIVET, BLIND
-
618FU-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
628FU-21970-01-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
638ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
6495827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
658EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
668FU-2198F-00-00 COVER 1COVER 1
-
678FU-2198J-00-00 COVER 3COVER 3
-
688FU-2195E-01-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
698FU-2195F-01-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
708ES-2196A-20-00 FRAME UNDER 1 FOR DPBMCFRAME UNDER 1 FOR DPBMC
-
708ES-2196A-10-00 FRAME UNDER 1 FOR YBFRAME UNDER 1 FOR YB
-
718FA-2196E-10-00 FRAME, UNDER 2 FOR YBFRAME, UNDER 2 FOR YB
-
718FA-2196E-20-00 FRAME, UNDER 2 FOR DPBMCFRAME, UNDER 2 FOR DPBMC
-
728FA-21972-01-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
738FA-2196F-00-00 BRACKET 3BRACKET 3
-
7490267-48083-00 RIVET, BLINDRIVET, BLIND
-
7590267-48169-00 RIVET, BLINDRIVET, BLIND
-
7690267-48018-00 RIVET, BLINDRIVET, BLIND
-
7790267-47200-00 RIVET, BLINDRIVET, BLIND
-
788FA-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
7995827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
808FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
818FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
828FA-77125-00-00 STAY 1STAY 1
-
8395827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
848FA-21978-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
858FA-2197N-01-00 BRACKET 7BRACKET 7
-
8695827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8790267-48095-00 RIVET, BLINDRIVET, BLIND
-
8890267-47195-00 RIVET, BLINDRIVET, BLIND
-
898FA-2197E-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
9090109-065F3-00 BOLTBOLT
-
9190183-06053-00 NUT, SPRINGNUT, SPRING
-
928FA-21998-00-00 SPACERSPACER
-
938FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9490267-48059-00 RIVET, BLINDRIVET, BLIND
-
958FP-22865-00-00 COVER, FRONTCOVER, FRONT
-
9690150-06015-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
978FJ-2179D-00-00 PLETE, EPA OFFROAD 2PLETE, EPA OFFROAD 2
