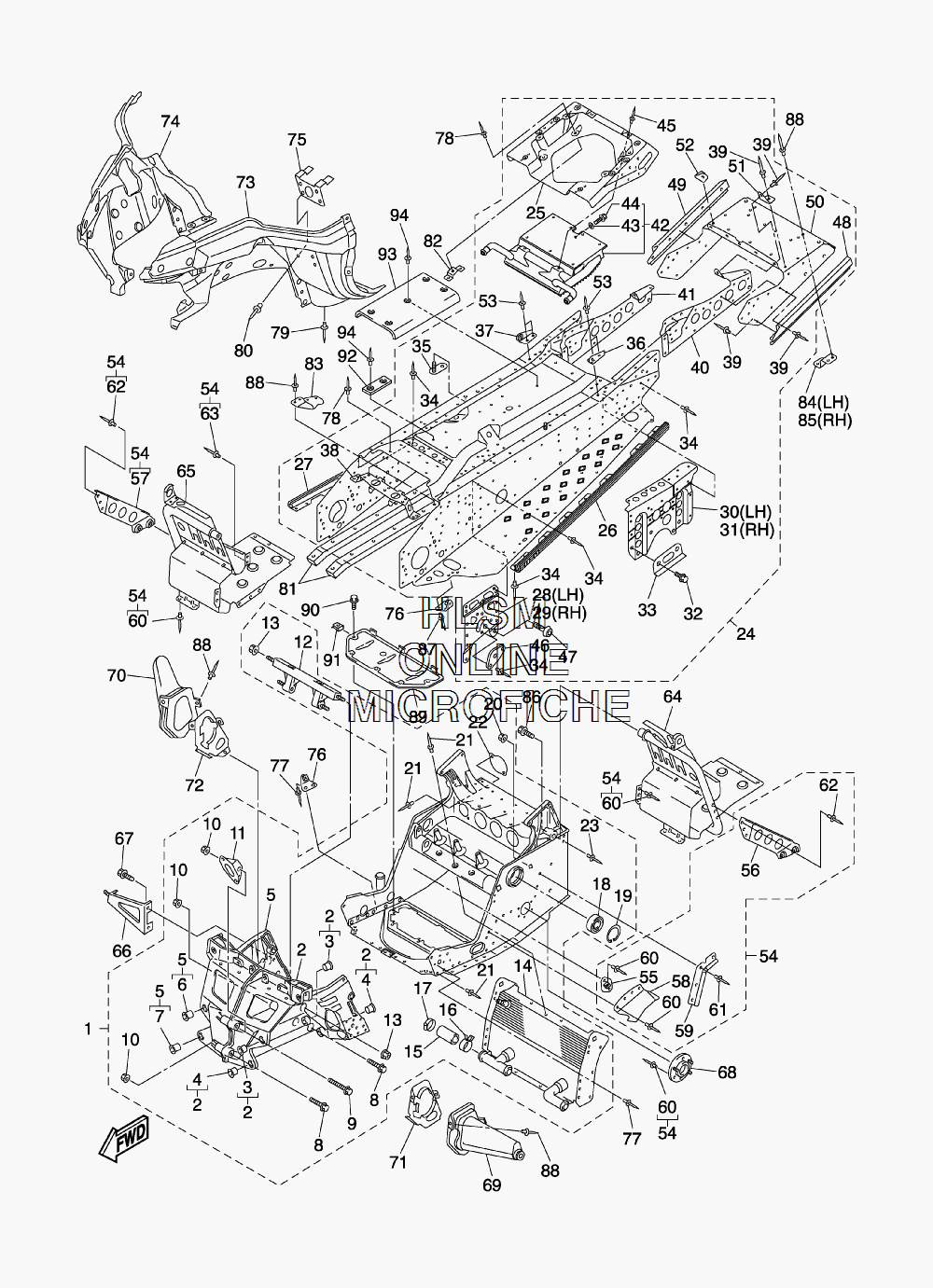

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RAGE - 2007 года выпуска
-
№АртикулНазвание
-
18ES-21940-01-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-11-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
490381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
58FA-W2198-11-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
790381-16001-00 ......BUSH, SOLID......BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118FA-2128A-00-00 ...BRACKET, REGULATOR...BRACKET, REGULATOR
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
148FA-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
158FA-12551-00-00 ...HOSE 7...HOSE 7
-
1690467-28046-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1790450-35001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1893306-20650-00 ...BEARING...BEARING
-
1999009-62500-00 ...CIRCLIP...CIRCLIP
-
2095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2190267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
228ES-2131D-00-00 ...PLATE, COVER...PLATE, COVER
-
2390267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
248FL-21950-20-00 REAR FRAME COMP. (8FL5)REAR FRAME COMP. (8FL5)
-
248GX-21950-00-00 REAR FRAME COMP. (8GX1)REAR FRAME COMP. (8GX1)
-
258FA-W2199-10-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
268FG-21926-00-00 ...REINFORCEMENT, FOOTREST 1 (8FL5)...REINFORCEMENT, FOOTREST 1 (8FL5)
-
268FU-21926-00-00 ...REINFORCEMENT, FOOTREST 1 (8GX1)...REINFORCEMENT, FOOTREST 1 (8GX1)
-
278FG-21936-00-00 ...REINFORCEMENT, FOOTREST 2 (8FL5)...REINFORCEMENT, FOOTREST 2 (8FL5)
-
278FU-21936-00-00 ...REINFORCEMENT, FOOTREST 2 (8GX1)...REINFORCEMENT, FOOTREST 2 (8GX1)
-
288FU-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
298FU-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
308FT-21944-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
318FT-21954-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
3295817-10020-00 ...BOLT, FLANGE (8GX1)...BOLT, FLANGE (8GX1)
-
3295814-10020-00 ...BOLT, FLANGE (8FL5)...BOLT, FLANGE (8FL5)
-
338FU-21988-01-00 ...PATCH 8 (8FL5)...PATCH 8 (8FL5)
-
338FP-21988-00-00 ...PATCH 8 (8GX1)...PATCH 8 (8GX1)
-
3490267-47186-00 ...RIVET, BLIND (QTY:114)...RIVET, BLIND (QTY:114)
-
3490267-47195-00 ...RIVET, BLIND (QTY:114)...RIVET, BLIND (QTY:114)
-
358CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
368FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
378FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
388ES-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3990267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
408FT-21963-00-00 ...PATCH 3...PATCH 3
-
418FT-21964-00-00 ...PATCH 4...PATCH 4
-
428FT-1241A-00-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
4390210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
4495817-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4590267-48095-00 ...RIVET, BLIND...RIVET, BLIND
-
468FU-21919-00-00 ...BRACKET, MAIN TRACK 3 (8FL5)...BRACKET, MAIN TRACK 3 (8FL5)
-
468FP-21919-00-00 ...BRACKET, MAIN TRACK 3 (8GX1)...BRACKET, MAIN TRACK 3 (8GX1)
-
4792017-10020-00 ...BOLT, BUTTON HEAD (8GX1)...BOLT, BUTTON HEAD (8GX1)
-
4792014-10020-00 ...BOLT, BUTTON HEAD (8FL5)...BOLT, BUTTON HEAD (8FL5)
-
488FG-2111J-00-00 ...MEMBER, SIDE 1...MEMBER, SIDE 1
-
498FG-2111K-00-00 ...MEMBER, SIDE 2...MEMBER, SIDE 2
-
508FT-21916-00-00 ...PANEL, SUB FRAME 5...PANEL, SUB FRAME 5
-
518FG-21988-00-00 ...PATCH 8...PATCH 8
-
528FG-21989-00-00 ...PATCH 9...PATCH 9
-
5390267-47197-00 ...RIVET, BLIND...RIVET, BLIND
-
548FK-W2195-10-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
558CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
568FU-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
578FU-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
588FU-2198G-00-00 ...COVER 2...COVER 2
-
598FA-21999-00-00 ...CLAMP, WIREHARNESS...CLAMP, WIREHARNESS
-
6090267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
6190267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
6290267-48177-00 ...RIVET, BLIND...RIVET, BLIND
-
6390267-47186-00 ...RIVET, BLIND...RIVET, BLIND
-
648FU-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
658FU-21970-01-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
668ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
6795827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
688EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
698FU-2198F-00-00 COVER 1COVER 1
-
708FU-2198J-00-00 COVER 3COVER 3
-
718FU-2195E-01-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
728FU-2195F-01-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
738ES-2196A-00-00 FRAME UNDER 1 (8GX1)FRAME UNDER 1 (8GX1)
-
738ES-2196A-20-00 FRAME UNDER 1 (8FL5)FRAME UNDER 1 (8FL5)
-
748FA-2196E-00-00 FRAME, UNDER 2 (8GX1)FRAME, UNDER 2 (8GX1)
-
748FA-2196E-20-00 FRAME, UNDER 2 (8FL5)FRAME, UNDER 2 (8FL5)
-
758FA-21972-01-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
768FA-2196F-00-00 BRACKET 3BRACKET 3
-
7790267-48083-00 RIVET, BLINDRIVET, BLIND
-
7890267-48169-00 RIVET, BLINDRIVET, BLIND
-
7990267-48018-00 RIVET, BLINDRIVET, BLIND
-
8090267-47200-00 RIVET, BLINDRIVET, BLIND
-
818FT-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
828FT-2197N-00-00 BRACKET 7BRACKET 7
-
838FU-2197N-00-00 BRACKET 7BRACKET 7
-
848FT-2196F-00-00 BRACKET 3BRACKET 3
-
858FT-2196G-00-00 BRACKET 4BRACKET 4
-
8695827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8790267-48095-00 RIVET, BLINDRIVET, BLIND
-
8890267-47195-00 RIVET, BLINDRIVET, BLIND
-
898FA-2197E-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
9090109-065F3-00 BOLTBOLT
-
9190183-06053-00 NUT, SPRINGNUT, SPRING
-
928FA-21998-00-00 SPACERSPACER
-
938FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9490267-48059-00 RIVET, BLINDRIVET, BLIND
