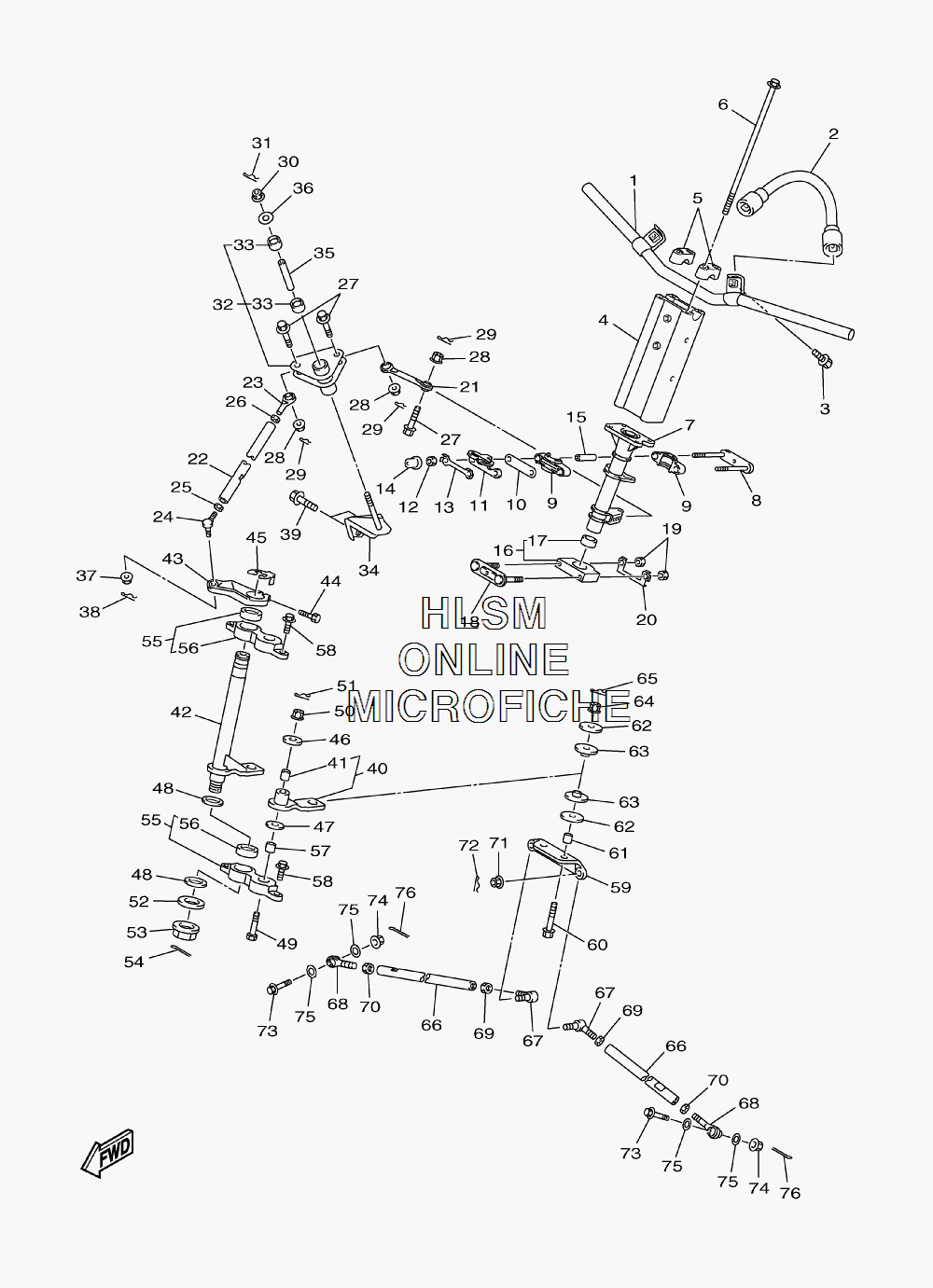

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha PHAZER MTN. LITE - 2007 года выпуска
-
№АртикулНазвание
-
18GP-26111-00-00 HANDLEBARHANDLEBAR
-
28GE-23829-00-00 STRAP, STRGSTRAP, STRG
-
392014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
48GC-2381B-00-00 JOINTJOINT
-
58K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
68GC-23436-00-00 BOLTBOLT
-
78GC-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
88FA-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
98FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
108FA-23867-00-00 HOLDER 2HOLDER 2
-
118GC-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
1295312-08600-00 NUTNUT
-
131UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
148GC-82532-00-00 CAPCAP
-
1590387-09006-00 COLLARCOLLAR
-
168GC-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
1793315-42536-00 ...BEARING, CYL.#15...BEARING, CYL.#15
-
188GJ-23857-00-00 HOLDERHOLDER
-
1995312-08600-00 NUTNUT
-
208GJ-23894-00-00 WASHER, LOCK 1WASHER, LOCK 1
-
218GC-23828-00-00 ROD, STEERINGROD, STEERING
-
228GC-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
238GC-23841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
248CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2595302-10700-00 NUTNUT
-
2690170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
2790105-08321-00 BOLT, FLANGEBOLT, FLANGE
-
2895702-08500-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
2990468-16001-00 CLIPCLIP
-
3095702-10500-00 NUT, FLANGENUT, FLANGE
-
3190468-18189-00 CLIPCLIP
-
328GC-2384E-00-00 ARM, CONTROL 1ARM, CONTROL 1
-
3393317-41767-00 ...BEARING...BEARING
-
348GC-23881-00-00 BRACKET 1BRACKET 1
-
358GC-23846-00-00 SHAFT, PITMANSHAFT, PITMAN
-
3690201-121U3-00 WASHER, PLATEWASHER, PLATE
-
3795702-10500-00 NUT, WITH WASHERNUT, WITH WASHER
-
3891402-25020-00 PIN, COTTERPIN, COTTER
-
3995812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
408GC-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
418GC-23526-00-00 ...BUSH...BUSH
-
428GC-2389M-00-00 PIVOT ARM ASSY 2PIVOT ARM ASSY 2
-
438GC-2381A-00-00 ARM, INSIDEARM, INSIDE
-
4491312-08025-00 BOLTBOLT
-
458GC-23183-00-00 CIRCLIPCIRCLIP
-
4690201-124G7-00 WASHER, PLATEWASHER, PLATE
-
4790201-25291-00 WASHER, PLATEWASHER, PLATE
-
4890201-256E4-00 WASHER, PLATE (T=1.5)WASHER, PLATE (T=1.5)
-
498GC-23346-00-00 BOLT 1BOLT 1
-
5095702-12500-00 NUT, WITH WASHERNUT, WITH WASHER
-
5190468-12006-00 CLIPCLIP
-
5290201-220T0-00 WASHER, PLATEWASHER, PLATE
-
5390179-22412-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
5491402-20035-00 PIN, COTTERPIN, COTTER
-
558GC-2389H-00-00 BRACKET, PIVOTBRACKET, PIVOT
-
5693315-42536-00 ...BEARING, CYL.#15...BEARING, CYL.#15
-
578GC-23113-00-00 COLLARCOLLAR
-
5895822-10025-00 BOLT, FLANGEBOLT, FLANGE
-
598GC-23826-00-00 ARM, IDLERARM, IDLER
-
6090105-10728-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6190387-10008-00 COLLARCOLLAR
-
6290201-100S2-00 WASHER, PLATEWASHER, PLATE
-
638GC-23362-00-00 BUSH 1BUSH 1
-
6495702-10500-00 NUT, WITH WASHERNUT, WITH WASHER
-
6590468-18189-00 CLIPCLIP
-
668GP-23831-00-00 ROD, TIEROD, TIE
-
678CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
688GC-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
6995302-10700-00 NUTNUT
-
7090170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
7195702-10500-00 NUT, WITH WASHERNUT, WITH WASHER
-
7290468-18189-00 CLIPCLIP
-
738GC-23493-00-00 BOLTBOLT
-
7495702-08500-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
7590201-06018-00 WASHER, PLATEWASHER, PLATE
-
7691402-20020-00 PIN, COTTERPIN, COTTER
