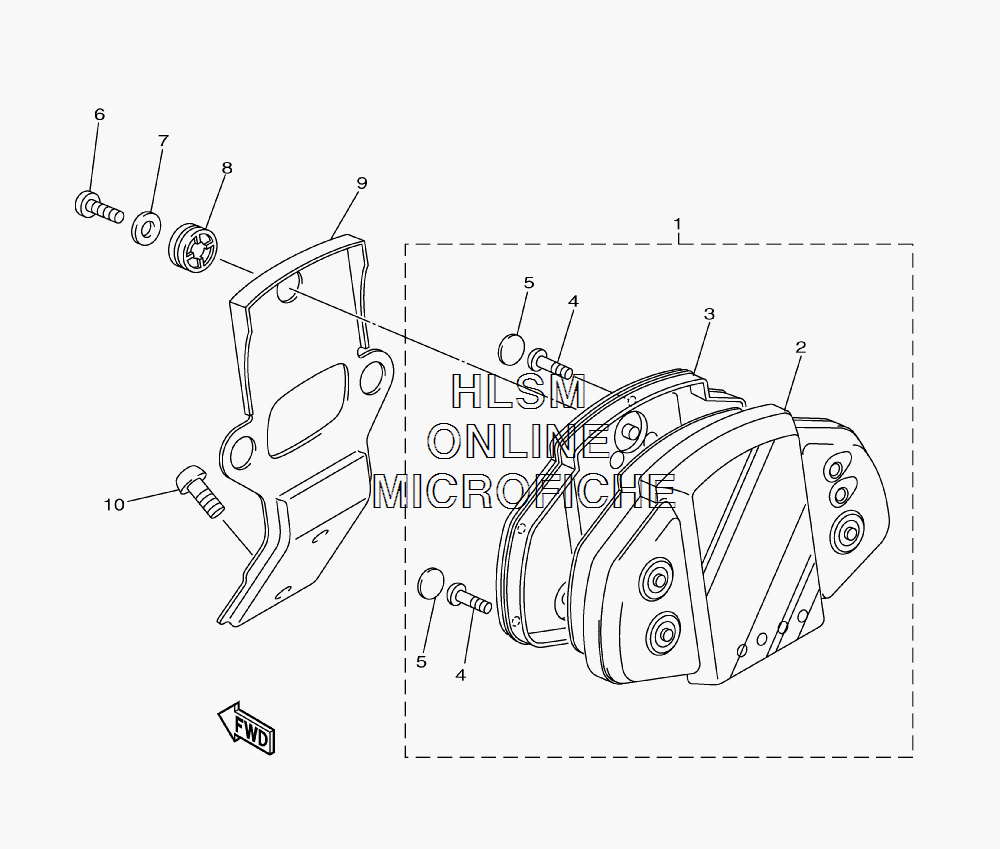

ELECTRICAL - INSTRUMENTS для Yamaha PHAZER GT - 2007 года выпуска`
-
№АртикулНазвание
-
18GK-83500-00-00 SPEEDOMETER COMPLETE (MPH)SPEEDOMETER COMPLETE (MPH)
-
28GK-8353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
38GC-83572-00-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
45PW-8352S-00-00 ...SCREW, PANEL FTTING...SCREW, PANEL FTTING
-
58GC-21732-00-00 ...SEAL 1...SEAL 1
-
697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
790201-05725-00 WASHER, PLATEWASHER, PLATE
-
88GC-83513-00-00 DAMPERDAMPER
-
98GC-83519-00-00 BRACKET, METERBRACKET, METER
-
1092012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
