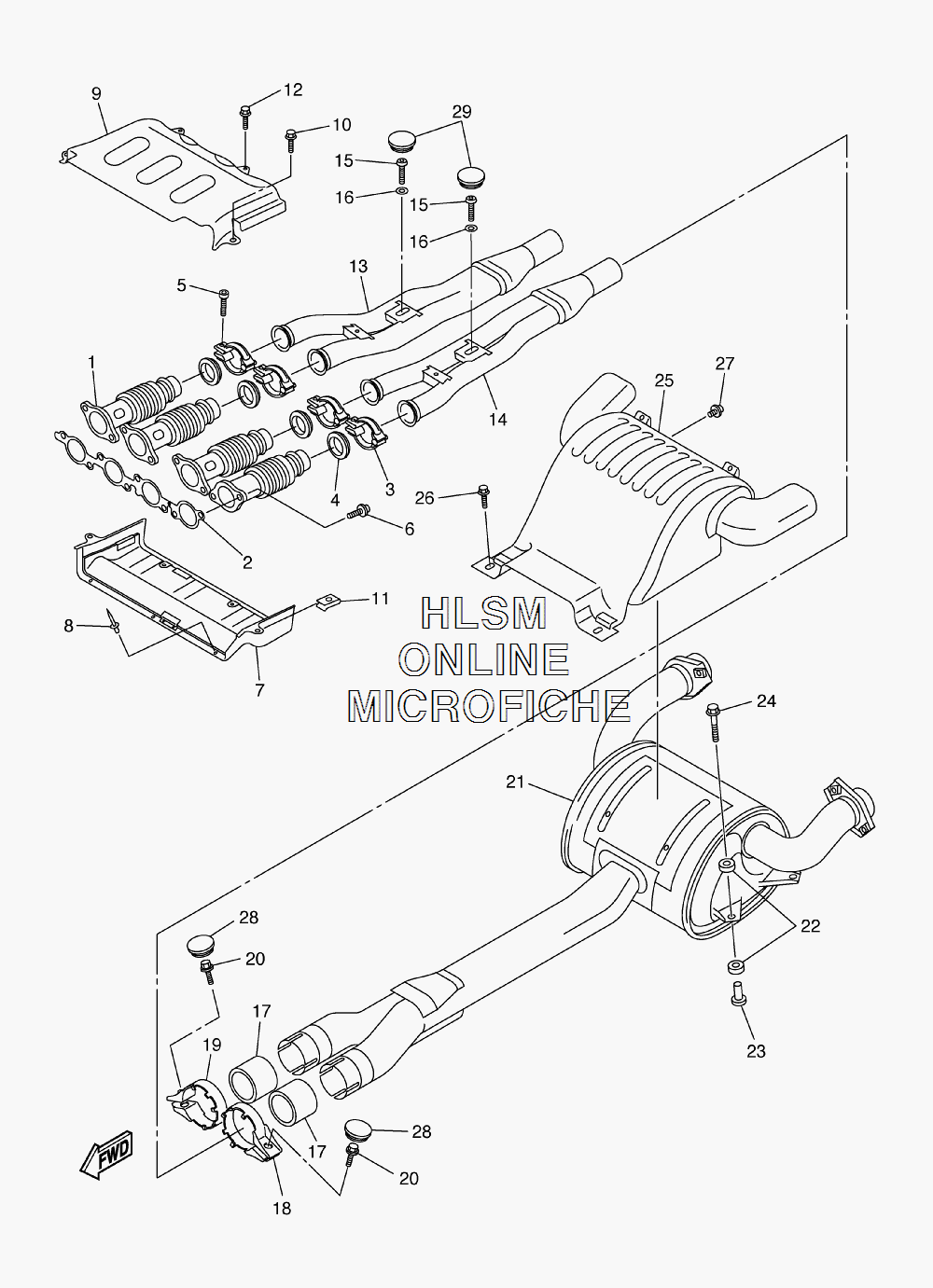

EXHAUST SYSTEM для Yamaha ATTAK - 2007 года выпуска`
-
№АртикулНазвание
-
18FU-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
28FA-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
38FA-14715-00-00 BAND, MUFFLERBAND, MUFFLER
-
48FA-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
591317-06030-00 BOLT, HEX SKT HEADBOLT, HEX SKT HEAD
-
695027-08020-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
78FU-14627-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
890267-47195-00 RIVET, BLINDRIVET, BLIND
-
98FP-14637-00-00 EXHAUST COVER ASS'YEXHAUST COVER ASS'Y
-
1095817-06008-00 BOLT, FLANGEBOLT, FLANGE
-
1190183-060A0-00 NUT, SPRINGNUT, SPRING
-
1295817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
138FP-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
148FP-14620-00-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
1592017-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1692990-08200-00 WASHER, PLAINWASHER, PLAIN
-
178FA-14714-10-00 GASKET, MUFFLERGASKET, MUFFLER
-
188FA-14788-00-00 BAND, SILENCERBAND, SILENCER
-
198FA-14789-00-00 BAND, SILENCERBAND, SILENCER
-
2095817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
218FP-14750-00-00 SILENCER ASSYSILENCER ASSY
-
228FA-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2390387-08071-00 COLLARCOLLAR
-
2490119-08062-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
258FP-14708-00-00 PROTECTOR ASSYPROTECTOR ASSY
-
2690119-06170-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2795817-06008-00 BOLT, FLANGEBOLT, FLANGE
-
2890338-20004-00 PLUGPLUG
-
2990338-20007-00 PLUGPLUG
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- • EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS
- THROTTLE BODY ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
