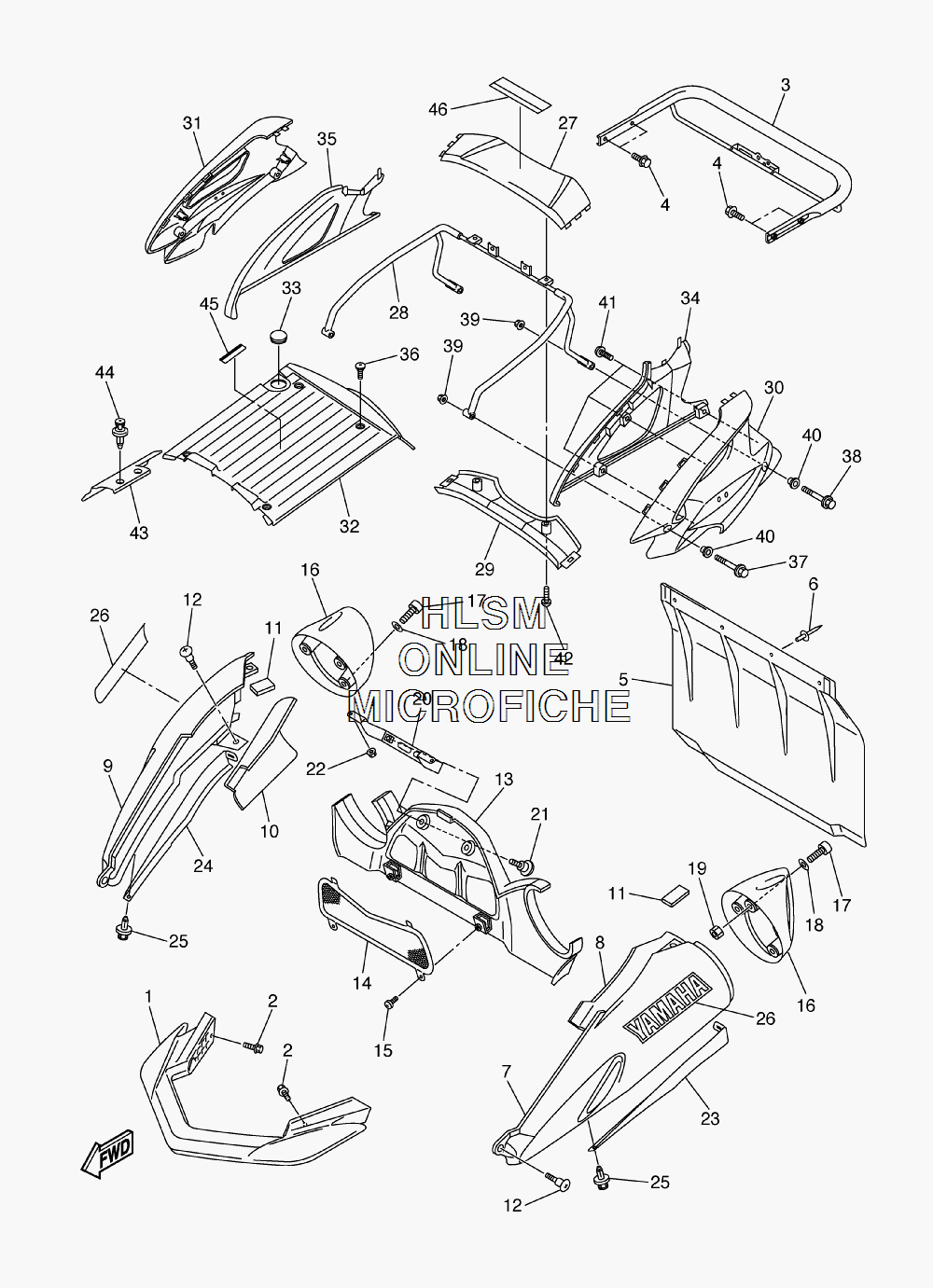

BUMPER - FRONT AND REAR для Yamaha APEX MOUNTAIN - 2007 года выпуска`
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295807-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38FS-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
495827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
58ED-K7595-01-00 FLAP, BLACKFLAP, BLACK
-
690267-47200-00 RIVET, BLINDRIVET, BLIND
-
78FP-77551-00-P0 PROTECTOR 1 (DRMK)PROTECTOR 1 (DRMK)
-
78FP-77551-00-P2 PROTECTOR 1 (SILVER)PROTECTOR 1 (SILVER)
-
88FP-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
98FP-77552-00-P0 PROTECTOR 2 (DRMK)PROTECTOR 2 (DRMK)
-
98FP-77552-00-P2 PROTECTOR 2 (SILVER)PROTECTOR 2 (SILVER)
-
108FP-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
118FP-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
1290154-06009-00 SCREW, BINDINGSCREW, BINDING
-
138FS-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
148FS-77441-00-00 LOUVER 1LOUVER 1
-
1597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
168FS-77517-00-00 CAPCAP
-
1791314-06020-00 BOLTBOLT
-
1892990-06200-00 WASHER, PLAINWASHER, PLAIN
-
1995380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
208FS-77533-00-00 BRACKET, REAR (L.H)BRACKET, REAR (L.H)
-
2190154-06009-00 SCREW, BINDINGSCREW, BINDING
-
2295607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
238FS-77556-00-00 PROTECTOR 6PROTECTOR 6
-
248FS-77557-00-00 PROTECTOR 7PROTECTOR 7
-
2590269-06081-00 RIVETRIVET
-
2699244-00140-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
278FS-2471K-00-00 COVER, TAIL 1COVER, TAIL 1
-
288FS-24716-00-00 STAY, REARSTAY, REAR
-
298FS-2472K-00-00 COVER, TAIL 2COVER, TAIL 2
-
308FS-2474R-00-00 STAY, LH.STAY, LH.
-
318FS-2474T-00-00 STAY, RH.STAY, RH.
-
328FS-24756-00-00 COVER, TAILCOVER, TAIL
-
3390338-44019-00 PLUGPLUG
-
348FS-24796-00-00 COVERCOVER
-
358FS-2475X-00-00 COVER,2COVER,2
-
3690154-06009-00 SCREW, BINDINGSCREW, BINDING
-
3795827-08045-00 BOLT, FLANGEBOLT, FLANGE
-
3895827-08055-00 BOLT, FLANGEBOLT, FLANGE
-
3995607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4090560-08251-00 SPACERSPACER
-
4190167-05077-00 SCREW, TAPPINGSCREW, TAPPING
-
4297707-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
438FS-2471P-00-00 PLATE, COVERPLATE, COVER
-
4490269-06081-00 RIVETRIVET
-
458ET-24897-00-00 EMBLEMEMBLEM
-
468FS-24875-E0-00 LABEL 1LABEL 1
